Parts for 150 EFI Pro Max / Super Mag 2-Stroke EFI Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 150 EFI Pro Max / Super Mag > 0D935000 - 0G610049 - USA > Crankshaft, Pistons & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

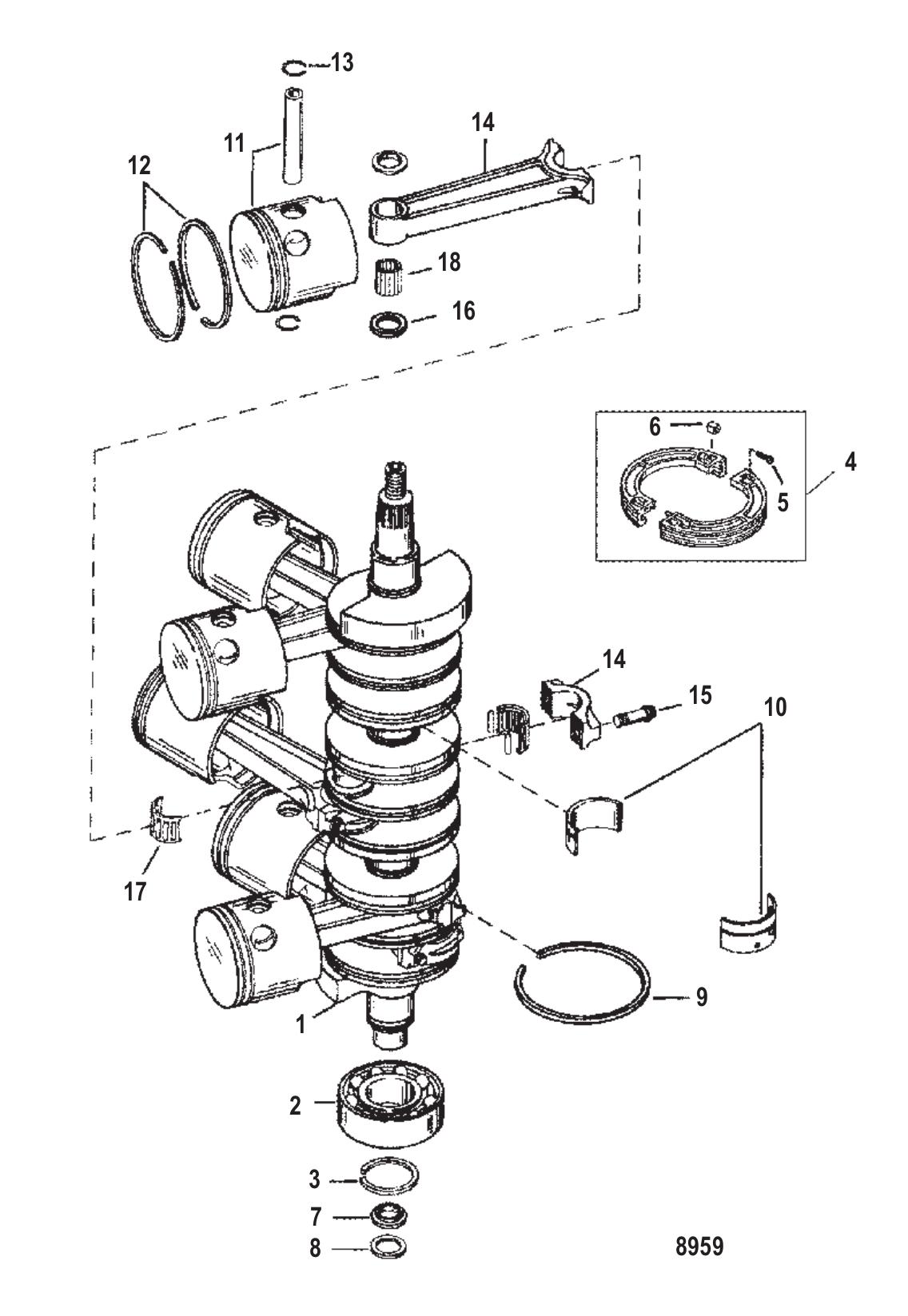

Crankshaft, Pistons & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	823142A94	GASKET SET (1 required per assembly)
		27-823142A94 - Gasket Set [ More info ] $225.49 Available to Order: Shipping delay up to 10 days.
#-	809839T94	PH 150 EFI (150) (1 required per assembly) — Replaces: 809839A94
		809839T94 - Powerhead 150 Efi [ More info ] Unavailable
#-	808603T94	PH 200 EFI PRO (200) (1 required per assembly) — Replaces: 808603A94
		808603T94 - PH 200 EFI PRO,NLA [ More info ] Unavailable
#1	9536T4	CRANKSHAFT ASSY [0G502499] & Below (1 required per assembly) — Replaces: 9536A4
		455-9536T 4 - CrankShaft Assembly [ More info ] Unavailable
#1	850690T1	CRANKSHAFT ASSY [0G502500] & Up (1 required per assembly) — Replaces: 850690A1
		455-850690T 1 - CrankShaft Assembly, NLA [ More info ] Unavailable
#2	67923T	BEARING BALL (LOWER) (1 required per assembly) — Replaces: 67923
		30-67923T - Ball Bearing [ More info ] $69.49 Available to Order: Shipping delay up to 10 days.
#3	67446	RING (1 required per assembly)
		53-67446 - Ring - Retaining [ More info ] $3.69 4 In Stock.
#4	14513A09	GEAR SEGMENT KIT DRIVE (1 required per assembly) — Replaces: 14513A2
		43-14513A09 - Drive Gear Assembly [ More info ] $103.99 Available to Order: Shipping delay up to 10 days.
#5	813073	SCREW (#6-32 X .620) SOCKET HEAD (2 required per assembly)
		10-813073 - Screw [ More info ] Unavailable
#6	813134	NUT (#6-32) SPECIAL (2 required per assembly)
		11-813134 - Nut, (#6-32) [ More info ] Unavailable
#7	54196A6	CARRIER ASSEMBLY (1 required per assembly)
		54196A 6 - Carrier Assembly [ More info ] $22.53 1 In Stock.
#8	65800	PACKING (1 required per assembly)
		65800 - Packing [ More info ] $4.59 10+ In Stock.
#9	67377T	RING SEALING (7 required per assembly) — Replaces: 67377
		39-67377T - Seal Ring - Priced Individually [ More info ] $15.89 Available to Order: Shipping delay up to 10 days.
#10	16756A6	BEARING KIT (2 required per assembly)
		31-16756A 6 - Bearing Kit [ More info ] $93.49 Available to Order: Shipping delay up to 10 days.
#11	9738T10	PISTON-STBD-.015 (STARBOARD-.015 O.S.) (AR required per assembly) — Replaces: 9738A10
		785-9738T10 - Piston - Stbd - .015 [ More info ] $226.49 Available to Order: Shipping delay up to 10 days.
#11	9737T9	PISTON ASSY-PORT (PORT-STANDARD) (3 required per assembly) — Replaces: 9737A9
		785-9737T 9 - Piston Assembly - Port [ More info ] $183.99 Available to Order: Shipping delay up to 10 days.
#11	9737A10	PISTON-PORT-.015 (PORT-.015 O.S.) (AR required per assembly)
		785-9737A10 - Piston - Port - .015 [ More info ] Unavailable
#11	9738T9	PISTON ASSY-STBD (STARBOARD-STANDARD) (3 required per assembly) — Replaces: 9738A9
		785-9738T 9 - Piston Assembly - Stbd [ More info ] $188.41 1 In Stock.
#12	822321A12	RING KIT PISTON - STANDARD (Standard) (1 required per assembly)
		39-822321A12 - Rings - Standard [ More info ] $379.99 Available to Order: Shipping delay up to 10 days.
		18-3982 - Piston Rings, 39-822321A12 [ More info ] $46.99 $46.72 1 In Stock.
#12	822321A1	RING KIT PISTON - .015 OVERSIZE (.015 O.S.) (2 required per assembly)
		39-822321A 1 - Rings - .015 [ More info ] $379.80 6 In Stock.
#13	857196	LOCK RING (12 required per assembly) — Replaces: 52035
		53-857196 - Lock Ring - Priced Individually [ More info ] $3.39 $2.72 10+ In Stock.
#14	8M0081411	CONN ROD ASSY (6 required per assembly)
		6448M0081411 - Connecting Rod Assembly [ More info ] $378.27 Available to Order: Shipping delay up to 10 days.
#15	763491	SCREW (.312-24 X .875) (12 required per assembly)
		0763491 - Speedometer Cap/Jumper (763491) [ More info ] $17.11 Available to Order: Shipping delay up to 10 days.
#16	8M0012298	THRUST WASHER (12 required per assembly) — Replaces: 812876
		12-8M0012298 - Thrust Washer [ More info ] $5.29 6 In Stock.
#17	8M0082405	BEARING KIT (6 required per assembly)
		318M0082405 - Bearing Assembly [ More info ] $129.78 Available to Order: Shipping delay up to 10 days.
#18	8M0204691	BRG-NEEDLE @200 (174 required per assembly) — Replaces: 822553
		298M0204691 - Bearing needle [ More info ] $0.60 10+ In Stock.
