Parts for 3.0L DSI (Diesel Spark Ignition) 2-Stroke DFI Mercury Optimax Outboard Motor Pcm Mounting

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 3.0L DSI (Diesel Spark Ignition) > 1E052967 & Up > Pcm Mounting

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

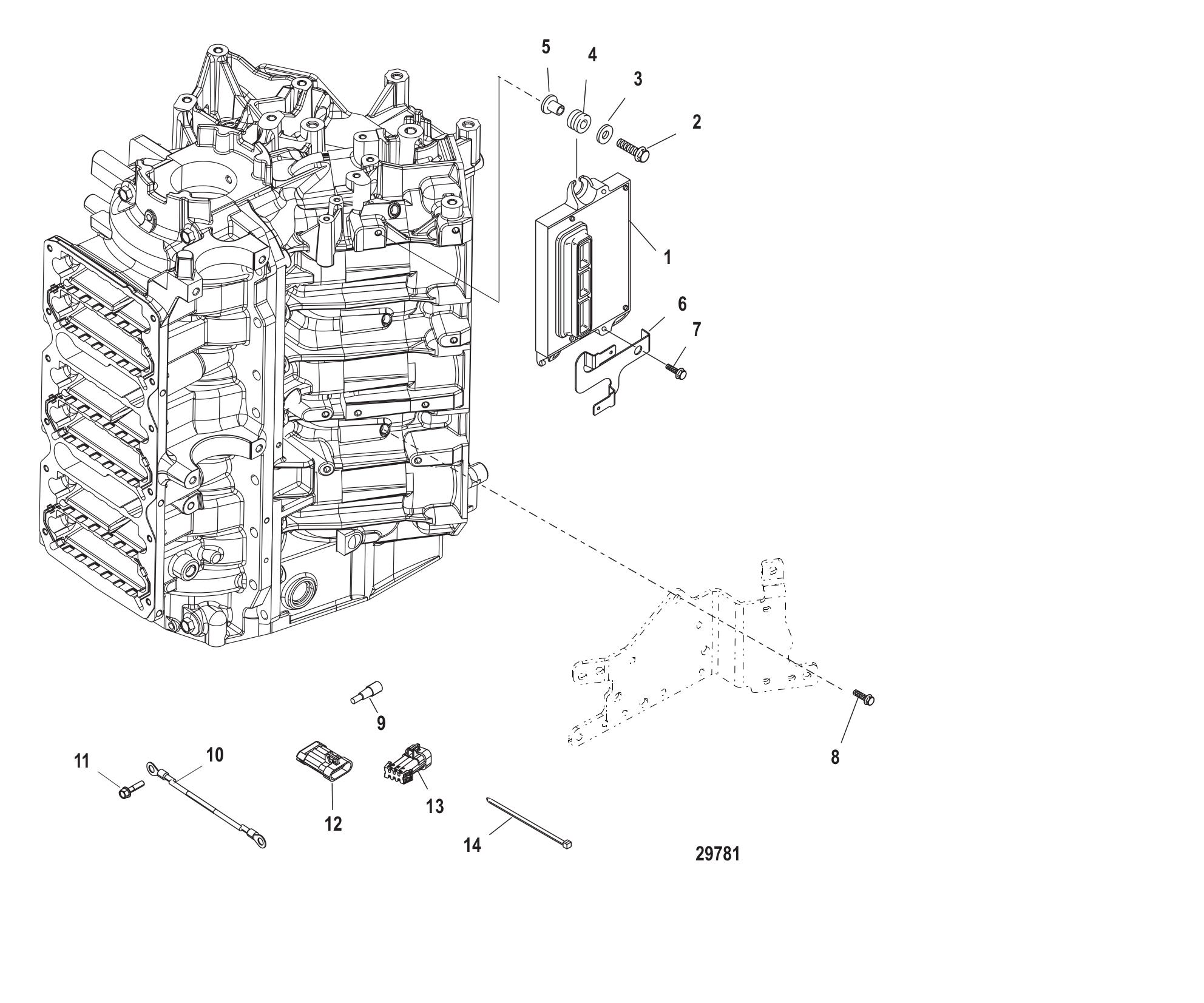

Pcm Mounting

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0122060	PCM (1 required per assembly)
		778M0122060 - PCM [ More info ] Unavailable
#2	82130025	SCREW @5 (3 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#3	65567	WASHER @2 (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#4	834985	GROMMET @5 (3 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#5	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#6	891520001	CLIP (1 required per assembly)
		54-891520001 - Clip [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#7	82129114	SCREW (1 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#8	82130012	SCREW @5 (4 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 5 In Stock.
#9	13541	PLUG (1 required per assembly)
		13541 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#10	88439A26	CABLE ASSY-NEG (1 required per assembly)
		84-88439A26 - Cable Assembly -neg [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
#11	81893420	SCREW (1 required per assembly)
		10-818934 20 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#12	830796A04	CONNECTOR KIT (1 required per assembly)
		830796A04 - Connector Kit [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#13	877613A02	CONNECTOR (1 required per assembly)
		877613A02 - Connector [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#14	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
