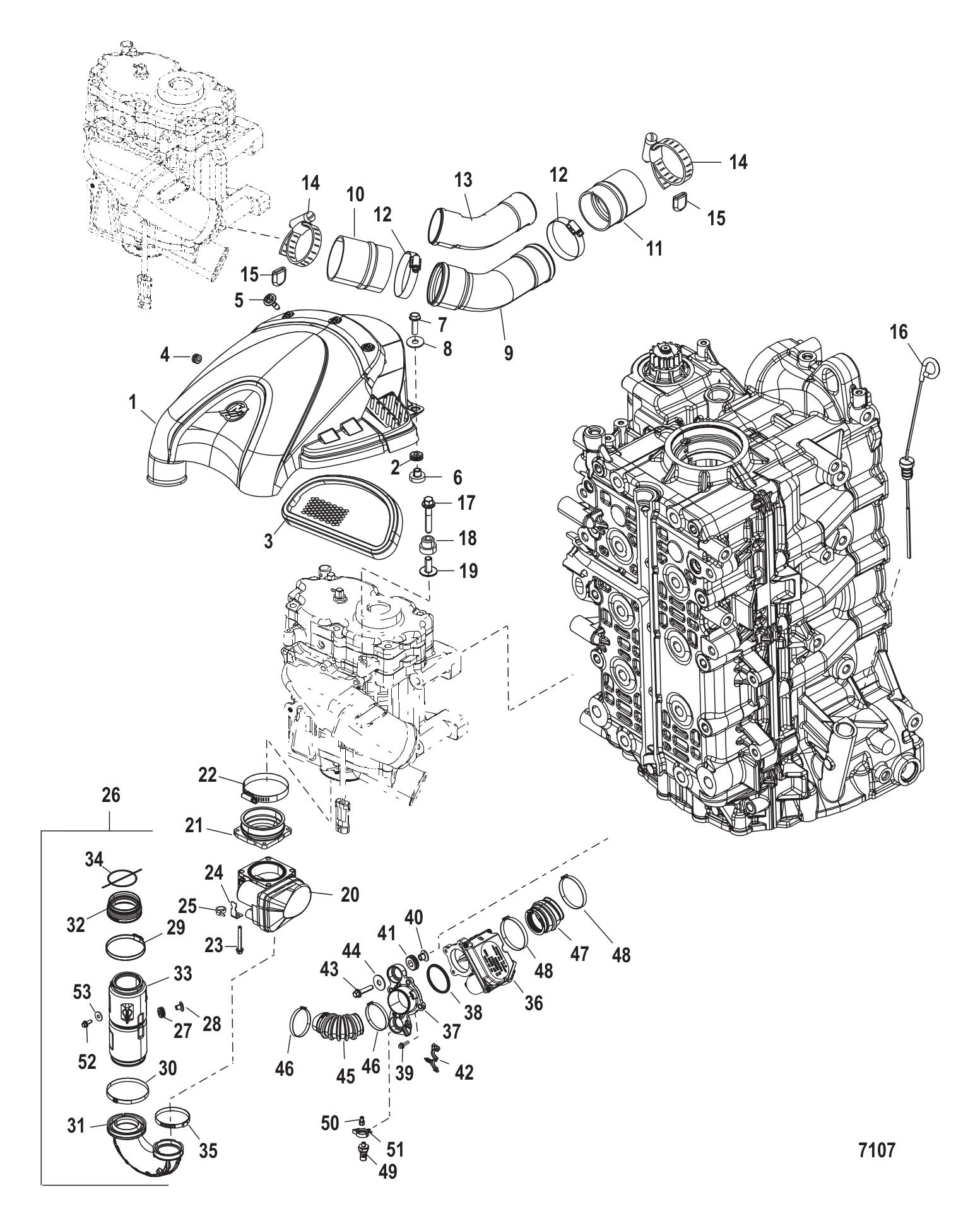

Parts for 150 HP EFI Verado 4 Cyl 4-Stroke Mercury Outboard Motor Induction Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 896246A04 | INTAKE ASSY (1 required per assembly) — Replaces: 896246T02 |
  |
|
896246A04 - Intake Assembly [ More info ]
|
| #2 | 8349851 | GROMMET (2 required per assembly) |
  |
|
25-834985 1 - Grommet [ More info ]
|
| #3 | 896247 | FILTER (1 required per assembly) |
  |
|
35-896247 - Air Filter [ More info ]
|
| #4 | 20116 | GROMMET FUEL VENT HOSE (1 required per assembly) |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|
| #5 | 897703 | SCREW (3 required per assembly) |
  |
|
10-897703 - Screw - Priced Individually [ More info ]
|
| #6 | 826618 | BUSHING (2 required per assembly) |
  |
|
23-826618 - Bushing - Priced Individually [ More info ]
|
| #7 | 40011129 | SCREW (2 required per assembly) |
  |
|
10-40011129 - Screw [ More info ]
|
| #8 | 65567 | WASHER @2 (2 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #9 | 8M0035481 | TUBE ASSY (1 required per assembly) — Replaces: 893307A01 |
  |
|
8M0035481 - Tube Assembly [ More info ]
|
| #10 | 8M0035481 | TUBE ASSEMBLY HOT AIR DUCT (1 required per assembly) — Replaces: 893389 |
| #11 | 8M0035481 | TUBE ASSEMBLY HOT AIR DUCT (1 required per assembly) — Replaces: 893390 |
| #12 | 893342 | CLAMP (2 required per assembly) |
  |
|
54-893342 - Clamp [ More info ]
|
| #13 | 8M0035481 | TUBE ASSEMBLY HOT AIR DUCT (1 required per assembly) — Replaces: 893391 |
| #14 | 893342 | CLAMP (2 required per assembly) |
| #15 | 8M0074364 | CAP HOSE CLAMP END (2 required per assembly) — Replaces: 8079923, 8M6500037 |
  |
|
198M0074364 - Cover-Clamp - Priced Individually [ More info ]
|
| #16 | 898022 | DIPSTICK (1 required per assembly) |
  |
|
898022 - Dipstick [ More info ]
|
| #17 | 8M0103808 | SCREW @2 (1 required per assembly) — Replaces: 88552530 |
  |
|
108M0103808 - Screw (M6 x 30 MM) Stai [ More info ]
|
| #18 | 813644002 | GROMMET-OIL TANK (1 required per assembly) |
  |
|
25-813644002 - Grommet - Oil Tank [ More info ]
|
| #19 | 898445 | BUSHING (1 required per assembly) |
  |
|
23-898445 - Bushing [ More info ]
|
| #20 | 892949T02 | ETC INDUCTION ASY (1 required per assembly) |
  |
|
892949T02 - Etc Induction Assembly [ More info ]
|
| #21 | 892950T02 | ISOLATOR (1 required per assembly) |
  |
|
892950T02 - Isolator [ More info ]
|
| #22 | 815504244 | CLAMP WORM GEAR (1 required per assembly) |
  |
|
54-815504244 - Clamp [ More info ]
|
| #23 | 88552550 | SCREW (M6 X 50 MM) STAINLESS STEEL (4 required per assembly) |
  |
|
10-885525 50 - Screw - Priced Individually [ More info ]
|
| #24 | 884353 | BRACKET (2 required per assembly) |
  |
|
884353 - Bracket [ More info ]
|
| #25 | 816311T | TIE STRAP @100 (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #26 | 892383T51 | INTAKE ASSY (1 required per assembly) |
  |
|
892383T51 - Intake Assembly [ More info ]
|
| #27 | 8349851 | GROMMET (1 required per assembly) |
| #28 | 856954 | BUSHING (1 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #29 | 888988026 | CLAMP (1 required per assembly) |
  |
|
54-888988026 - Clamp [ More info ]
|
| #30 | 888988027 | CLAMP (1 required per assembly) |
  |
|
54-888988027 - Clamp [ More info ]
|
| #31 | 892383T51 | INTAKE ASSEMBLY LOWER (1 required per assembly) — Replaces: 896245001 |
| #32 | 896244 | COUPLER (1 required per assembly) |
  |
|
896244 - Coupler [ More info ]
|
| #33 | NSS | NOT SOLD SEPARATE RESONATOR (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #34 | 896532 | SPRING (1 required per assembly) |
  |
|
24-896532 - SPRING,NLA [ More info ] Unavailable |
| #35 | 889691 | CLAMP (1 required per assembly) |
  |
|
54-889691 - Clamp [ More info ]
|
| #36 | 884408A08 | CONTROL VALVE KIT (1 required per assembly) — Replaces: 884408A07 |
  |
|
884408A08 - Control Valve Kit [ More info ]
|
| #37 | 887939007 | PLATE BOOST VALVE MOUNTING (1 required per assembly) |
  |
|
887939007 - Plate [ More info ]
|
| #38 | 892079 | O-RING (1 required per assembly) |
  |
|
25-892079 - O-ring, Boost Pump [ More info ]
|
| #39 | 8M0103806 | SCREW (M6 X 20 MM) STAINLESS STEEL (4 required per assembly) — Replaces: 88552520 |
  |
|
108M0103806 - Screw - Priced Individually [ More info ]
|
| #40 | 8502341 | BUSHING (2 required per assembly) |
  |
|
23-850234 1 - Bushing [ More info ]
|
| #41 | 833155 | GROMMET (2 required per assembly) |
  |
|
25-833155 - Grommet [ More info ]
|
| #42 | 859376 | CLIP (1 required per assembly) |
  |
|
54-859376 - Clip [ More info ]
|
| #43 | 8M0103814 | SCREW @2 (2 required per assembly) — Replaces: 88552635 |
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #44 | 817274 | WASHER (2 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #45 | 892947001 | HOSE (1 required per assembly) — Replaces: 892947 |
  |
|
32-892947001 - Hose [ More info ]
|
| #46 | 888988002 | CLAMP (57.5 MM) FRONT ELECTRONIC BOOST CONTROL (2 required per assembly) |
  |
|
54-888988002 - Clamp [ More info ]
|
| #47 | 887938003 | HOSE (1 required per assembly) |
  |
|
32-887938003 - Hose [ More info ]
|
| #48 | 888988004 | CLAMP (62.0 MM) REAR ELECTRONIC BOOST CONTROL (2 required per assembly) |
  |
|
54-888988004 - Clamp [ More info ]
|
| #49 | 881879T25 | SESNOR-PITOT (1 required per assembly) — Replaces: 881879A16 |
  |
|
881879T25 - Sensor - Pitot [ More info ]
|
| #50 | 8M0207782 | SPACER (1 required per assembly) — Replaces: 892403 |
  |
|
22-8M0207782 - SPACER [ More info ] Unavailable |
| #51 | 883066 | CLIP (.865) (1 required per assembly) |
  |
|
54-883066 - Clip [ More info ]
|
| #52 | 8M0103807 | SCREW @2 (1 required per assembly) — Replaces: 88552525 |
  |
|
108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ]
|
| #53 | 65567 | WASHER @2 (1 required per assembly) |
