Parts for 15 HP Carb Seapro 4-Stroke Mercury Outboard Motor Intake Valve & Exhaust Valve

Revise Search: Outboard > 4-Stroke Mercury Outboard > 15 HP Carb Seapro > 0R123565 & Up > Intake Valve & Exhaust Valve

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

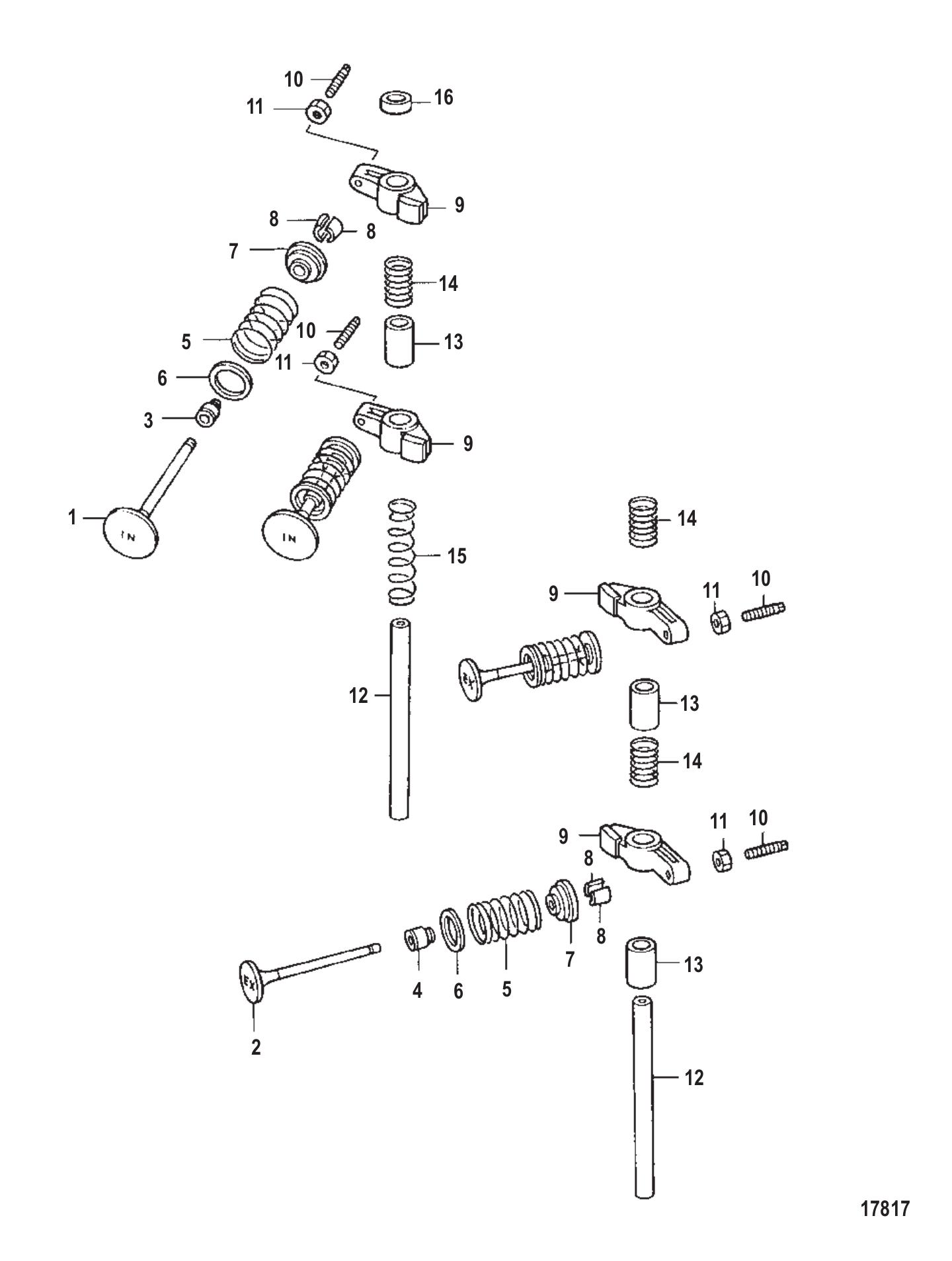

Intake Valve & Exhaust Valve

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	895274A06	POWERHEAD (1 required per assembly)
		895274A06 - Powerhead [ More info ] Unavailable
#1	850838T02	ORDER 8M0079161 (2 required per assembly)
		850838T02 - Intake Valve [ More info ] Unavailable
#2	8M0079162	KIT, EXHAUST VALV (2 required per assembly) — Replaces: 850839T02
		8M0079162 - Exhaust Valve Kit [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#3	822647001	SEAL @2 (2 required per assembly)
		26-822647001 - Seal - Priced Individually [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#4	822647002	SEAL @2 (2 required per assembly)
		26-822647002 - Seal - Priced Individually [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#5	898101214	SPRING-VALVE (4 required per assembly) — Replaces: 8035544
		24-898101214 - Valve Spring [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#6	8M0158660	SEAT VALVE SPRING (4 required per assembly) — Replaces: 803598
		8M0158660 - SEAT VALVE SPRING [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#7	8M0152418	RETAINER KEEPER (4 required per assembly) — Replaces: 803555
		8M0152418 - Retainer KEEPER [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#8	8M0152418	RETAINER KEEPER (8 required per assembly) — Replaces: 803556
#9	850841003	ROCKER ARM (4 required per assembly)
		850841003 - ARM Rocker [ More info ] Unavailable
#10	825046001	SCREW-ADJ. (4 required per assembly)
		10-825046001 - Screw -adj. [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#11	826150001	NUT (4 required per assembly)
		11-826150001 - Nut, Adjusting [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#12	850842001	SHAFT-ROCKER ARM (2 required per assembly)
		850842001 - Shaft - Rocker Arm [ More info ] $25.08 Available to Order: Shipping delay up to 10 days.
#13	825451001	COLLAR (3 required per assembly)
		825451001 - Collar [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#14	825452002	SPRING (3 required per assembly)
		24-825452002 - Spring [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#15	825453001	SPRING (1 required per assembly)
		24-825453001 - Spring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#16	895118001	WASHER (1 required per assembly)
		12-895118001 - Washer [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
