Parts for 15 HP Carb Seapro 4-Stroke Mercury Outboard Motor Gear Housing Driveshaft

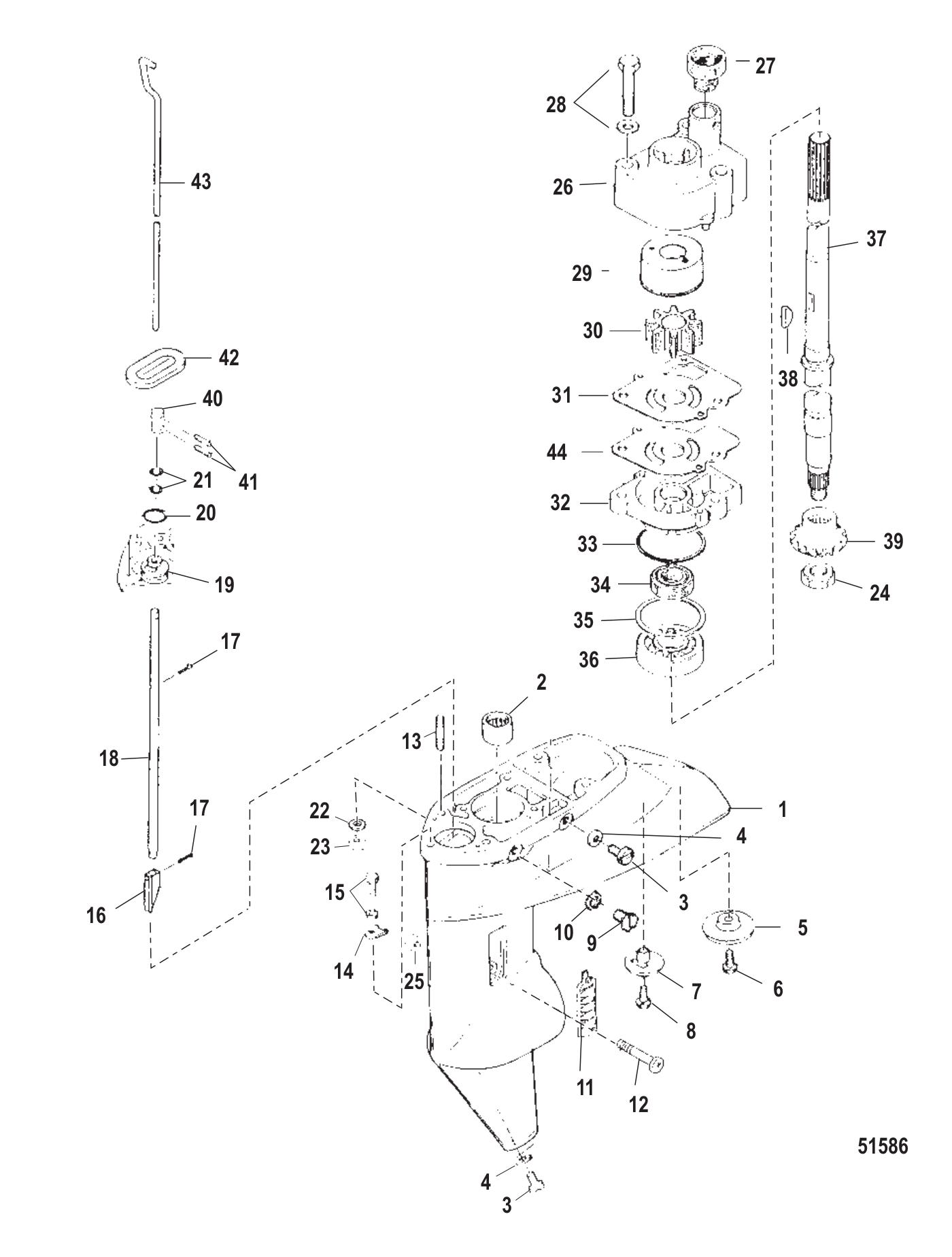

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 803729A10 | GEAR HSG. COMP LG Long (1 required per assembly) |
  |
|
1668-803729A10 - Gear Housing Assembly [ More info ]
|
| #- | 803729A09 | GEAR HSG. COMP SH Short (1 required per assembly) |
  |
|
1668-803729A09 - Gear Housing Assembly [ More info ]
|
| #- | 8M0075042 | GASKET SET (1 required per assembly) — Replaces: 803728A99, 803728A02 |
  |
|
27-8M0075042 - 27-8M0075042 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0082884 |
  |
|
278M0082884 - Gasket Set [ More info ]
|
| #- | 8M0070780 | REPAIR KIT-PUMP (1 required per assembly) — Replaces: 853792A4, 853792T04 |
  |
|
468M0070780 - Pump Repair Kit [ More info ]
|
| #- | 853792A09 | REPAIR KIT W/P (1 required per assembly) |
  |
|
853792A09 - 853792A09 - REPAIR KIT Gear H [ More info ] Unavailable Replaced by -8M0075041 |
  |
|
8M0075041 - REPAIR KIT W/P NLA [ More info ] Unavailable |
| #1 | 8M0070873 | GC BASIC 8/9.9 4S BASIC (1 required per assembly) — Replaces: 803729A3, 895154T06 |
  |
|
16688M0070873 - Gearcase Basic 8/9.9 4S [ More info ]
|
| #2 | 160521 | BEARING NEEDLE (1 required per assembly) |
  |
|
31-16052 1 - Needle Bearing [ More info ]
|
| #3 | 953683 | PLUG (1 required per assembly) |
  |
22-95368 3 - Oil Plug [ More info ] Unavailable |
|
  |
|
22-8M0229353 - PLUG [ More info ]
|
| #4 | 8M0082880 | SEAL KIT DRAIN PLUG (1 required per assembly) — Replaces: 95220 |
  |
|
8M0082880 - Seal - Priced Individually [ More info ]
|
  |
|
18-60103 - Gasket, Drain Plug 332600060M [ More info ]
|
| #5 | 803731 | ANODE (1 required per assembly) |
  |
|
97803731 - Anode [ More info ]
|
| #6 | 16832 | BOLT (M6 X 16) (1 required per assembly) |
  |
|
|
| #7 | 16133 | STRAINER WATER (1 required per assembly) |
  |
|
16133 - Water Strainer [ More info ]
|
| #8 | 16134 | SCREW (1 required per assembly) |
  |
|
10-16134 - Screw [ More info ]
|
| #9 | 953683 | PLUG (2 required per assembly) |
| #10 | 8M0082880 | SEAL KIT DRAIN PLUG (2 required per assembly) — Replaces: 95220 |
| #11 | 803730002 | STRAINER WATER (2 required per assembly) — Replaces: 803730 |
  |
|
803730002 - Water Strainer [ More info ]
|
| #12 | 879194326 | SCREW (1 required per assembly) — Replaces: 898101165 |
  |
|
10-879194326 - Screw [ More info ]
|
| #13 | 879194301 | STUD BOLT (4 required per assembly) — Replaces: 853718004 |
  |
|
16-879194301 - Stud Bolt [ More info ]
|
| #14 | 803762 | CLAMP (1 required per assembly) |
  |
|
|
| #15 | 898103153 | BOLT (1 required per assembly) — Replaces: 82304228 |
  |
|
10-898103153 - Bolt [ More info ]
|
| #16 | 898103166 | CLUTCH CAM (1 required per assembly) — Replaces: 161722, 898101028 |
  |
898103166 - Clutch Cam [ More info ] Unavailable |
|
  |
|
8M0172382 - Clutch CAM [ More info ]
|
| #17 | 16179 | PIN (2 required per assembly) |
  |
|
|
| #18 | 8M0123269 | CAM ROD SHORT (1 required per assembly) — Replaces: 803760014, 8M0123146 |
  |
|
8M0123269 - 8M0123269 - CAM ROD SHORT [ More info ] Unavailable Replaced by -8M0123272 |
  |
|
8M0123272 - CAM ROD KIT SHORT [ More info ]
|
| #18 | 8M0123270 | CAM ROD LONG (1 required per assembly) — Replaces: 803760015, 8M0123149 |
  |
|
8M0123270 - 8M0123270 - CAM ROD LONG [ More info ] Unavailable Replaced by -8M0123274 |
  |
|
8M0123274 - CAM ROD KIT LONG [ More info ] Unavailable |
| #19 | 803761 | BUSHING (1 required per assembly) |
  |
|
23-803761 - Bushing [ More info ]
|
| #20 | 8537096 | O-RING (1 required per assembly) |
  |
|
25-853709 6 - O-Ring [ More info ]
|
| #21 | 161772 | O-RING (2 required per assembly) |
  |
|
[ More info ] Unavailable |
| #22 | 8M0135942 | WASHER (4 required per assembly) — Replaces: 853701 |
  |
|
128M0135942 - Washer [ More info ]
|
| #23 | 879194337 | NUT (4 required per assembly) — Replaces: 853722023 |
  |
|
11-879194337 - Nut [ More info ]
|
| #24 | 85372211 | NUT (1 required per assembly) |
  |
|
11-853722 11 - Nut, Pinion [ More info ]
|
| #25 | 85372210 | NUT (1 required per assembly) — Replaces: 85372216 |
  |
|
11-853722 10 - Nut [ More info ]
|
| #26 | 803750A05 | HOUSING ASSEMBLY UPPER WATER PUMP INCLUDES WATER PUMP LINER (1 required per assembly) |
  |
|
46-803750A05 - Water Pump Upper Housing [ More info ]
|
| #27 | 8036674 | SEAL (1 required per assembly) — Replaces: 803667006 |
  |
|
26-803667 4 - Seal [ More info ]
|
| #28 | 823042046 | BOLT (3 required per assembly) |
  |
10-823042046 - Bolt [ More info ] Unavailable |
|
  |
|
10-879194269 - Bolt [ More info ]
|
| #29 | 8M0172920 | PUMP CASE ASSY INCLUDED WITH UPPER WATER PUMP HOUSING (1 required per assembly) — Replaces: 803751 |
  |
|
8M0172920 - PUMP CASE ASSY [ More info ]
|
| #30 | 803748 | IMPELLER (1 required per assembly) |
  |
47-803748 - New part # 478M0214944 [ More info ] Unavailable |
|
  |
|
47-8M0214944 - Water Pump Impeller - F8/9.9 BIGFOOT models [ More info ]
|
| #31 | 803753 | GUIDE PLATE (1 required per assembly) |
  |
|
803753 - Guide Plate [ More info ]
|
| #32 | 803750A04 | BASE ASSEMBLY WATER PUMP (1 required per assembly) |
  |
|
46-803750A04 - Water Pump Base [ More info ]
|
| #33 | 8537096 | O-RING (1 required per assembly) |
| #34 | 803752 | SEAL OIL (1 required per assembly) |
  |
|
26-803752 - Oil Seal [ More info ]
|
| #35 | 813276001 | SHIM (0.1) (AR required per assembly) |
  |
|
15-813276001 - Shim [ More info ]
|
| #35 | 813276015 | SHIM (0.15) (AR required per assembly) |
  |
|
15-813276015 - Shim (.15) [ More info ]
|
| #35 | 813276003 | SHIM (0.3) (AR required per assembly) |
  |
|
15-813276003 - Shim (.3) [ More info ]
|
| #35 | 813276005 | SHIM (0.5) (AR required per assembly) |
  |
|
15-813276005 - Shim (.5) [ More info ]
|
| #36 | 16132T05 | BEARING BALL (1 required per assembly) — Replaces: 161325 |
  |
|
30-16132T05 - Ball Bearing [ More info ]
|
| #37 | 803738007 | DRIVESHAFT Short (1 required per assembly) |
  |
|
45-803738007 - Drive Shaft - Short [ More info ]
|
| #37 | 803738008 | DRIVESHAFT Long (1 required per assembly) |
  |
|
45-803738008 - Drive Shaft - Long [ More info ]
|
| #38 | 8M0173418 | KEY (1 required per assembly) — Replaces: 803749 |
  |
|
288M0173418 - KEY [ More info ]
|
| #39 | 16138003 | GEAR PINION (1 required per assembly) |
  |
|
43-16138003 - Gear, Pinion [ More info ]
|
| #40 | 851859 | JOINT (1 required per assembly) |
  |
|
|
| #41 | 952189 | DOWEL PIN @5 (2 required per assembly) |
  |
|
17-95218 9 - Dowel Pin [ More info ]
|
| #42 | 853709007 | GROMMET (1 required per assembly) |
  |
|
25-853709007 - Grommet, Shift Rod [ More info ]
|
| #43 | 803766006 | SHIFT ROD (1 required per assembly) |
  |
|
803766006 - SHIFT ROD [ More info ] Unavailable |
| #44 | 8M0075040 | GASKET GUIDE PLATE [OR501887] & Up (1 required per assembly) |
  |
|
278M0075040 - Gasket [ More info ]
|
