Parts for 15 HP Carb 2 Cyl 4-Stroke Mercury Outboard Motor Tiller Handle

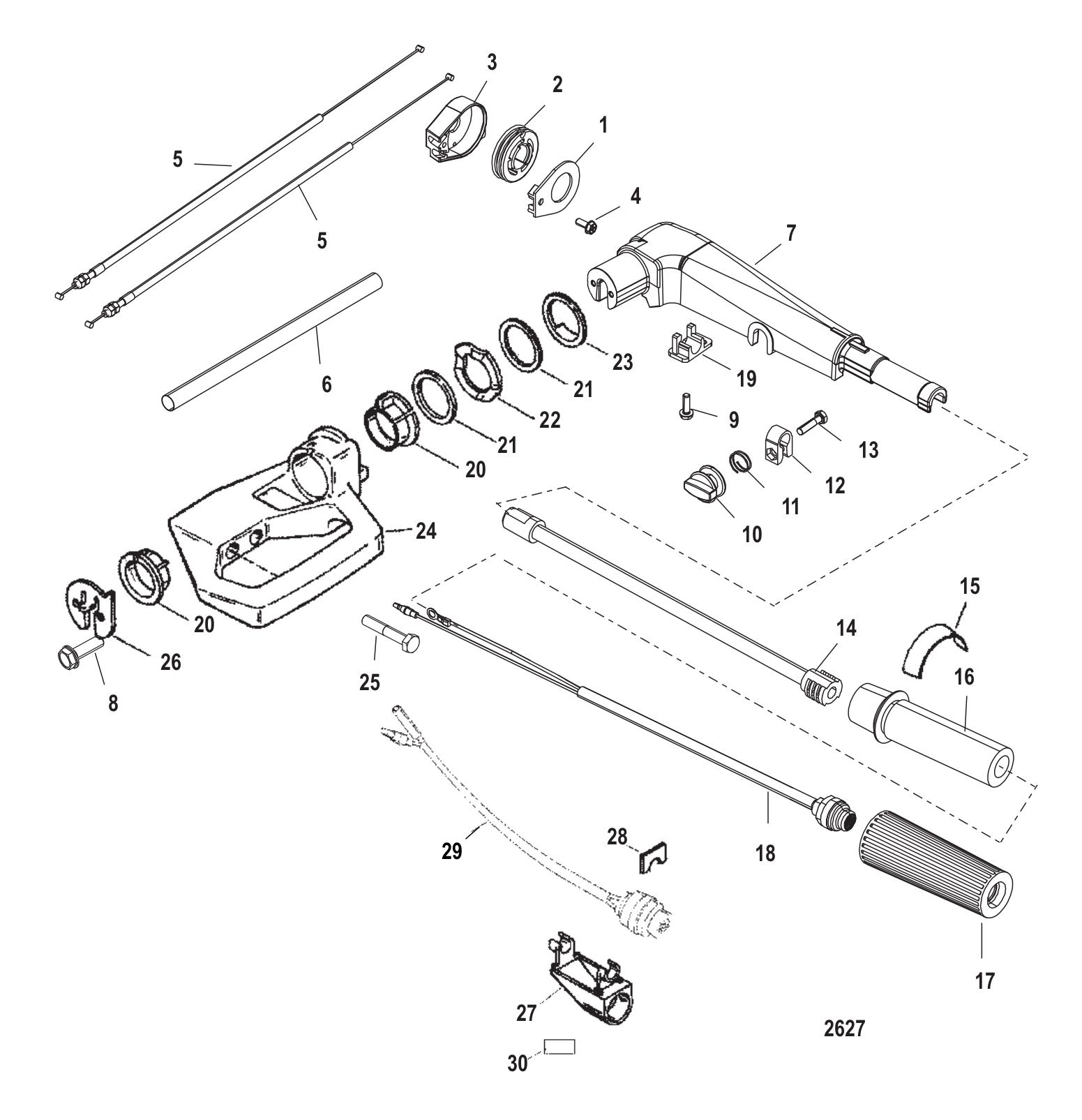

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 821468T65 | TILLER ASSY (1 required per assembly) |
  |
|
821468T65 - Tiller Handle, Black, Does Not Include Bracket and Related Hardware [ More info ] Unavailable |
| #1 | 822148A3 | COVER KIT (1 required per assembly) |
  |
|
822148A 3 - Cover Kit with Pulley and Throttle Cables [ More info ]
|
| #2 | 822150 | PULLEY (1 required per assembly) |
  |
|
|
| #3 | NSS | NOT SOLD SEPARATE BODY (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 878608 | SCREW (#10-16 X .500) (1 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #5 | 43242T09 | CABLE-THROTTLE (2 required per assembly) — Replaces: 432429 |
  |
|
43242T09 - Throttle Cable [ More info ]
|
| #6 | 9600910 | SLEEVE (1 required per assembly) |
  |
|
85-96009 10 - Insulator - Priced Individually [ More info ]
|
| #7 | 821468A66 | ARM ASSEMBLY STEERING HANDLE (1 required per assembly) |
  |
|
821468A66 - Steering Handle Arm [ More info ]
|
| #8 | 40011107 | SCREW (M5 X 16) STAINLESS STEEL (2 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #9 | 40011107 | SCREW (M5 X 16) STAINLESS STEEL (1 required per assembly) |
| #10 | 821972T | KNOB THROTTLE (1 required per assembly) — Replaces: 821972 |
  |
|
821972T - Throttle Knob [ More info ]
|
| #11 | 96203 | SPRING (1 required per assembly) |
  |
|
24-96203 - Spring, Pilot Control Screw [ More info ]
|
| #12 | 892995 | LOCK THROTTLE (1 required per assembly) |
  |
|
892995 - Throttle Lock [ More info ]
|
| #13 | 8M0204707 | SCREW @5 (1 required per assembly) — Replaces: 4000330 |
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #14 | 821463T01 | TUBE-TILLER (1 required per assembly) — Replaces: 821463A1 |
  |
|
821463T01 - Tiller Tube [ More info ]
|
| #15 | 8242003 | DECAL (1 required per assembly) |
  |
|
37-824200 3 - Decal - Throttle [ More info ]
|
| #16 | 821465 | HANDLE THROTTLE (1 required per assembly) |
  |
|
821465 - Throttle Handle [ More info ]
|
| #17 | 99589003 | GRIP (1 required per assembly) |
  |
99589003 - Grip [ More info ] Unavailable |
|
  |
|
8M0221732 - Outer Grip [ More info ]
|
| #18 | 8M0104613 | SWITCH ASSY (1 required per assembly) — Replaces: 823609A9 |
  |
|
878M0104613 - Switch Assembly [ More info ] Unavailable |
| #19 | 822441 | RETAINER (1 required per assembly) |
  |
|
822441 - Retainer [ More info ]
|
| #20 | 823939 | BUSHING (2 required per assembly) |
  |
|
23-823939 - Bushing [ More info ]
|
| #21 | 822145 | WASHER (2 required per assembly) |
  |
|
12-822145 - Washer [ More info ]
|
| #22 | 826792 | WASHER-WAVE (1 required per assembly) |
  |
|
13-826792 - Wave Washer [ More info ]
|
| #23 | 822146 | WASHER (1 required per assembly) |
  |
|
12-822146 - Washer [ More info ]
|
| #24 | 822841F1 | BRACKET STEERING ARM (1 required per assembly) |
  |
|
822841F 1 - Bracket - Black [ More info ]
|
| #25 | 4000384 | SCREW @2 (2 required per assembly) |
  |
|
10-40003 84 - Screw - Priced Individually [ More info ]
|
| #26 | 826648 | PLATE (1 required per assembly) |
  |
|
|
| #27 | 889734 | HOUSING-SWITCH (Electric Handle) (1 required per assembly) |
  |
|
889734 - Switch Housing [ More info ]
|
| #28 | 824918 | CLIP (Electric Handle) (1 required per assembly) |
  |
|
824918 - Start Switch Clip [ More info ]
|
| #29 | 823609A8 | SWITCH ASSY (Electric Handle) (1 required per assembly) |
  |
|
87-823609A 8 - Switch Assembly [ More info ]
|
| #30 | 855262 | DECAL START (Electric Handle) (1 required per assembly) |
  |
|
37-855262 - DECAL-START [ More info ] Unavailable |
