Parts for 15 HP Carb 2 Cyl 4-Stroke Mercury Outboard Motor Electrical Components

Revise Search: Outboard > 4-Stroke Mercury Outboard > 15 HP Carb 2 Cyl > 1B227000 - 1B727495 - USA > Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

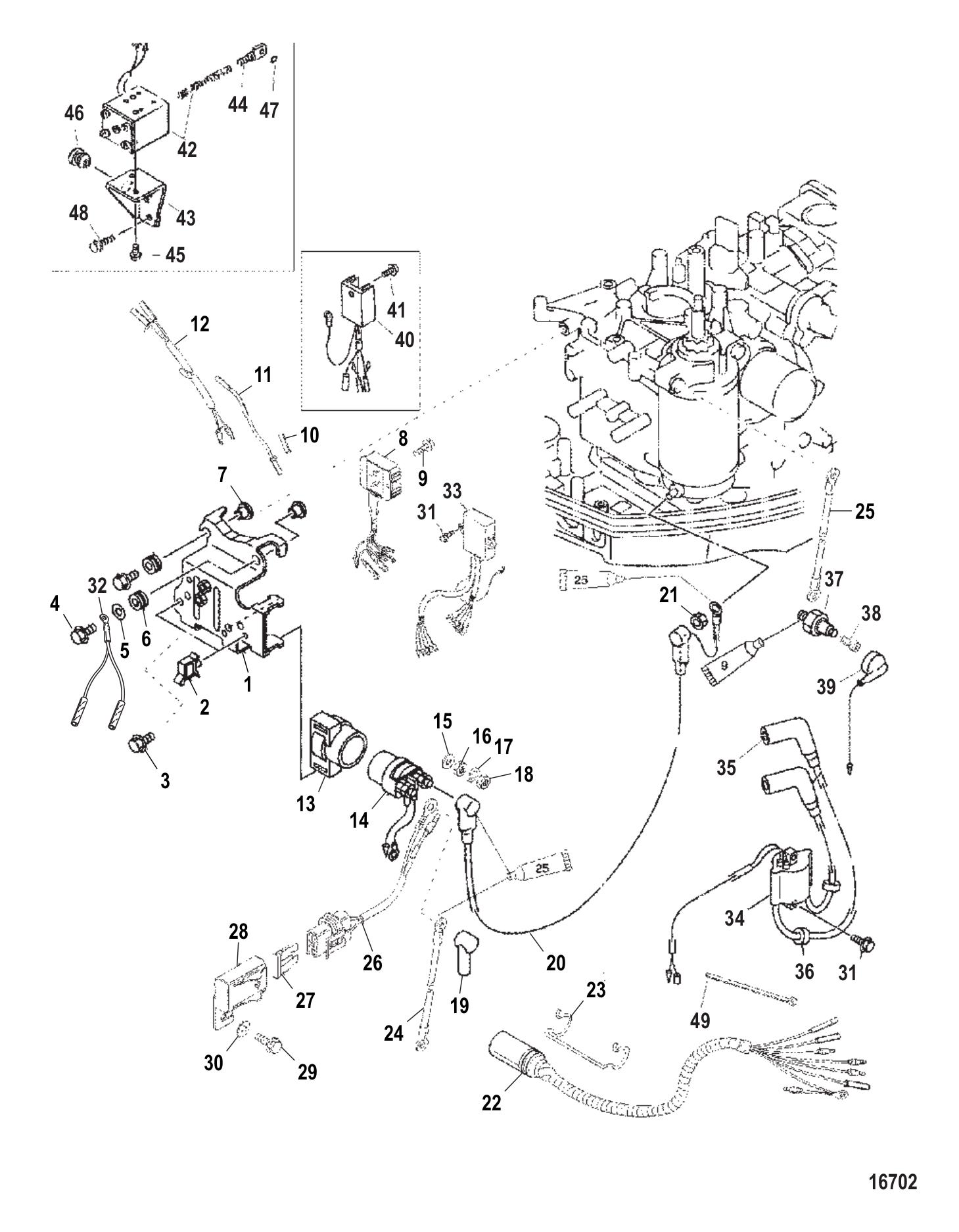

Electrical Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	802733A98	PH 15 4S (Electric) (1 required per assembly)
		802733A98 - Powerhead, 4-stroke [ More info ] Unavailable
#-	879783A01	PH 9.9/15 4S (Manual) (1 required per assembly)
		879783A01 - Powerhead, 9.9 and 15HP 4 Stroke [ More info ] Unavailable
#1	835403T1	BRACKET (Electric) (1 required per assembly)
		835403T 1 - Bracket [ More info ] $31.49 Available to Order: Shipping delay up to 10 days.
#1	835403T	BRACKET (Manual) (1 required per assembly)
		835403T - Bracket, NLA [ More info ] $30.09 $15.89 2 In Stock.
#2	855686	CLAMP (2 required per assembly)
		54-855686 - Clamp [ More info ] $1.25 $1.06 10+ In Stock.
#3	855810	BOLT (3 required per assembly)
		10-855810 - Bolt [ More info ] $1.50 $1.28 2 In Stock.
#4	8248326	SCREW (1 required per assembly)
		10-824832 6 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#5	855811	WASHER (1 required per assembly)
		12-855811 - Washer [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#6	97687M	GROMMET (4 required per assembly)
		25-97687M - Grommet [ More info ] Unavailable
#7	852473	COLLAR (4 required per assembly)
		23-852473 - Collar [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#8	854650T2	RECT/REG ASSY (Electric) (1 required per assembly)
		854650T 2 - Rectifier Regulator Assembly [ More info ] Unavailable
#9	811188T	BOLT (Electric) (2 required per assembly) — Replaces: 811188M
		10-811188T - Bolt [ More info ] Unavailable
#10	13540	PLUG @10 (Electric) (1 required per assembly)
		13540 - Plug - Priced Individually [ More info ] $1.10 $0.22 10+ In Stock.
#10	13541	PLUG (Electric) (1 required per assembly)
		13541 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#11	11149A43	CABLE ASSY (Electric) (1 required per assembly)
		84-11149A43 - Cable Assembly [ More info ] $3.90 Available to Order: Shipping delay up to 10 days.
#12	824372A1	CABLE ASSY (Electric) (1 required per assembly)
		84-824372A 1 - Cable Assembly [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#13	8M0010250	BRACKET (Electric) (1 required per assembly) — Replaces: 95643M
		8M0010250 - Bracket [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#14	8M0098898	RELAY ASSY (Electric) (1 required per assembly) — Replaces: 825096T, 825096T01
		89-8M0098898 - Relay Assembly [ More info ] $45.99 2 In Stock.
#15	827205	WASHER (Electric) (2 required per assembly)
		12-827205 - Washer, Spring [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#16	827204	NUT (Electric) (2 required per assembly)
		11-827204 - Nut (M6) [ More info ] $0.30 $0.24 6 In Stock.
#17	400256	LOCKWASHER @5 (Electric) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#18	400212	NUT (Electric) (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#19	804284001	BOOT (Electric) (1 required per assembly) — Replaces: 826574
		85-804284001 - Boot [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#20	855742	WIRE ASSY (Electric) (1 required per assembly)
		855742 - Wire Assembly [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#21	94330	NUT @2 (Electric) (1 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#22	859312T1	HARNESS ASSY (Electric) (1 required per assembly)
		84-859312T 1 - Harness Assembly [ More info ] $86.49 $82.88 2 In Stock.
#23	92753	RETAINER (Electric) (1 required per assembly)
		92753 - Harness Retainer [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#24	88439A29	CABLE ASSY-POS (Electric) (1 required per assembly)
		84-88439A29 - Cable Assembly -pos [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#25	88439A30	CABLE ASSY-NEG (Electric) (1 required per assembly)
		84-88439A30 - Cable Assembly -neg [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#26	859451A1	HARNESS ASSY-FUSE (1 required per assembly)
		84-859451A 1 - Fuse Harness Assembly [ More info ] $21.49 Available to Order: Shipping delay up to 10 days.
#27	812619	FUSE YELLOW - 20 AMPERE (1 required per assembly)
		88-812619 - Fuse - Yellow - 20 Amp [ More info ] $4.69 10+ In Stock.
#28	828054	COVER FUSE (1 required per assembly)
		828054 - Fuse Cover [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#29	82130012	SCREW @5 (1 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 5 In Stock.
#30	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#31	84058M	BOLT (4 required per assembly)
		10-84058M - Bolt [ More info ] $7.79 1 In Stock.
#32	824912A6	CABLE ASSY @5 (Handle) (1 required per assembly)
		84-824912A 6 - Cable Assembly - Priced Individually [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#33	835401T1	CDI (1 required per assembly)
		835401T 1 - CDI [ More info ] $240.49 Available to Order: Shipping delay up to 10 days.
#34	855685T	COIL ASY-IGNITION (1 required per assembly)
		855685T - Ignition Coil Assembly [ More info ] Unavailable
#35	825102A1	HIGH TENSION LEAD (2 required per assembly)
		84-825102A 1 - Boot - High Tension [ More info ] Unavailable
#36	82069M	GROMMET (2 required per assembly)
		25-82069M - Grommet, Plug Wire,NLA [ More info ] $3.00 6 In Stock.
#37	853524	SWITCH-OIL PRESSR (1 required per assembly)
		853524 - Switch - Oil Pressure [ More info ] Unavailable
#38	NSS	NOT SOLD SEPARATE SCREW (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#39	853537	WIRE-LEAD (1 required per assembly)
		853537 - Wire - Lead [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#40	835406	RECTIFIER/REGULTO (Manual) (1 required per assembly)
		835406 - Rectifier/Regulator [ More info ] Unavailable
#41	811188T	BOLT (Manual) (1 required per assembly) — Replaces: 811188M
#42	853598T	SOLENOID&PLUNGER (Electric Non/Handle) (1 required per assembly)
		89-853598T - Solenoid & Plunger [ More info ] Unavailable
#43	853599T	BRACKET (Electric Non/Handle) (1 required per assembly)
		853599T - Bracket, NLA [ More info ] $15.89 $12.72 10+ In Stock.
#44	853601	HOOK WIRE (Electric Non/Handle) (1 required per assembly)
		853601 - Hook Wire [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#45	855739	SCREW (Electric Non/Handle) (2 required per assembly)
		10-855739 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#46	91782M	GROMMET (Electric Non/Handle) (1 required per assembly)
		25-91782M - Grommet [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#47	82258M	O RING @2 (Electric Non/Handle) (1 required per assembly)
		25-82258M - O-Ring - Priced Individually [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#48	811188T	BOLT (Electric Non/Handle) (2 required per assembly) — Replaces: 811188M
#49	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
