Parts for 15 HP Carb 2 Cyl 4-Stroke Mercury Outboard Motor Crankshaft, Pistons, & Connecting Rods

Revise Search: Outboard > 4-Stroke Mercury Outboard > 15 HP Carb 2 Cyl > 1B227000 - 1B727495 - USA > Crankshaft, Pistons, & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

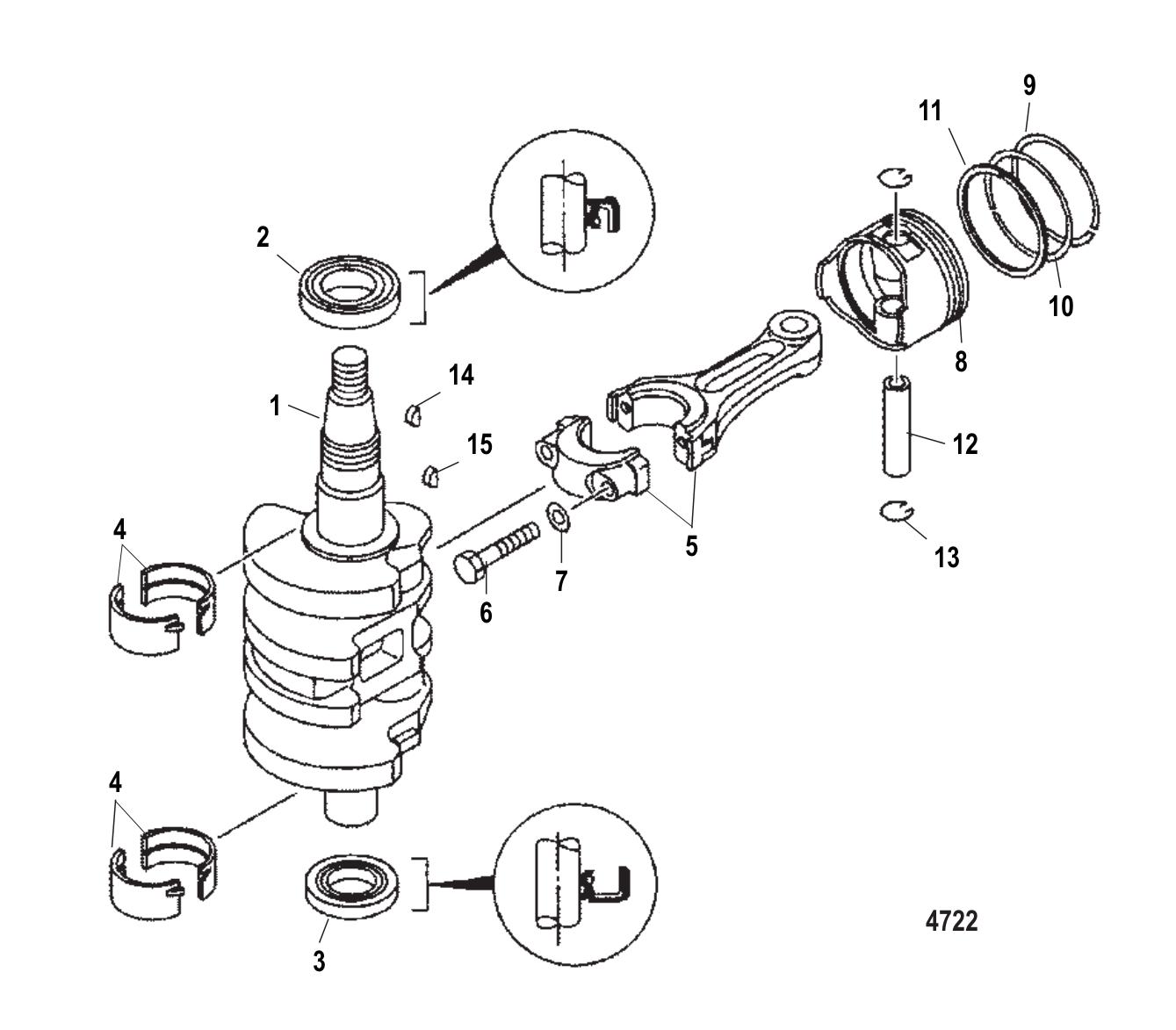

Crankshaft, Pistons, & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	802733A98	PH 15 4S (Electric) (1 required per assembly)
		802733A98 - Powerhead, 4-stroke [ More info ] Unavailable
#-	879783A01	PH 9.9/15 4S (Manual) (1 required per assembly)
		879783A01 - Powerhead, 9.9 and 15HP 4 Stroke [ More info ] Unavailable
#-	835427A00	GASKET SET (1 required per assembly)
		27-835427A00 - Gasket Set [ More info ] Unavailable
#1	834957	CRANKSHAFT (1 required per assembly)
		400-834957 - CrankShaft, See Detail Page for Complete Powerhead [ More info ] $765.99 Available to Order: Shipping delay up to 10 days.
#2	855680	SEAL (1 required per assembly)
		26-855680 - Seal [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#3	855681	SEAL (1 required per assembly)
		26-855681 - Seal [ More info ] Unavailable
#4	8M0054679	BEARING- 1 PAIR (Brown) (AR required per assembly) — Replaces: 834960
		31-8M0054679 - Bearing - 1 Pair [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#4	83496010	BEARING (Black) (AR required per assembly)
		31-834960 10 - Bearing [ More info ] $6.50 Available to Order: Shipping delay up to 10 days.
#4	83496020	BEARING (Blue) (AR required per assembly)
		31-834960 20 - Bearing [ More info ] $4.50 10+ In Stock.
#5	834961T1	CONN ROD ASSY (2 required per assembly)
		600-834961T 1 - Connecting Rod, See Detail Page for Complete Powerhead [ More info ] Unavailable
#6	850844	BOLT (M7 X 38) (4 required per assembly)
		10-850844 - Bolt [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#7	855682	WASHER (4 required per assembly)
		12-855682 - Washer [ More info ] $1.30 $1.11 10+ In Stock.
#8	834963T	PISTON (2 required per assembly)
		700-834963T - Piston, See Detail Page for Complete Powerhead [ More info ] $43.08 Available to Order: Shipping delay up to 10 days.
#9	850846	RING-PISTON (2 required per assembly)
		39-850846 - Piston Ring [ More info ] Unavailable
#10	850847	RING-PISTON (2 required per assembly)
		39-850847 - Piston Ring [ More info ] $13.79 Available to Order: Shipping delay up to 10 days.
#11	825839	RING-OIL (2 required per assembly)
		39-825839 - Ring - Oil [ More info ] Unavailable
#12	825713	PIN-PISTON (2 required per assembly)
		41-825713 - Piston Pin [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#13	82343M	RING-SNAP @2 (4 required per assembly)
		53-82343M - Ring -snap - Priced Individually [ More info ] $2.20 6 In Stock.
#14	8M0057164	KEY @2 (1 required per assembly) — Replaces: 81914M
		288M0057164 - Key , Priced Individually [ More info ] $15.98 $13.54 1 In Stock.
#15	8M0084803	KEY @2 (1 required per assembly) — Replaces: 84403M
		288M0084803 - Key , Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
