Parts for 135 HP EFI Verado 4 Cyl 4-Stroke Mercury Outboard Motor Port Cylinder Block Components

Revise Search: Outboard > 4-Stroke Mercury Outboard > 135 HP EFI Verado 4 Cyl > 0P464488 - 0P514868 - Belgium > Port Cylinder Block Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

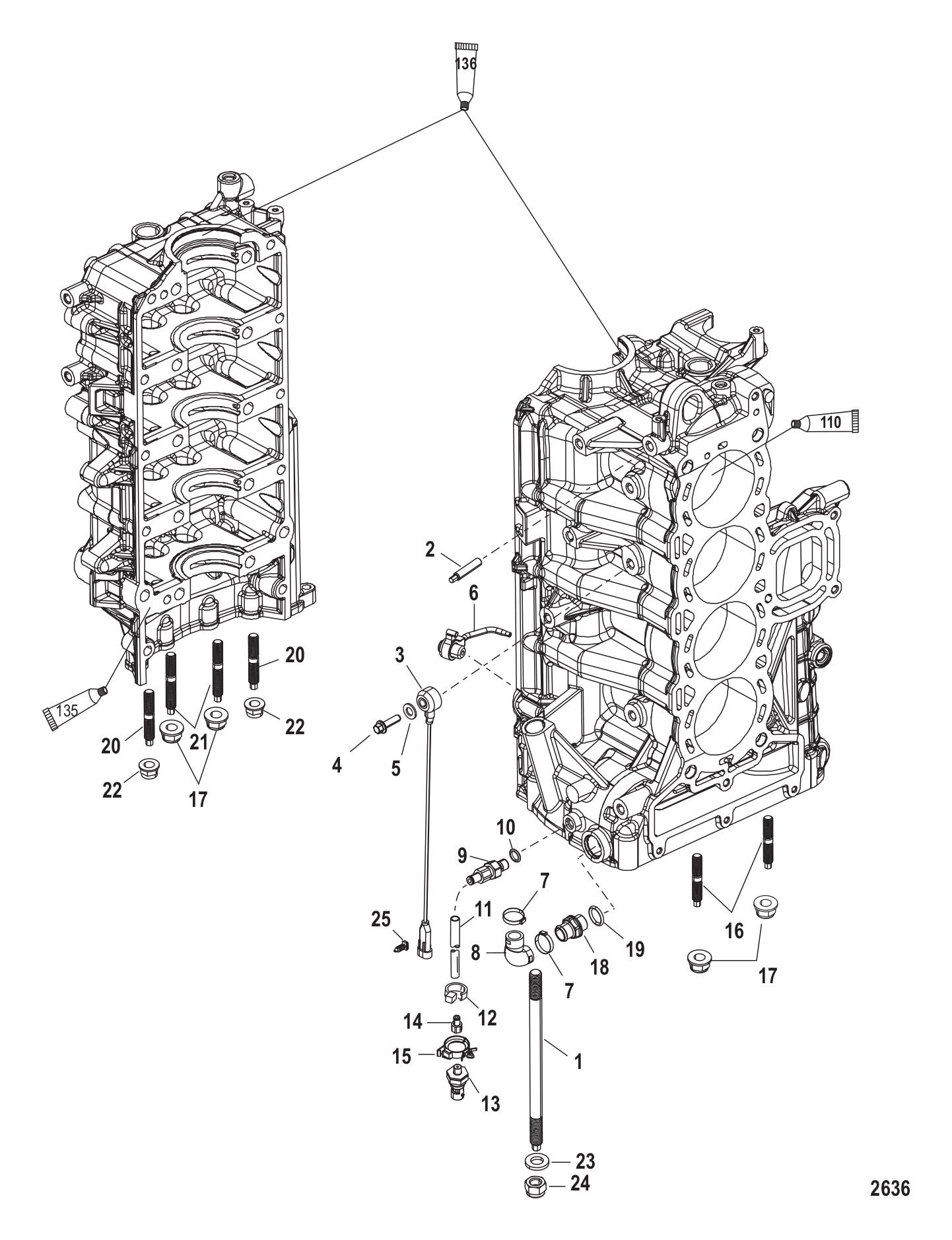

Port Cylinder Block Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	896142A07	GASKET SET (1 required per assembly) — Replaces: 896142A06
		27-896142A07 - Gasket Set [ More info ] $326.99 Available to Order: Shipping delay up to 10 days.
#-	8M0055433	RM L4 GEN1 VERADO (1 required per assembly) — Replaces: 896499A07
		618M0055433 - RM L4 GEN1 Verado [ More info ] Unavailable
#1	8M0022165	STUD (6 required per assembly) — Replaces: 896148
		16-8M0022165 - Stud [ More info ] $19.45 1 In Stock.
#2	8M0022162	STUD (1 required per assembly) — Replaces: 888997001
		16-8M0022162 - Stud [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#3	8M6003194	SENSOR-KNOCK (1 required per assembly) — Replaces: 878187
		8M6003194 - Knock Sensor [ More info ] $77.99 In Stock
#4	892086035	SCREW @2 (1 required per assembly)
		10-892086035 - Screw - Priced Individually [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#5	4002319	WASHER @3 (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#6	8M0058813	OIL JET ASSY (4 required per assembly) — Replaces: 896595A01
		8M0058813 - OIL Jet Assembly [ More info ] $238.49 Available to Order: Shipping delay up to 10 days.
#7	888988008	CLAMP @2 (2 required per assembly)
		54-888988008 - 54-888988008 - CLAMP (34.6 mm) [ More info ] Unavailable Replaced by -8M0187145
		54-8M0187145 CLAMP [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#8	885544002	HOSE (1 required per assembly)
		32-885544002 - Hose [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#9	896094A01	FITTING ASSY (1 required per assembly)
		22-896094A01 - Fitting Assembly [ More info ] $38.99 $37.20 10+ In Stock.
#10	896699	O-RING (1.78 MM X .08 MM) (1 required per assembly)
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#11	85978571	TUBING (52.00 INCHES BULK) TO WATER PRESSURE SENSOR (CUT TO 21.5 INCHES) (1 required per assembly)
		32-859785 71 - Hose - 52 Inch [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#12	816311T	TIE STRAP @100 (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#13	881879T26	SENSOR PRESSURE WATER ( required per assembly) — Replaces: 881879A20
		881879T26 - Sesnor-presser [ More info ] $225.99 Available to Order: Shipping delay up to 10 days.
#14	8M0207782	SPACER (1 required per assembly) — Replaces: 892403
		22-8M0207782 - SPACER [ More info ] Unavailable
#15	883066	CLIP (.865) (1 required per assembly)
		54-883066 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#16	8M0000274	STUD (2 required per assembly) — Replaces: 897598
		16-8M0000274 - Stud [ More info ] $6.99 2 In Stock.
#17	826365	NUT (4 required per assembly)
		11-826365 - Nut (M8) [ More info ] $5.89 10+ In Stock.
#18	885517A05	FITTING ASSY (1 required per assembly)
		22-885517A05 - Fitting Assembly [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#19	892077	O-RING (1 required per assembly)
		25-892077 - O-ring, Fitting Assembly [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#20	8M0022166	STUD (2 required per assembly) — Replaces: 896268
		16-8M0022166 - Stud [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#21	8M0000275	STUD (2 required per assembly) — Replaces: 897599
		16-8M0000275 - Stud [ More info ] $17.59 Available to Order: Shipping delay up to 10 days.
#22	826292	NUT (2 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#23	856774	WASHER @5 (6 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#24	884412	NUT @2 (6 required per assembly)
		11-884412 - Nut - Priced Individually [ More info ] $4.79 1 In Stock.
#25	828991T	CLIP (1 required per assembly)
		54-828991T - Clip [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
