Parts for 135 HP EFI Verado 4 Cyl 4-Stroke Mercury Outboard Motor Charge Cooler / Intake Manifold

Revise Search: Outboard > 4-Stroke Mercury Outboard > 135 HP EFI Verado 4 Cyl > 0P419487 - 0P464487 - Belgium > Charge Cooler / Intake Manifold

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

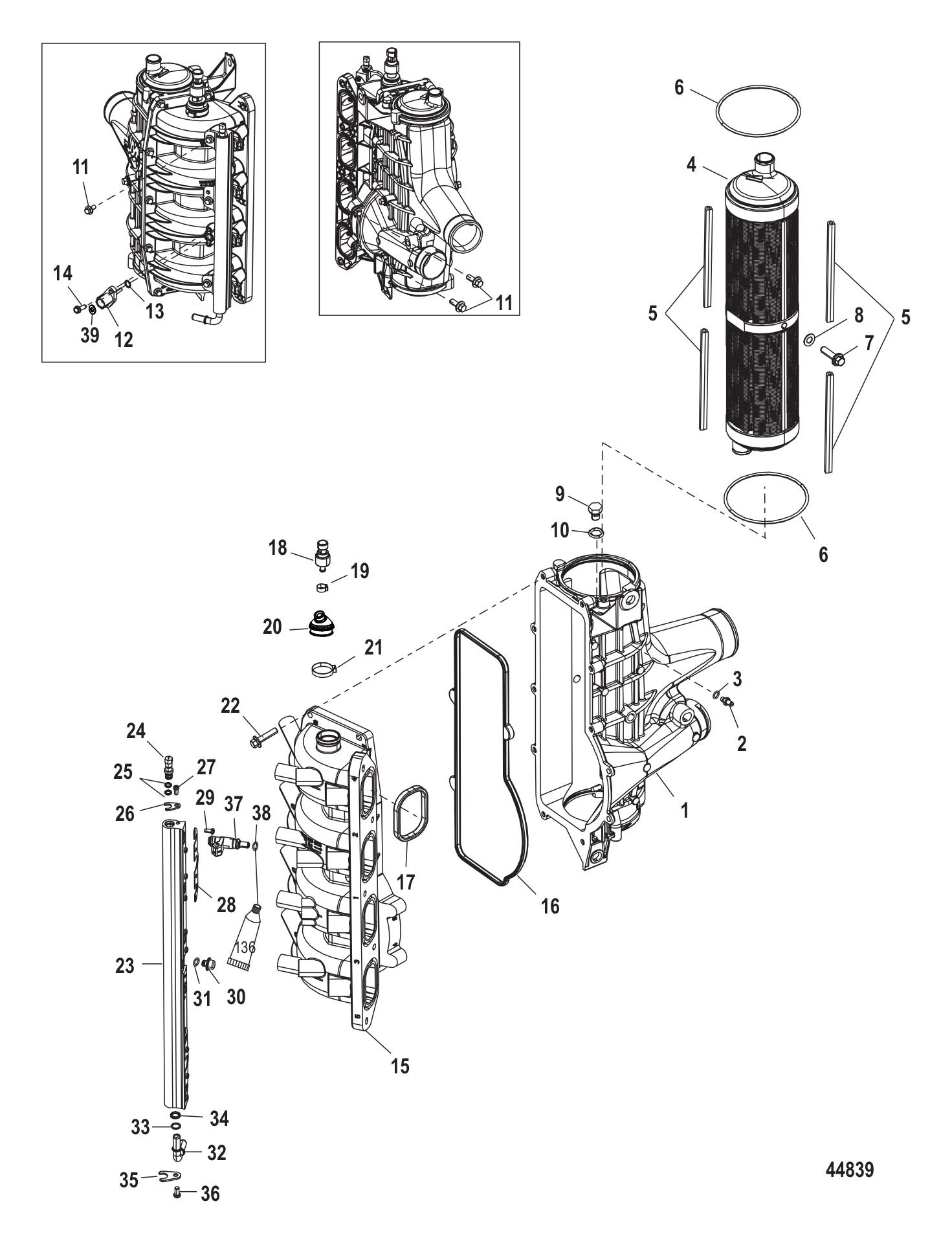

Charge Cooler / Intake Manifold

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	892952T05	FUEL MODULE [1B279512] & Below (1 required per assembly) — Replaces: 892952T01, 892952T03
		892952T05 - Fuel Module [ More info ] Unavailable
		8M0053762 - Fuel Module [ More info ] Unavailable
		8M0092409 - 8M0092409 - IAFM [ More info ] Unavailable Replaced by -8M0131232
		8M0131232 - IAFM [ More info ] Unavailable
		8M0185612 - IAFM [ More info ] Unavailable
#-	8M0053762	FUEL MODULE [1B279513] & Up (1 required per assembly) — Replaces: 892952T03, 892952T05
#1	8M0092461	CAC ASSEMBLY (1 required per assembly) — Replaces: 892953A01, 8M0046691
		8M0092461 - 8M0092461 - CAC ASSEMBLY [ More info ] Unavailable Replaced by -8M0132387
		8M0132387 - CAC ASSEMBLY [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE FITTING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE STACK ASSEMBLY (1 required per assembly)
#5	NSS	NOT SOLD SEPARATE SEAL KIT (4 required per assembly)
#6	NSS	NOT SOLD SEPARATE SEAL (2 required per assembly)
#7	NSS	NOT SOLD SEPARATE SCREW (2 required per assembly)
#8	NSS	NOT SOLD SEPARATE WASHER (2 required per assembly)
#9	8M0048079	PLUG 8MM (1 required per assembly) — Replaces: 895034, 8M0039519
		198M0048079 - Plug-8MM [ More info ] $9.20 Available to Order: Shipping delay up to 10 days.
#10	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
#11	895053	SCREW (M6 X 15) (5 required per assembly)
		10-895053 - Screw - Priced Individually [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#12	891663001	SENSOR TEMPERATURE (1 required per assembly)
		891663001 - Temperature Sensor Assembly [ More info ] $228.49 In Stock
#13	892317001	O-RING (1 required per assembly)
		25-892317001 - O-ring, Air Plenum Sensor And Intake Manifold [ More info ] $23.19 Available to Order: Shipping delay up to 10 days.
#14	895054	SCREW (M4 X 16 MM) (2 required per assembly)
		10-895054 - Screw - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#15	8M0041478	MANIFOLD (1 required per assembly) — Replaces: 892954A01
		8M0041478 - Manifold [ More info ] $407.79 Available to Order: Shipping delay up to 10 days.
#16	896663	SEAL (1 required per assembly)
		26-896663 - Seal [ More info ] $90.49 Available to Order: Shipping delay up to 10 days.
#17	895020	SEAL (6 required per assembly)
		895020 - Seal [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#18	8M6000639	SENSOR PRESSURE MAP (1 required per assembly) — Replaces: 885548002, 8M0010248
		8M6000639 - Sensor [ More info ] $247.58 1 In Stock.
		8M0234766 - SENSOR PRESSURE [ More info ] In Stock
#19	13791	CLAMP (15.7) MAP SENSOR TO BOOT (1 required per assembly) — Replaces: 888988015
		54-13791 - Clamp [ More info ] Unavailable
		54-8M0214911 - CLAMP @5 [ More info ] Unavailable
#20	892952500	BOOT (1 required per assembly)
		892952500 - Boot [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#21	8M0204719	CLAMP @5 (1 required per assembly) — Replaces: 888988001
		548M0204719 - CLAMP Note: Priced Individually [ More info ] $5.49 4 In Stock.
#22	8M0103807	SCREW (M6 X 25 MM) STAINLESS STEEL (9 required per assembly) — Replaces: 895052, 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#23	8M0129470	FUEL RAIL KIT (1 required per assembly) — Replaces: 896503A01, 8M0041074
		8M0129470 - Fuel Rail KIT [ More info ] $785.99 Available to Order: Shipping delay up to 10 days.
#24	895028A01	VALVE SCHRADER (1 required per assembly)
		895028A01 - Valve Kit [ More info ] Unavailable
#25	895056	O-RING (2 required per assembly)
		25-895056 - O-Ring - Priced Individually [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#26	895026	BRACKET (1 required per assembly)
		895026 - Bracket [ More info ] Unavailable
#27	895051	SCREW (M5 X 10) (1 required per assembly)
		10-895051 - Screw - Priced Individually [ More info ] Unavailable
#28	895024	BRACKET (3 required per assembly)
		895024 - Bracket [ More info ] Unavailable
#29	895051	SCREW (M5 X 10) (12 required per assembly)
#30	895025	DAMPER (1 required per assembly)
		895025 - Damper [ More info ] $60.49 Available to Order: Shipping delay up to 10 days.
#31	851889	O-RING (1 required per assembly)
		25-851889 - O-Ring [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#32	895029A01	TUBE KIT FUEL INLET (1 required per assembly)
		32-895029A01 - Tube Kit - Fuel Inl [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#33	895055	WASHER (1 required per assembly)
		12-895055 - Washer - Priced Individually [ More info ] Unavailable
#34	895057	O-RING (1 required per assembly)
		25-895057 - O-Ring - Priced Individually [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#35	895027	BRACKET (1 required per assembly)
		895027 - Bracket [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#36	895051	SCREW (M5 X 10) (1 required per assembly)
#37	8M0041571	INJECTOR ASSEMBLY FUEL [1B279513] & Up (4 required per assembly) — Replaces: 892811T02, 8M0006027
		8M0041571 - Fuel Injector [ More info ] Unavailable
		8M0222278 - FUEL INJECTOR [ More info ] Unavailable
#38	851889	O-RING (8 required per assembly)
#39	8M0041410	GASKET (1 required per assembly) — Replaces: 8M0006599
		8M0041410 - Gasket [ More info ] Unavailable
		278M0142578 - Gasket MAT Sensor [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
