Parts for 13.5 HP Carb (International) 4-Stroke Mercury Outboard Motor Throttle / Shift Linkage (Handle Models)

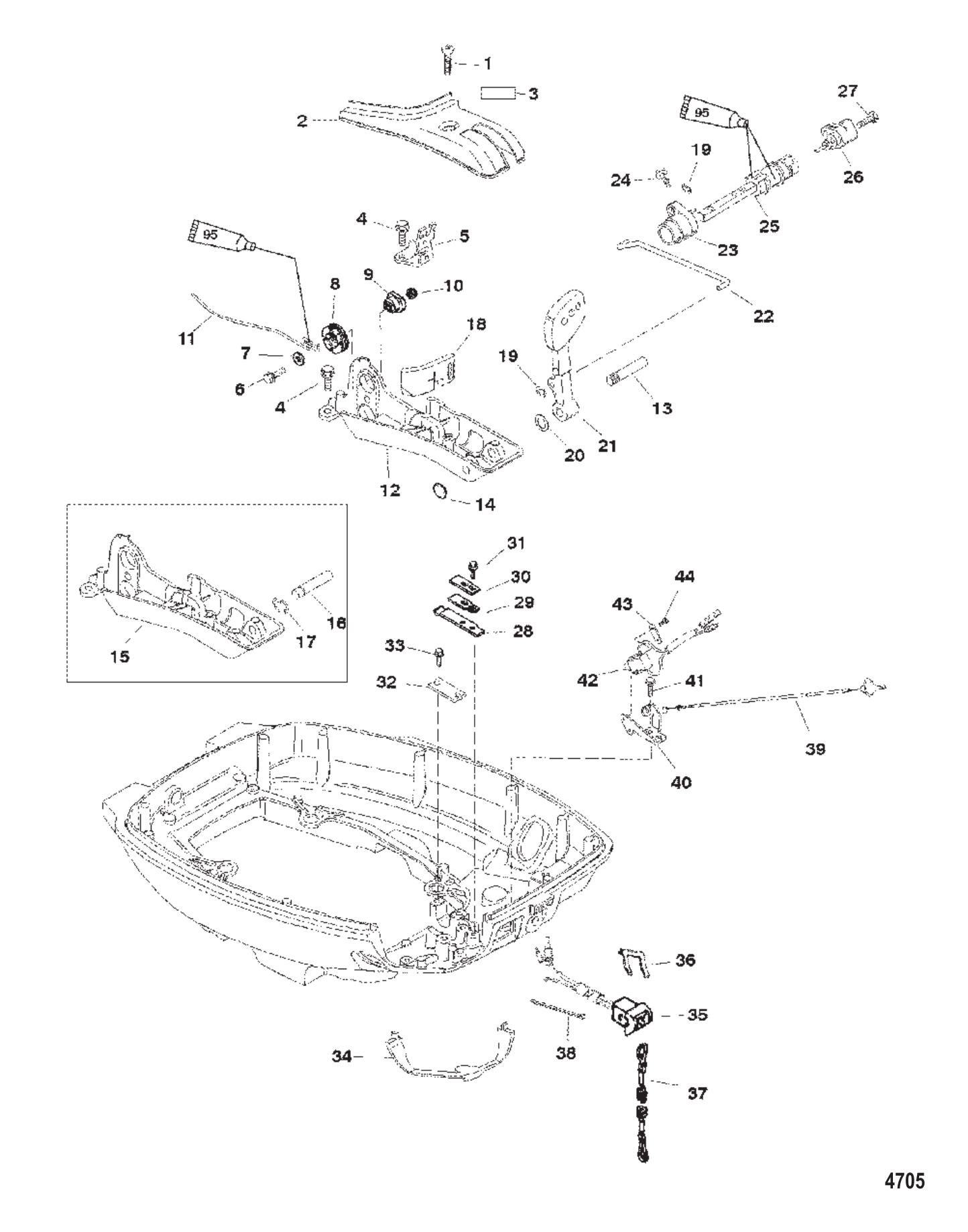

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8248291 | SCREW (1 required per assembly) |
  |
|
10-824829 1 - Screw [ More info ]
|
| #2 | 856905 | COVER (1 required per assembly) |
  |
|
|
| #3 | NSS | NOT SOLD SEPARATE (DECAL-F,N,R) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 8M0204741 | SCREW @4 (3 required per assembly) — Replaces: 40011128, 8M4503518 |
  |
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #5 | 856909 | BRACKET (1 required per assembly) |
  |
|
856909 - Bracket [ More info ] Unavailable |
| #6 | 8M0204741 | SCREW @4 (1 required per assembly) — Replaces: 40011128, 8M4503518 |
| #7 | 4002316 | WASHER @5 (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #8 | 825787A2 | PULLEY ASSY (1 required per assembly) |
  |
|
825787A 2 - Pulley Assembly [ More info ]
|
| #9 | 825788 | BUSHING (1 required per assembly) |
  |
|
23-825788 - Bushing [ More info ]
|
| #10 | 401366 | NUT @5 (1 required per assembly) |
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #11 | 882818 | LINK-THROTTLE (1 required per assembly) |
  |
|
882818 - Throttle Link [ More info ]
|
| #12 | 856904T01 | PLATEFORM ASSY. (Design II) (1 required per assembly) — Replaces: 856904A2 |
  |
|
856904T01 - Shift Platform [ More info ]
|
| #13 | 8569111 | SHAFT (Design II) (1 required per assembly) |
  |
|
856911 1 - Shift Shaft [ More info ]
|
| #14 | 48323 | PLUG (Design II) (1 required per assembly) |
  |
|
|
| #15 | 856904T01 | PLATEFORM ASSY. (Design I) (1 required per assembly) — Replaces: 856904, 856904A2 |
| #16 | 856911 | SHAFT-SHIFT (Design I) (1 required per assembly) |
  |
|
856911 - Shift Shaft [ More info ]
|
| #17 | 95019 | RING-RETAINING (Design I) (1 required per assembly) |
  |
|
53-95019 - Ring - Retaining [ More info ]
|
| #18 | 856910 | SEAL (1 required per assembly) |
  |
|
|
| #19 | 857213 | E RING (2 required per assembly) |
  |
|
53-857213 - E Ring [ More info ]
|
| #20 | 69150 | WASHER-WAVE @5 (1 required per assembly) |
  |
|
13-69150 - Wave Washer - Priced Individually [ More info ]
|
| #21 | 856906 | HANDLE-SHIFT (1 required per assembly) |
  |
|
856906 - Shift Handle [ More info ]
|
| #22 | 856908 | LINK-SHIFT (1 required per assembly) |
  |
|
856908 - Shift Link [ More info ] Unavailable |
| #23 | 856907 | LEVER-SHIFT (1 required per assembly) |
  |
|
856907 - Shift Lever [ More info ]
|
| #24 | 82239312 | SCREW (1 required per assembly) |
  |
|
10-822393 12 - SCREW (M5 x 12) [ More info ]
|
| #25 | 852494A5 | SHAFT-HORIZONTAL (Non-Bigfoot) (1 required per assembly) |
  |
|
852494A 5 - Shaft -horizontal [ More info ]
|
| #25 | 852494A6 | SHAFT-HORIZONTAL (Bigfoot) (1 required per assembly) |
  |
|
852494A 6 - Shaft -horizontal [ More info ]
|
| #26 | 855609 | LEVER-INTERLOCK (Bigfoot) (1 required per assembly) |
  |
|
855609 - Interlock Lever [ More info ]
|
| #26 | 826063 | LEVER-INTERLOCK (Non-Bigfoot) (1 required per assembly) |
  |
|
826063 - Interlock Lever [ More info ]
|
| #27 | 40011111 | SCREW (1 required per assembly) |
  |
|
10-40011111 - Screw [ More info ]
|
| #28 | 824992 | SPRING (1 required per assembly) |
  |
|
24-824992 - Spring, Detent [ More info ]
|
| #29 | 824993 | SPRING (1 required per assembly) |
  |
|
24-824993 - Spring, Backing [ More info ]
|
| #30 | 824994 | PLATE-SPRING (1 required per assembly) |
  |
|
824994 - Spring, Plate [ More info ]
|
| #31 | 82239312 | SCREW (2 required per assembly) |
| #32 | 8280471 | STRAP (1 required per assembly) |
  |
|
828047 1 - Strap [ More info ]
|
| #33 | 8M0204741 | SCREW @4 (2 required per assembly) — Replaces: 40011128, 8M4503518 |
| #34 | 8354191 | SEAL (1 required per assembly) |
  |
|
|
| #35 | 11083A30 | SWITCH ASSY (1 required per assembly) |
  |
|
87-11083A30 - Switch Assembly [ More info ]
|
| #36 | 8M0032846 | RETAINER (1 required per assembly) — Replaces: 120441 |
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #37 | 15920Q54 | ORDER 8M0092850 (1 required per assembly) |
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
| #38 | 816311T | TIE STRAP @100 (3 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #39 | 852472 | WIRE (1 required per assembly) |
  |
|
852472 - Wire [ More info ] Unavailable |
| #40 | 855888F | BRACKET (1 required per assembly) |
  |
|
855888F - Bracket [ More info ]
|
| #41 | 82239312 | SCREW (1 required per assembly) |
| #42 | 8M0052929 | SWITCH ASSEMBLY (Electric) (1 required per assembly) — Replaces: 813960A5 |
  |
|
878M0052929 - Switch Assembly [ More info ]
|
| #43 | 824923 | PLATE (Electric) (1 required per assembly) |
  |
|
824923 - Switch Plate [ More info ]
|
| #44 | 82470620 | SCREW (Electric) (2 required per assembly) |
  |
|
10-824706 20 - Screw [ More info ]
|
