Parts for 115 HP EFI 4-Stroke Mercury Outboard Motor Transom Bracket

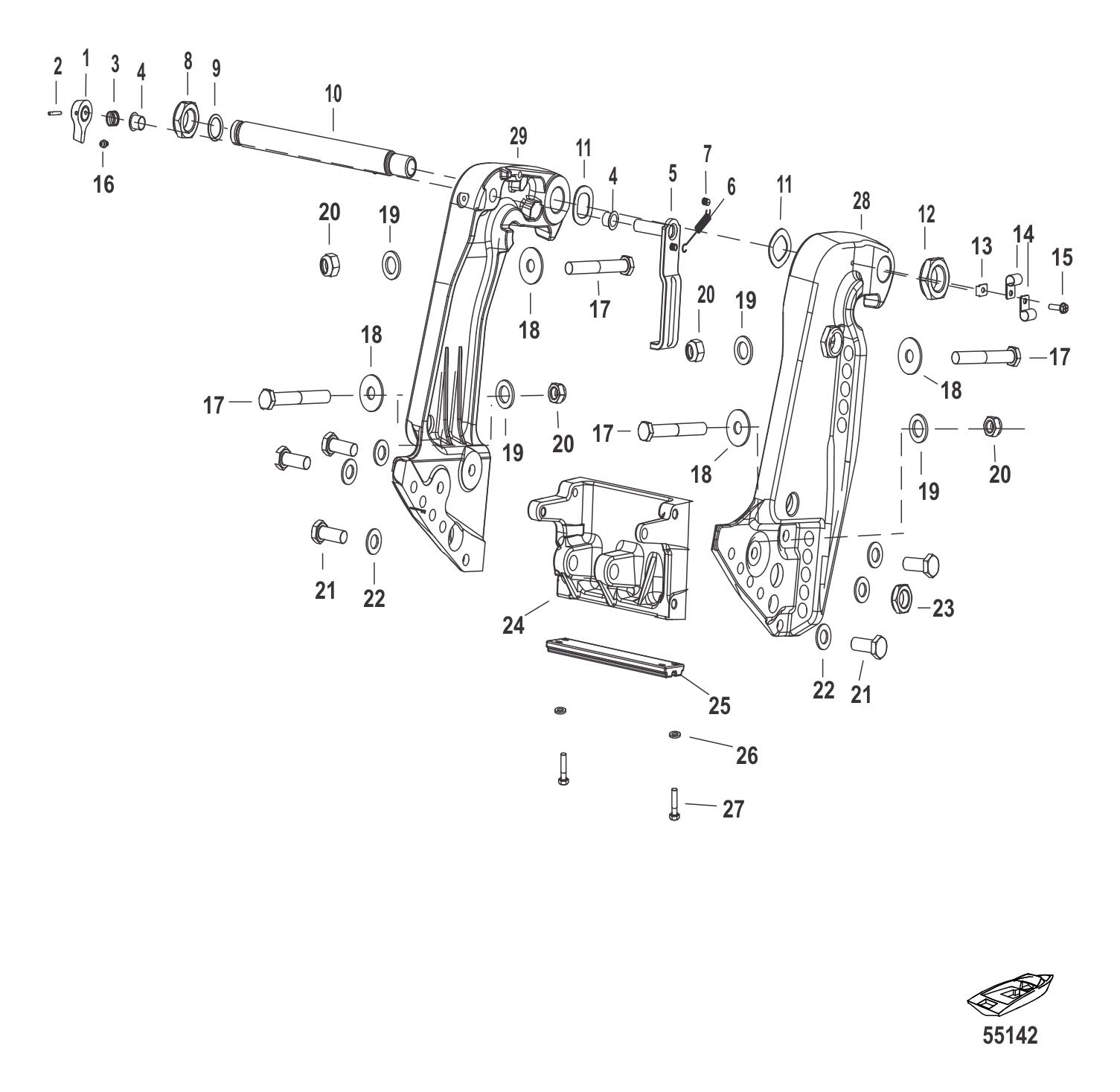

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 99633 | KNOB (1 required per assembly) |
  |
|
99633 - Tilt Lock Lever Knob [ More info ]
|
| #2 | 99615 | PIN-GROOVE (1 required per assembly) |
  |
|
17-99615 - Pin, Groove [ More info ]
|
| #3 | 830900 | SPRING (1 required per assembly) |
  |
|
24-830900 - Spring, Compression [ More info ]
|
| #4 | 65830 | NYLINER (2 required per assembly) |
  |
|
23-65830 - NyLiner [ More info ]
|
| #5 | 8M0109798 | LEVER-TILT LOCK (1 required per assembly) — Replaces: 821176T02 |
  |
|
8M0109798 - Tilt Lock Lever Assembly [ More info ]
|
| #6 | 830899 | SPRING (1 required per assembly) |
  |
|
24-830899 - Spring, Tension, Tilt Lock [ More info ]
|
| #7 | 893709 | PIN-GROOVED (1 required per assembly) |
  |
|
17-893709 - Pin -grooved [ More info ]
|
| #8 | 826135 | NUT (1 required per assembly) |
  |
|
11-826135 - Nut (1.0-14) [ More info ]
|
| #9 | 45711 | O RING @5 (1 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
| #10 | 826125A1 | TILT TUBE KIT (1 required per assembly) |
  |
|
826125A 1 - Tilt Tube Kit [ More info ]
|
| #11 | 88750 | WASHER-WAVE @2 (2 required per assembly) |
  |
|
13-88750 - Wave Washer - Priced Individually [ More info ]
|
| #12 | 826164 | NUT @2 (1 required per assembly) |
  |
11-826164 - Nut (7/8-14) [ More info ] Unavailable |
|
  |
|
11-8M0231351 - NUT @2 [ More info ] Unavailable |
| #13 | 8M0084613 | WASHER (1 required per assembly) — Replaces: 69205 |
  |
|
8M0084613 - Washer [ More info ]
|
| #14 | 22740 | CLIP (2 required per assembly) |
  |
|
|
| #15 | 878609 | SCREW (1 required per assembly) |
  |
|
10-878609 - Screw [ More info ]
|
| #16 | 8M0169588 | FITTING (1 required per assembly) — Replaces: 98727 |
  |
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #17 | 8M0149747 | SCREW (4 required per assembly) — Replaces: 677551 |
  |
|
108M0149747 - SCREW [ More info ]
|
| #18 | 8M0204648 | WASHER @5 (4 required per assembly) — Replaces: 28421 |
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #19 | 8M0204665 | WASHER @10 (4 required per assembly) — Replaces: 54012 |
  |
|
12-8M0204665 - WASHER Note: Priced Individually [ More info ]
|
| #20 | 82671117 | NUT (4 required per assembly) |
  |
|
11-826711 17 - Nut, (.500-20) [ More info ]
|
| #21 | 858771 | SCREW (5 required per assembly) |
  |
|
10-858771 - Screw [ More info ]
|
| #22 | 4002319 | WASHER @3 (6 required per assembly) |
  |
|
12-40023 19 - Washer (M10) [ More info ]
|
| #23 | 40114 | NUT (1 required per assembly) |
  |
|
11-40114 - Nut (M10 X 1.5) [ More info ]
|
| #24 | 8M0086406 | BRACKET-ANCHOR (1 required per assembly) |
  |
|
8M0086406 - Bracket-Anchor [ More info ]
|
| #25 | 818298Q1 | ANODE KIT(ALUM) (1 required per assembly) |
  |
|
97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ]
|
  |
|
18-6249A - Anode, Aluminum, 18-6249A [ More info ]
|
  |
|
18-6249 - Zinc Anode, 818298A1 [ More info ]
|
  |
|
97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ]
|
| #26 | 8M0204649 | WASHER @10 (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #27 | 8M0204707 | SCREW @5 (2 required per assembly) — Replaces: 4000330 |
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #28 | 8M0127680 | TRANSOM BRACKET S (1 required per assembly) — Replaces: 8M0091532 |
  |
|
14008M0127680 - Transom Bracket S [ More info ]
|
| #29 | 8M0127679 | TRANSOM BRACKET P (1 required per assembly) — Replaces: 8M0091531 |
  |
|
14008M0127679 - Transom Bracket P [ More info ]
|
