Parts for 225 XS 2-Stroke DFI Mercury Optimax Outboard Motor Starboard Center Main Oiling System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 XS > 1E002584 & Up > Starboard Center Main Oiling System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

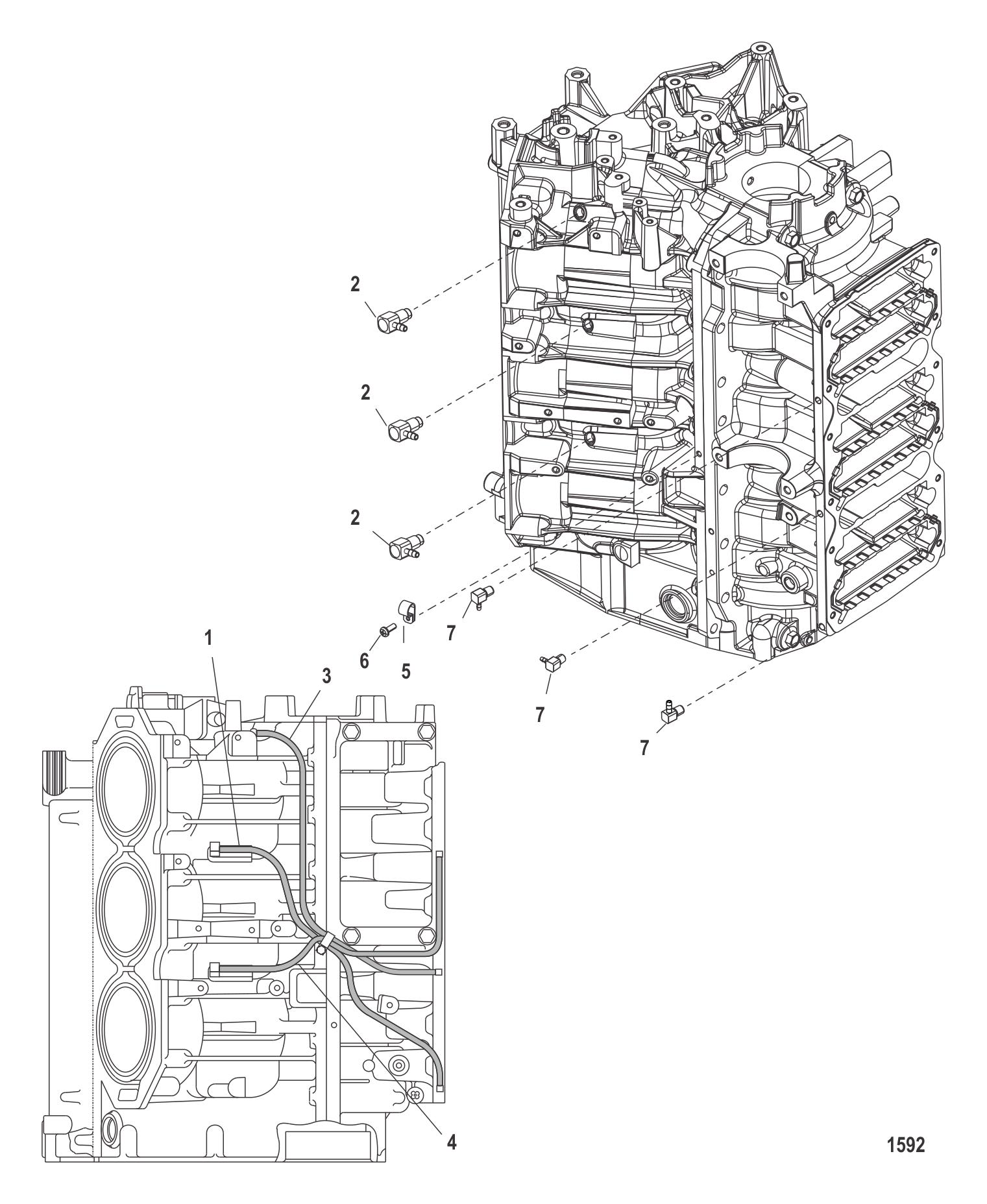

Starboard Center Main Oiling System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	843034A07	PH 225 PRO XS (1 required per assembly)
		61-843034A07 - Powerhead 225 Pro Xs [ More info ] Unavailable
#1	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 15.50 INCHES) (1 required per assembly) — Replaces: 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#2	8592352	CHECK VALVE (3 required per assembly)
		21-859235 2 - Check Valve [ More info ] $32.19 Available to Order: Shipping delay up to 10 days.
#3	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 16.50 INCHES) (1 required per assembly) — Replaces: 85606065
#4	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 15 INCHES) (1 required per assembly) — Replaces: 85606065
#5	23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#6	878608	SCREW @2 (1 required per assembly)
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#7	887801	ELBOW (3 required per assembly)
		22-88780 1 - Elbow [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
