Parts for 100 HP EFI 4-Stroke Mercury Outboard Motor Cylinder Block

Revise Search: Outboard > 4-Stroke Mercury Outboard > 100 HP EFI > 2B095049 & Up > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

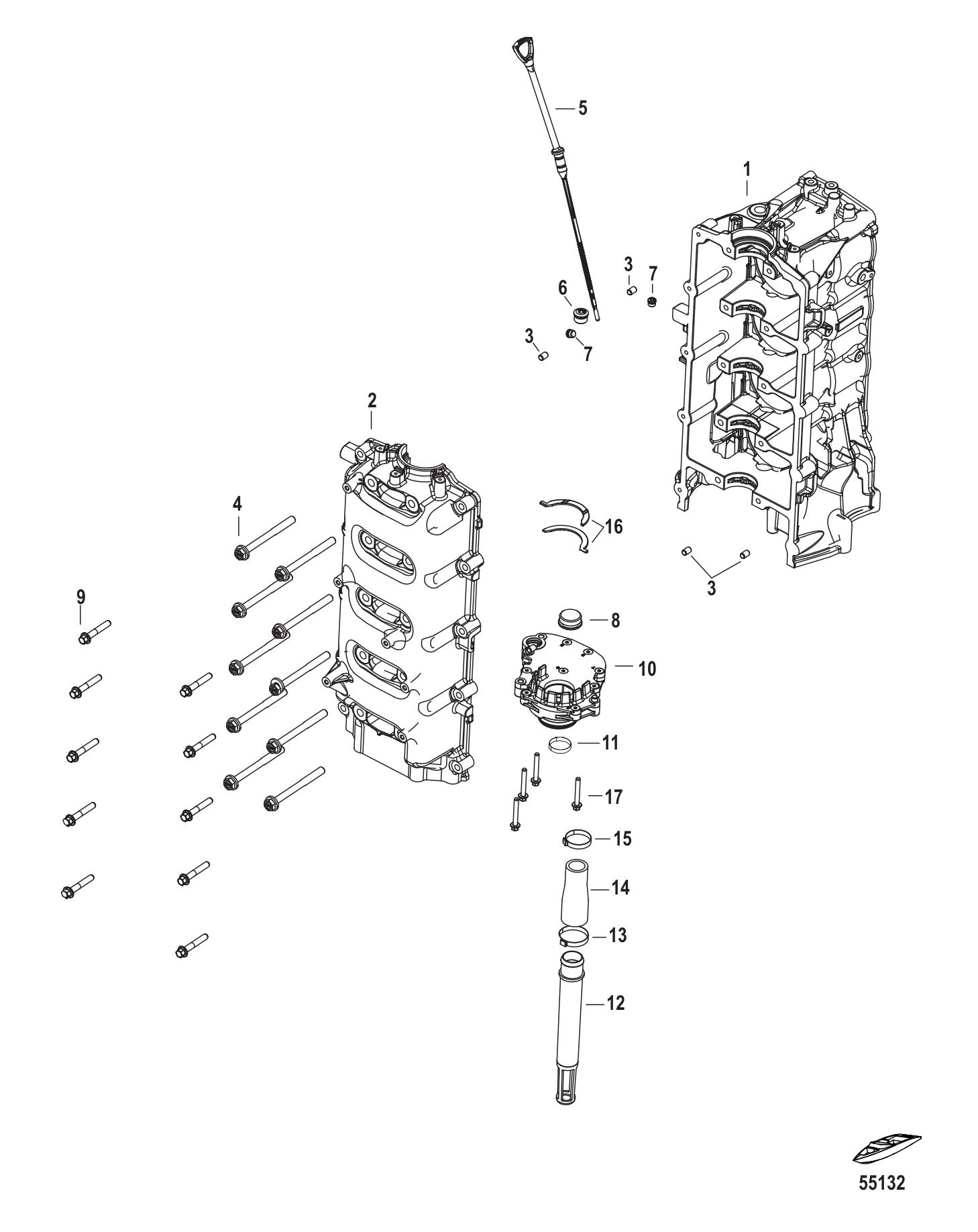

Cylinder Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0090807	OIL PICKUP ASSY (1 required per assembly)
		8M0090807 - OIL PICKUP ASSY [ More info ] $49.49 Available to Order: Shipping delay up to 10 days.
#-	8M0122427	PH 115 HP 4S 115, 80 Jet [2B192013] & Up (1 required per assembly) — Replaces: 8M0059003, 8M0114713
		618M0122427 - PH 115 HP 4S [ More info ] Unavailable
#-	8M0114714	PH 75-100 HP 4S (1 required per assembly) — Replaces: 8M0058847
		618M0114714 - PH 75-100 HP 4S [ More info ] Unavailable
#-	8M0090765	POWERHEAD ASY,SHO (1 required per assembly)
		618M0090765 - Powerhead ASY,SHO [ More info ] Unavailable
#1	8M0091361	CYLINDER BLOCK (1 required per assembly)
		8008M0091361 - Cylinder Block [ More info ] $1,571.49 Available to Order: Shipping delay up to 10 days.
#2	NSS	NOT SOLD SEPARATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	893540	PIN DOWEL, 8X12 LONG (4 required per assembly)
		17-893540 - Dowel Pin [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#4	8M0059955	SCREW (M10 X 1.5 X 110) (10 required per assembly)
		108M0059955 - Screw-M10X1.5X110 [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#5	8M0060353	OIL DIPSTICK ASSY (1 required per assembly)
		8M0060353 - OIL Dipstick ASSY [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#6	8M0087451	PLUG-18MM (1 required per assembly) — Replaces: 8M0047995
		198M0087451 - PLUG-18MM [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#7	8M0087447	PLUG @2 (2 required per assembly) — Replaces: 8M0048146
		198M0087447 - Plug (10MM) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#8	8M0087454	PLUG - 30 MM (1 required per assembly) — Replaces: 8M0047997
		198M0087454 - PLUG - 30 MM [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#9	8M0193659	SCREW (10 required per assembly) — Replaces: 895810050
		10-8M0193659 - SCREW [ More info ] Unavailable
#10	8M0117703	OIL PUMP ASSEMBLY (1 required per assembly) — Replaces: 8M0090808
		8M0117703 - Oil Pump [ More info ] $230.49 Available to Order: Shipping delay up to 10 days.
#11	8M6001577	O-RING M6 X 46 (1 required per assembly)
		258M6001577 - O-Ring M6X46 [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#12	8M0090807	OIL PICKUP ASSEMBLY (1 required per assembly) — Replaces: 8M0048484
#13	8M0187146	CLAMP (1 required per assembly) — Replaces: 8M6000385
		548M0187146 - CLAMP Note: Priced Individually [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#14	8M0078615	HOSE - OIL PICKUP (1 required per assembly)
		328M0078615 - Hose, OIL PICK UP [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#15	8M6003156	CLAMP @2 (1 required per assembly)
		548M6003156 - Clamp - Priced Individually [ More info ] $1.80 1 In Stock.
#16	8M6002402	THRUST WASHR REAR (2 required per assembly)
		308M6002402 - Rear Thrust Washer [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#17	8M0103810	SCREW (4 required per assembly) — Replaces: 88552545
		108M0103810 - Screw (M6 x 45 MM) Stai [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
