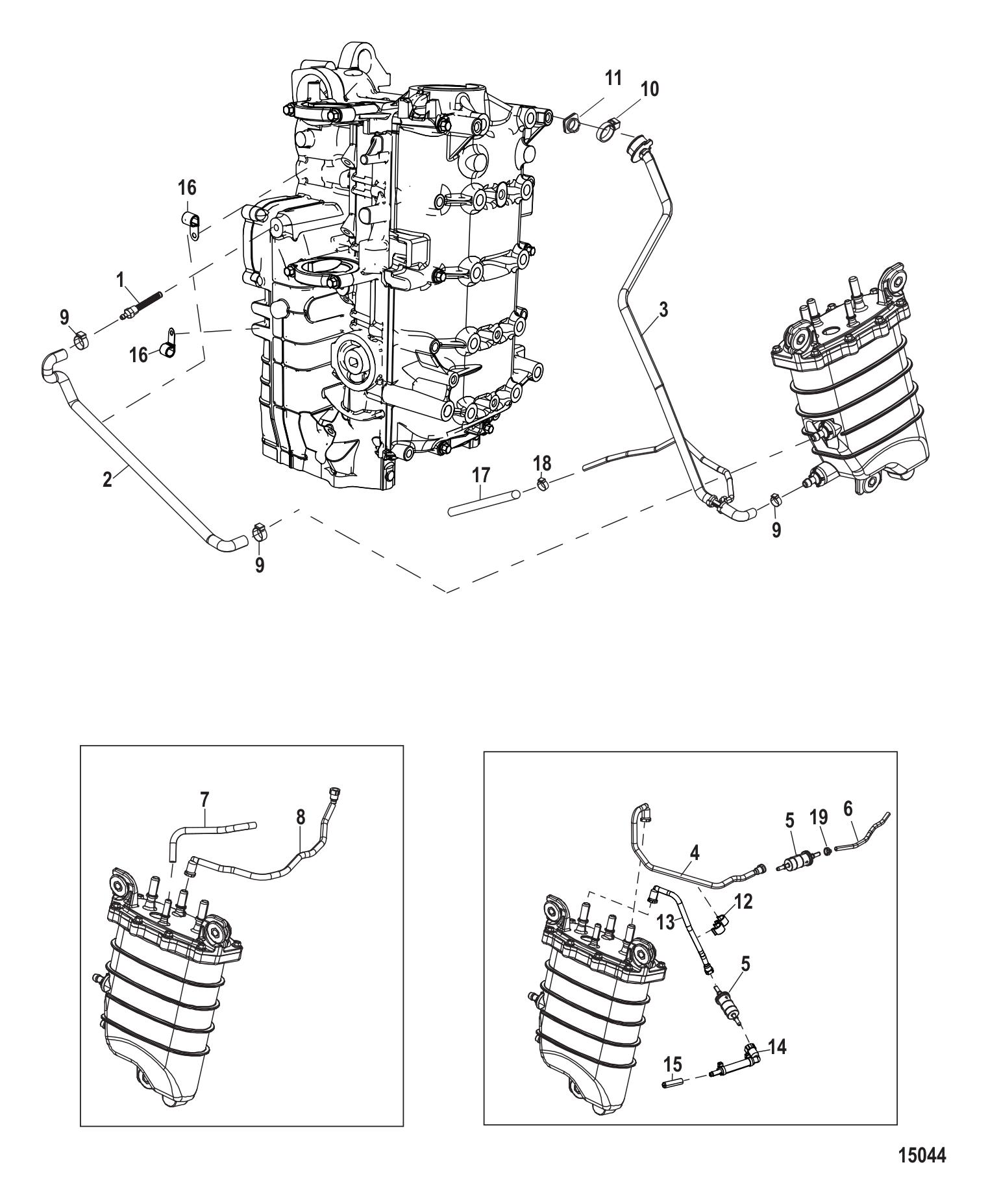

Parts for 100 HP EFI 4-Stroke Mercury Outboard Motor Fuel Supply Module Hoses
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M8033014 | PH L4NA 4S (1 required per assembly) — Replaces: 897148A09 |
  |
|
8M8033014 - PH L4NA 4S [ More info ] Unavailable |
| #- | 897148A08 | PH L4NA 4S (1 required per assembly) |
  |
|
61-897148A08 - Powerhead L4NA 4S [ More info ] Unavailable |
| #1 | 8348084 | STRAINER (1 required per assembly) |
  |
|
35-834808 4 - Strainer [ More info ]
|
| #2 | 8M0040122 | HOSE BLOCK STRAINER TO FUEL SUPPLY MODULE [1B759588] & Up (1 required per assembly) — Replaces: 897775, 8M0009120 |
  |
|
32-8M0040122 - Hose - Strainer To Supply Module [ More info ]
|
| #3 | 897795A01 | HOSE ASSEMBLY FUEL SUPPLY MODULE OUTLET (1 required per assembly) |
  |
|
32-897795A01 - Hose - Fuel Supply Module [ More info ]
|
| #4 | 8M0043800 | HOSE FUEL SUPPLY MODULE TO HIGH PRESSURE FUEL FILTER [1B418732] & Below (1 required per assembly) — Replaces: 897649001, 8M0012211 |
  |
|
32-8M0043800 - 32-8M0043800 - HOSE [ More info ] Unavailable Replaced by 32-8M0072517 |
  |
|
328M0072517 - Hose [ More info ] Unavailable |
| #4 | 8M0072517 | HOSE FUEL SUPPLY MODULE TO HIGH PRESSURE FUEL FILTER [1B794599] & Up (1 required per assembly) — Replaces: 8M0012211, 8M0043800 |
| #5 | 879885Q | FUEL FILTER @2 (2 required per assembly) — Replaces: 879885T |
  |
|
35-879885Q - Fuel Filter, 5/16 Inch, Priced Individually [ More info ]
|
  |
|
18-7718 - Fuel Filter, 5/16 Inch, 35-879885T [ More info ]
|
  |
|
35-879885K - Fuel Filter, 5/16 Inch, Priced Individually [ More info ]
|
  |
|
35-35205 - Fuel Filter, 879885T or Q [ More info ]
|
| #6 | 8M0072519 | HOSE FILTER TO RAIL [1B794599] & Up (1 required per assembly) — Replaces: 8M0008617, 8M0043801 |
  |
|
328M0072519 - Hose [ More info ]
|
| #7 | 8M0108355 | HOSE (57 INCHES BULK) CUT TO 8.25 INCHES (1 required per assembly) — Replaces: 830756109, 8M0047428 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #8 | 8M0072516 | HOSE FUEL SUPPLY MODULE TO VENT CANNISTER [1B418768] & Up (1 required per assembly) — Replaces: 897654002, 8M0012212 |
  |
|
328M0072516 - Hose [ More info ]
|
| #9 | 13791 | CLAMP @5 (3 required per assembly) — Replaces: 888988015 |
  |
54-13791 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0214911 - CLAMP @5 [ More info ] Unavailable |
| #10 | 816311T | TIE STRAP @100 (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #11 | 8M0039078 | GROMMET (1 required per assembly) — Replaces: 859251 |
  |
|
8M0039078 - Grommet [ More info ]
|
| #12 | 888523001 | CLIP (1 required per assembly) |
  |
|
888523001 - Clip [ More info ]
|
| #13 | 8M0043799 | HOSE FILTER TO FUEL SUPPLY MODULE [1B419126] & Below (1 required per assembly) — Replaces: 8M0000915, 8M0012213 |
  |
|
32-8M0043799 - 32-8M0043799 - HOSE [ More info ] Unavailable Replaced by 32-8M0072518 |
  |
|
328M0072518 - Hose [ More info ] Unavailable |
| #13 | 8M0072518 | HOSE FILTER TO FUEL SUPPLY MODULE [1B794599] & Up (1 required per assembly) — Replaces: 8M0012213, 8M0043799 |
| #14 | 8M0043798 | HOSE FUEL INLET [1B794599] & Up (1 required per assembly) — Replaces: 8M0000914 |
  |
|
32-8M0043798 - Hose - Fuel Inlet [ More info ] Unavailable |
| #15 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #16 | 814634 | CLAMP (3 required per assembly) |
  |
|
54-814634 - Clamp [ More info ]
|
| #17 | 8M0007865 | TUBE NYLON (1 required per assembly) |
  |
|
8M0007865 - Sleeve [ More info ]
|
| #18 | 816311T | TIE STRAP @100 (2 required per assembly) |
| #19 | 8M0204696 | CLAMP @5 (1 required per assembly) — Replaces: 888988028, 855697 |
  |
|
54-8M0204696 - CLAMP Note: Priced Individually [ More info ]
|
