Parts for V-200XRi (EFI) 2-Stroke EFI Mercury Outboard Motor Reed Block & Cylinder Head

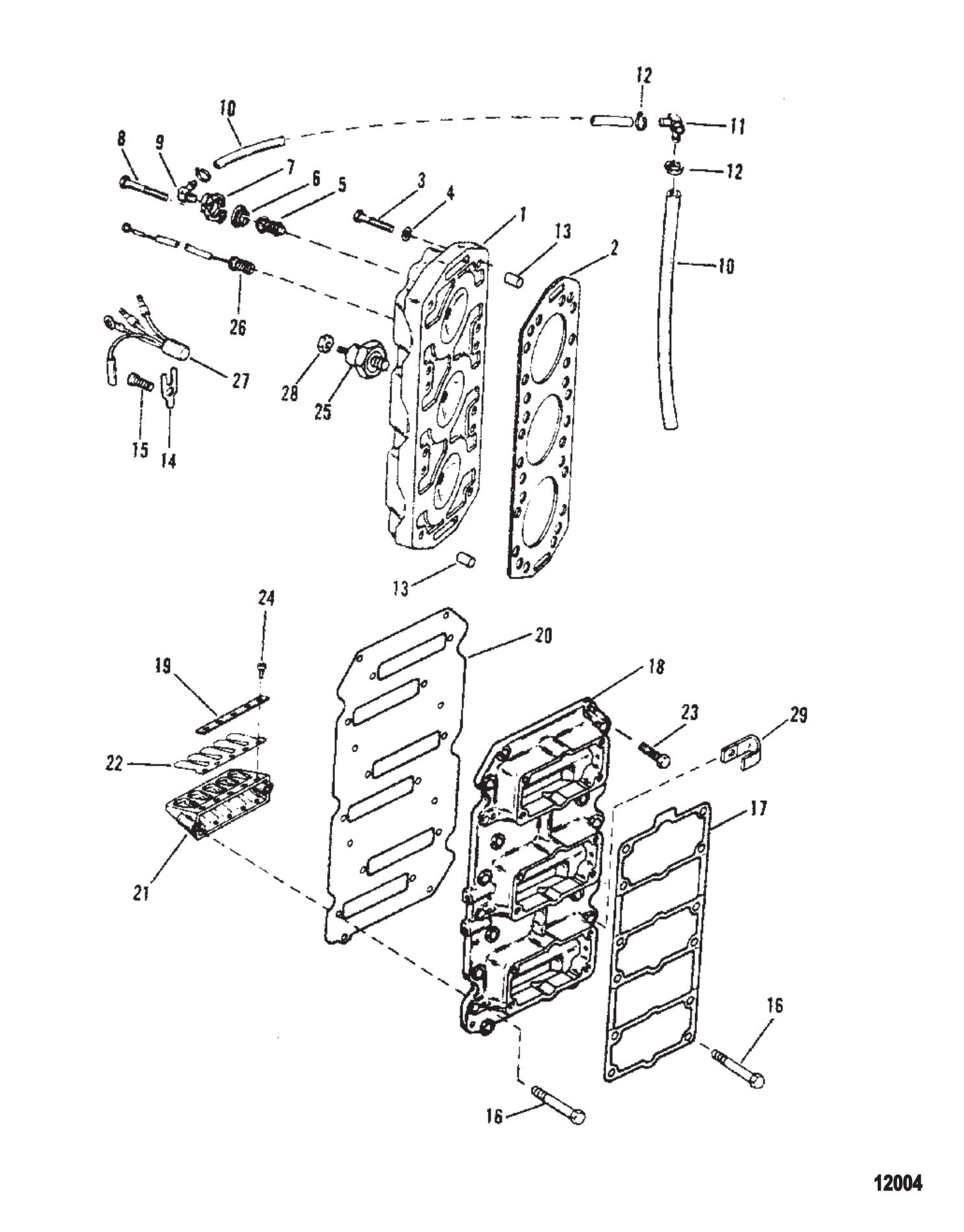

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 815791A92 | GASKET SET (175) (1 required per assembly) — Replaces: 815810A90, 815809A90 |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
  |
|
27-27673 - Gasket Set [ More info ]
|
| #1 | 187899 | CYLINDER HEAD (175) (2 required per assembly) — Replaces: 187893, 187896 |
  |
18789 9 - Cylinder Head [ More info ] Unavailable |
|
  |
|
18789F 1 - Cylinder Head [ More info ]
|
| #1 | 184889 | HEAD (200) (2 required per assembly) — Replaces: 184883, 184886 |
  |
18488 9 - Cylinder Head [ More info ] Unavailable |
|
  |
|
18488F 2 - Cylinder Head,NLA [ More info ] Unavailable |
| #2 | 18786T | GASKET (175) (2 required per assembly) — Replaces: 187861 |
  |
|
27-18786T - Gasket [ More info ]
|
  |
|

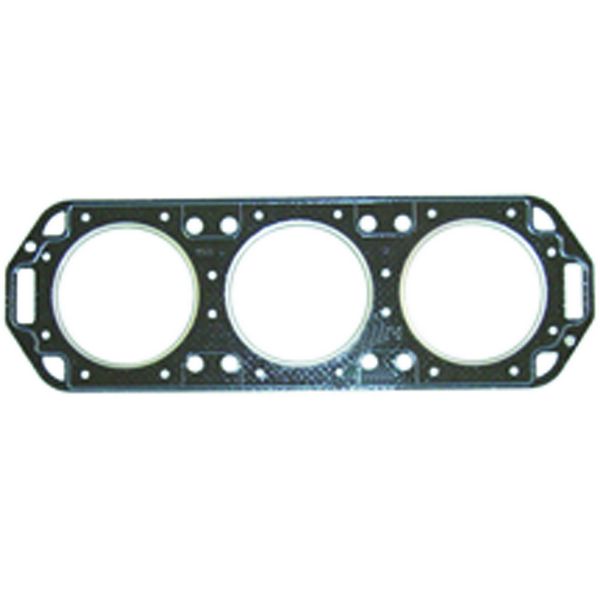

18-3871 - Head Gasket, 27-18786 1 [ More info ]
|
| #2 | 822844T04 | GASKET (200) (2 required per assembly) — Replaces: 184721, 8228441 |
  |
27-822844T04 - Gasket [ More info ] Unavailable |
|
  |
|
27-822844T05 - Gasket [ More info ]
|
  |
|
18-3864 - Head Gasket 27-822844 [ More info ]
|
| #3 | 98534 | SCREW (.375-16 X 2.30) CYLINDER HEAD (QTY. OF 24 ON 175) (23 required per assembly) |
  |
|
10-98534 - Screw [ More info ] Unavailable |
| #3 | 13450 | SCREW (.375-16 X 2.30) (SPECIAL - 200) (1 required per assembly) |
  |
|
10-13450 - Screw, NLA [ More info ]
|
| #4 | 25909 | WASHER (.406 X .812 X .065) CYLINDER HEAD SCREW (24 required per assembly) |
  |
|
12-25909 - Washer (.406 X .812 X .065) [ More info ]
|
| #5 | 75692 | THERMOSTAT-143 (2 required per assembly) |
  |
|
75692 - Thermostat, 147 Degrees [ More info ]
|
  |
|
18-3553 - Thermostat, 143 Degrees, 75692 [ More info ]
|
  |
|
75-02658 - OMC Thermostat Kit, 5005440 (dual) [ More info ]
|
  |
|
75-00456-IR - Thermostat Kit, 75692Q03,T2,Q2 [ More info ]
|
  |
|
75-00403 - Thermostat, 5005440 [ More info ]
|
| #6 | 8M0204714 | GASKET @4 THERMOSTAT (2 required per assembly) — Replaces: 62386, 62386001 |
  |
|
27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ]
|
| #7 | 90390A1 | COVER KIT THERMOSTAT (2 required per assembly) |
  |
|
90390A 1 - Thermostat Cover Kit [ More info ]
|
| #8 | 35386 | SCREW (.312-18 X 1.00) THERMOSTAT COVER (4 required per assembly) |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #9 | 687271 | FITTING (.250-18) 90 DEGREE - BRASS ELBOW - WATER HOSES (1 required per assembly) — Replaces: 68727 |
  |
|
22-68727 1 - Fitting [ More info ]
|
| #10 | 77653101 | HOSE (48.00 INCHES BULK) WATER DISTRIBUTION (2 required per assembly) — Replaces: 7765377, 7765378 |
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #11 | 68728 | FITTING THERMOSTAT COVER (1 required per assembly) |
  |
|
22-68728 - Fitting [ More info ] Unavailable |
| #12 | 816311T | TIE STRAP (8.00 INCHES) WATER HOSES (4 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #13 | 63779 | PIN-DOWEL @3 (4 required per assembly) |
  |
|
17-63779 - Pin, Dowel (.250 X .625) [ More info ]
|
| #14 | 137151 | RETAINER SENSOR AND SENDER (2 required per assembly) — Replaces: 13715 |
  |
|
13715 1 - Retainer [ More info ]
|
| #15 | 98257 | SCREW (.312-18 X .500) RETAINER (2 required per assembly) |
  |
|
10-98257 - Screw [ More info ]
|
| #16 | 92160 | SCREW (.250-20 X .750) STAINLESS STEEL (175) (6 required per assembly) |
  |
|
10-92160 - Screw [ More info ]
|
| #16 | 90197 | SCREW (.250-20 X 1.125) (175) (6 required per assembly) |
  |
|
10-90197 - Screw [ More info ]
|
| #16 | 28668 | SCREW (.250-20 X .875) STAINLESS STEEL REED BLOCK ATTACHING (200) (12 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #17 | 167371 | GASKET ADAPTOR PLATE (1 required per assembly) |
  |
|
27-16737 1 - Gasket [ More info ]
|
| #18 | 17735A2 | ADAPTER PLATE ASSEMBLY (175) (1 required per assembly) |
  |
|
17735A 2 - Adaptor Plate, NLA [ More info ]
|
| #18 | 12124A3 | PLATE ASSEMBLY (200) (1 required per assembly) |
  |
|
12124A 3 - Adaptor Plate Assembly [ More info ] Unavailable |
| #19 | 961832 | CLAMP REED (175) (12 required per assembly) |
  |
|
96183 2 - Clamp - Reed [ More info ]
|
| #19 | 903911 | CLAMP REED (200) (12 required per assembly) |
  |
|
[ More info ] Unavailable |
| #20 | 146972 | GASKET (175) (1 required per assembly) |
  |
|
27-14697 2 - Gasket [ More info ]
|
  |
|
18-0644 - Gasket, 27-14697 2 [ More info ]
|
| #20 | 883775 | GASKET (200) (1 required per assembly) — Replaces: 813859, 881034 |
  |
|
27-883775 - Gasket [ More info ]
|
| #21 | 75953 | REED BLOCK (175) (6 required per assembly) |
  |
|
75953 - Reed Block [ More info ]
|
| #21 | 87692 | REED BLOCK (200) (6 required per assembly) |
  |
|
87692 - Reed Block, NLA [ More info ] Unavailable |
| #22 | 75362A1 | REED ASSEMBLY (175) (6 required per assembly) |
  |
|
34-75362A 1 - Reed Kit [ More info ] Unavailable |
| #22 | 19719A1 | REED ASSEMBLY (200) (6 required per assembly) |
  |
|
34-19719A 1 - Reed Kit [ More info ]
|
| #23 | 28668 | SCREW (.250-20 X .875) STAINLESS STEEL ADAPTOR PLATE (8 required per assembly) |
| #24 | 823588 | SCREW (#8-32 X .250) REEDS TO REED BLOCK (QTY. OF 60 ON 175) (84 required per assembly) — Replaces: 14783 |
  |
|
10-823588 - Screw - Priced Individually [ More info ]
|
| #25 | 825164A1 | SENSOR ASSEMBLY DETONATION (200) (1 required per assembly) — Replaces: 13192 |
  |
|
825164A 1 - Detonation Sensor, NLA [ More info ] Unavailable |
| #26 | 97465 | SENDER TEMPERATURE (STARBOARD) (1 required per assembly) |
  |
|
97465 - Temperature Sender [ More info ]
|
| #27 | 13536A6 | SENSOR ASSEMBLY TEMPERATURE (PORT) (1 required per assembly) |
  |
|
13536A 6 - Temperature Sensor Assembly [ More info ]
|
| #28 | 45076 | NUT (#10-32) BRASS (200) (1 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #29 | 55098 | J CLIP (200) (1 required per assembly) |
  |
|
54-55098 - J Clip - Priced Individually [ More info ]
|
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
