Parts for V-200XRi (EFI) 2-Stroke EFI Mercury Outboard Motor Driveshaft Housing & Exhaust Tube

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-200XRi (EFI) > 0C291520 - 0D081999 - USA > Driveshaft Housing & Exhaust Tube

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

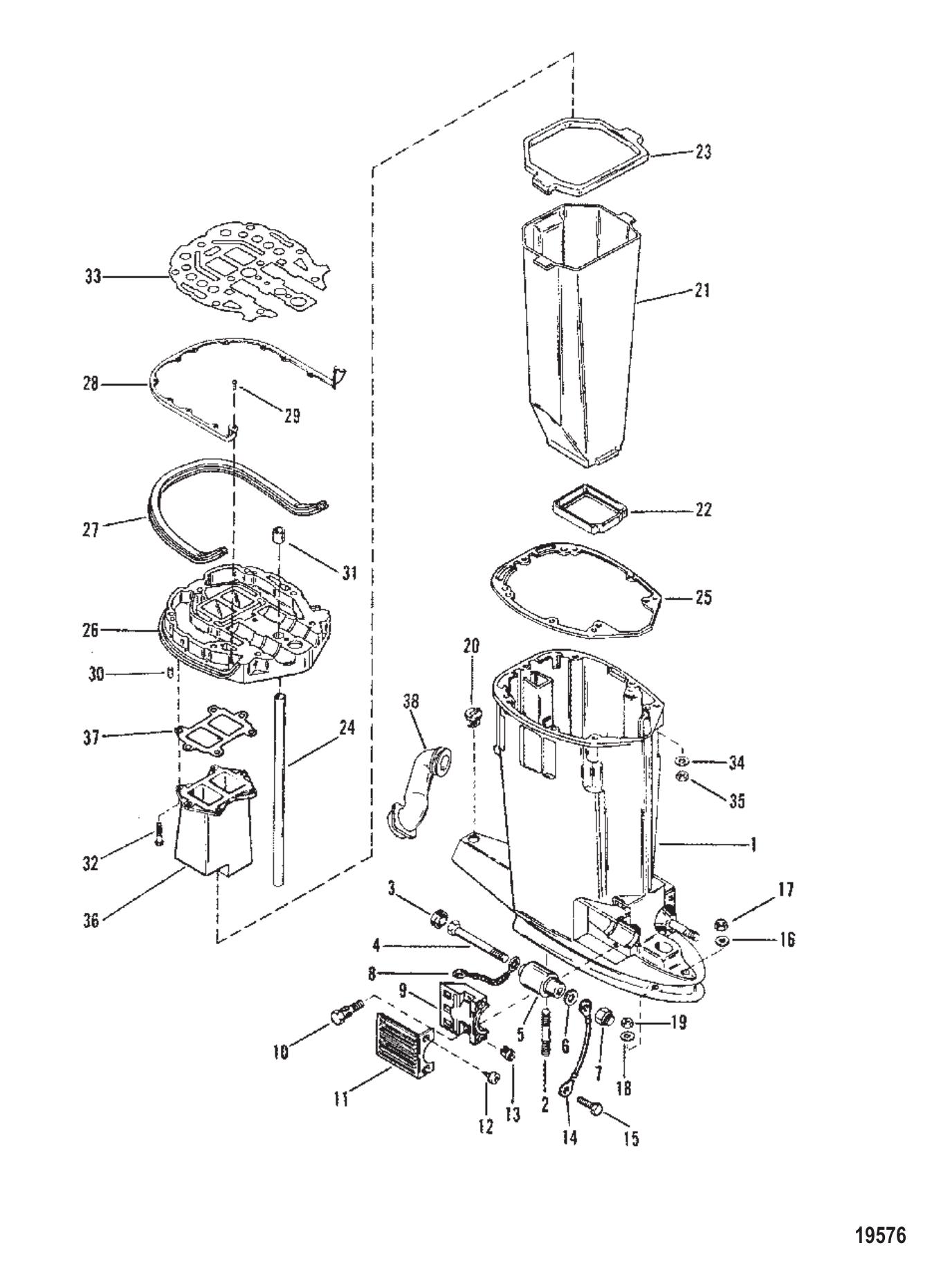

Driveshaft Housing & Exhaust Tube

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	815791A92	GASKET SET (175) (1 required per assembly) — Replaces: 815810A90, 815809A90
		27-815791A92 - Engine Gasket Set [ More info ] $207.49 Available to Order: Shipping delay up to 10 days.
#1	8343T10	HOUSING ASSEMBLY DRIVESHAFT - BLACK - LONG (GRAY) (1 required per assembly) — Replaces: 8343A10, 8343A11, 8343T11
		1590-8343T10 - Drive Shaft Housing - Black [ More info ] $1,185.99 Available to Order: Shipping delay up to 10 days.
#2	56295	STUD (.437 X 2.69) DRIVE SHAFT HSG./GEAR HSG. (2 required per assembly)
		16-56295 - Stud - Priced Individually [ More info ] $12.39 10 In Stock.
#3	25067	BUMPER LOWER MOUNT SCREW (2 required per assembly)
		25067 - Bumper, NLA [ More info ] $11.97 10+ In Stock.
#4	898831	SCREW (.500-20 X 6.220) LOWER MOUNT (2 required per assembly) — Replaces: 63474
		10-898831 - Screw [ More info ] $22.96 Available to Order: Shipping delay up to 10 days.
#5	77327	MOUNT LOWER (2 required per assembly) — Replaces: 78249
		77327 - Mount [ More info ] $161.49 Available to Order: Shipping delay up to 10 days.
#6	49339	WASHER (.8125) LOWER MOUNT SCREW (2 required per assembly)
		12-49339 - Washer, (.8125) [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#7	25096	NUT LOWER MOUNT SCREW (2 required per assembly)
		11-25096 - Nut, Mount Screw [ More info ] $22.62 10+ In Stock.
#8	88238A10	CABLE ASSY (1 required per assembly) — Replaces: 88238A1
		88238A10 - Cable Assembly [ More info ] $8.29 1 In Stock.
#9	8M0036782	CLAMP LOWER MOUNT (2 required per assembly) — Replaces: 67076
		54-8M0036782 - Clamp [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#10	66727	SCREW (.312-18 X 1.250) LOWER MOUNT CLAMP ATTACHING (4 required per assembly)
		10-66727 - Screw - Priced Individually [ More info ] $2.99 2 In Stock.
#11	8M4500752	COVER LOWER MOUNT CLAMP (BLACK) (2 required per assembly) — Replaces: 67077T, 8M0001130
		100-8M4500752 - Cover [ More info ] $24.83 1 In Stock.
#11	67077T	COVER BLACK LOWER MOUNT CLAMP (GRAY) (2 required per assembly) — Replaces: 67077T6, 67077F1
		67077T - Lower Black Cover [ More info ] Unavailable
		8M0001130 - Cover [ More info ] Unavailable
#12	88417	SCREW (#12-24 X .620) COVER ATTACHING (4 required per assembly)
		10-88417 - Screw - Priced Individually [ More info ] $1.80 2 In Stock.
#13	35521	NUT NYLON - COVER TO CLAMP SCREW (4 required per assembly)
		11-35521 - Nut - Priced Individually [ More info ] $2.79 $1.57 10+ In Stock.
#14	88238A10	CABLE ASSY (1 required per assembly) — Replaces: 88238A1
#15	41508	SCREW (.250-20 X .500) STAINLESS STEEL GROUND WIRE (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#16	48926	WASHER GEAR HOUSING STUD (1 required per assembly)
		12-48926 - Washer [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#17	29489	NUT GEAR HOUSING STUD (CAP) (1 required per assembly)
		11-29489 - Nut, Gear Hosuing Studs [ More info ] $14.35 10+ In Stock.
#18	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL GEAR HOUSING STUD (2 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 10 In Stock.
#19	8M0204653	NUT @10 GEAR HOUSING STUD (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 10+ In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#20	64649	PLUG DRIVE SHAFT HOUSING (1 required per assembly)
		19-64649 - Plug - Priced Individually [ More info ] $5.29 3 In Stock.
#21	18276T	EXHAUST TUBE (1 required per assembly) — Replaces: 18276
		18276T - Exhaust Tube [ More info ] $249.99 Available to Order: Shipping delay up to 10 days.
#22	66350001	SEAL EXHAUST TUBE (LOWER) (1 required per assembly) — Replaces: 66350
		66350001 - Lower Seal [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#23	8M0039076	SEAL EXHAUST TUBE (UPPER) (1 required per assembly) — Replaces: 177261
		8M0039076 - Seal [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#24	8M0042788	TUBE-WATER-LONG WATER (1 required per assembly) — Replaces: 67295, 8590971
		32-8M0042788 - Water Tube - Long [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#25	991734	GASKET DRIVE SHAFT HOUSING TO PLATE (1 required per assembly) — Replaces: 991732
		27-99173 4 - Gasket [ More info ] $20.56 4 In Stock.
#26	18233A8	PLATE ASSEMBLY DRIVESHAFT HOUSING DRIVE SHAFT HOUSING (1 required per assembly) — Replaces: 18233A2, 18233A3
		18233A 8 - Plate-DSH [ More info ] Unavailable
		18233A20 - Plate -dsh [ More info ] $721.49 Available to Order: Shipping delay up to 10 days.
#27	8M0043165	SEAL-27.00 INCH BRACKET (1 required per assembly) — Replaces: 8147012
		8M0043165 - Seal -27.00 Inch [ More info ] $46.49 Available to Order: Shipping delay up to 10 days.
#28	68011	BRACKET SEAL RETAINING (1 required per assembly)
		68011 - Seal Retaining Bracket [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#29	878608	SCREW (#10-16 X .500) BRACKET TO PLATE (12 required per assembly) — Replaces: 812832
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#30	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) LOCATING (2 required per assembly) — Replaces: 20033
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#31	38970	SEAL WATER TUBE (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 1 In Stock.
#32	90192	SCREW (.250-20 X .750) STAINLESS STEEL EXTENSION TO PLATE (6 required per assembly)
		10-90192 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#33	183076	GASKET DRIVE SHAFT HOUSING PLATE (1 required per assembly) — Replaces: 183071
		27-18307 6 - Gasket [ More info ] $25.29 Available to Order: Shipping delay up to 10 days.
		18-0643 - Gasket, 27-18307 6 [ More info ] $23.42 In Stock
#34	20553	WASHER (.406 X .734 X .063) POWER HEAD STUD (4 required per assembly) — Replaces: 25970
		12-20553 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#35	69254	NUT POWER HEAD STUD (4 required per assembly)
		11-69254 - Nut, (3/4-24) [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#36	17303T1	EXH. EXTENSION (175) (1 required per assembly) — Replaces: 17303
		17303T 1 - EXH. EXTENSION,NLA [ More info ] Unavailable
#36	419424	EXTENSION EXHAUST (200) (1 required per assembly) — Replaces: 41942T, 41942F3
		41942 4 - EXTENSION-EXHAUST [ More info ] Unavailable
		879288T71 - Extension - Exhaust [ More info ] $173.49 Available to Order: Shipping delay up to 10 days.
#37	782461	GASKET EXHAUST EXTENSION (1 required per assembly) — Replaces: 78246
		27-78246 1 - Gasket [ More info ] $11.19 $8.96 3 In Stock.
#38	814618	BOOT IDLE EXHAUST (1 required per assembly)
		814618 - Idle Exhaust Boot, NLA [ More info ] $86.22 6 In Stock.
