Parts for V-200 EFI (2.5L) 2-Stroke EFI Mercury Outboard Motor Air Handler

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-200 EFI (2.5L) > 0T409000 - 0T800999 - USA > Air Handler

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

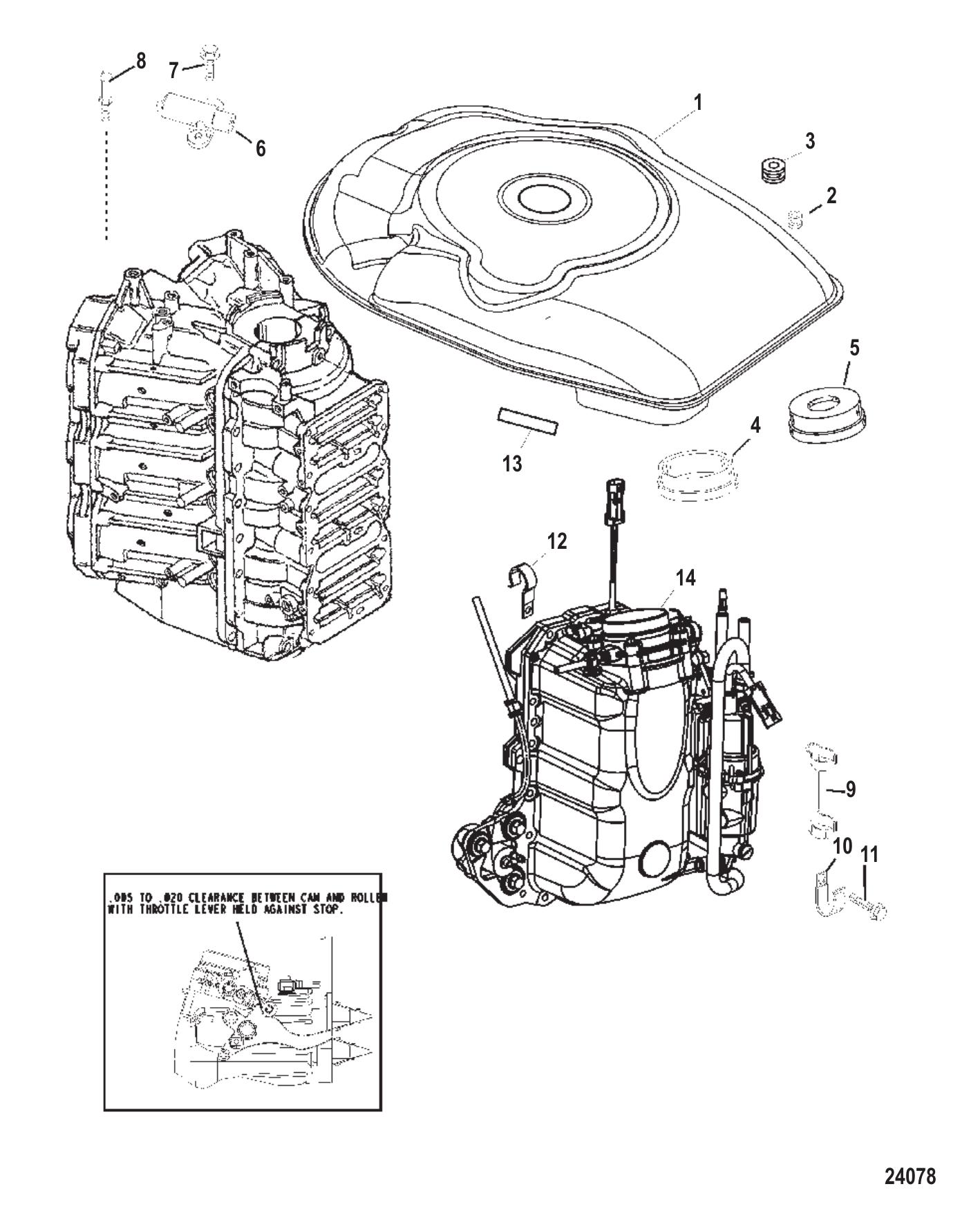

Air Handler

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0191917	PH 150 200EFI 2.5 (150) (1 required per assembly) — Replaces: 883511T02, 883511T04
		8M0191917 - PH 150 200EFI 2.5 [ More info ] Unavailable
#-	883600T04	PH 175 EFI 2.5L (175/200) (1 required per assembly) — Replaces: 883600T02
		883600T04 - Powerhead 175 EFI 2.5L [ More info ] Unavailable
#1	880194T05	COVER ASY-F WHEEL (1 required per assembly) — Replaces: 880194T1, 880194T3
		880194T05 - Flywheel Cover Assembly [ More info ] $427.49 Available to Order: Shipping delay up to 10 days.
#2	840525	GROMMET (2 required per assembly)
		25-840525 - Grommet [ More info ] Unavailable
#3	20116	GROMMET (1 required per assembly)
		25-20116 - Grommet - Priced Individually [ More info ] $4.79 10+ In Stock.
#4	855613	GROMMET (175/200) (1 required per assembly)
		25-855613 - Grommet, Throttle Body [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#5	882840	GROMMET (150) (1 required per assembly)
		25-882840 - Grommet [ More info ] $43.52 1 In Stock.
#6	8M0082988	SENSOR ASSY (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#7	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#8	8215832	PIN (SPECIAL) (1 required per assembly)
		821583 2 - Pin (Special) [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#9	8261151	CLAMP (1 required per assembly)
		826115 1 - Clamp [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#10	883080	J CLIP (2 required per assembly)
		54-883080 - J Clip [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#11	817504	SCREW (12 required per assembly)
		10-817504 - Screw [ More info ] $4.79 2 In Stock.
#12	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#13	881865	DECAL-CAUTION (1 required per assembly)
		37-881865 - Decal -Caution [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#14	880131T05	AIR/FUEL HANDLER (See Breakdown on Air Handler Components) (1 required per assembly) — Replaces: 880131T2
		880131T05 - AIR/FUEL HANDLER [ More info ] Unavailable
