Parts for V-200 (EFI) 2-Stroke EFI Mercury Outboard Motor Bleed System (Port)

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-200 (EFI) > 0G960500 - 0T408999 - USA > Bleed System (Port)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

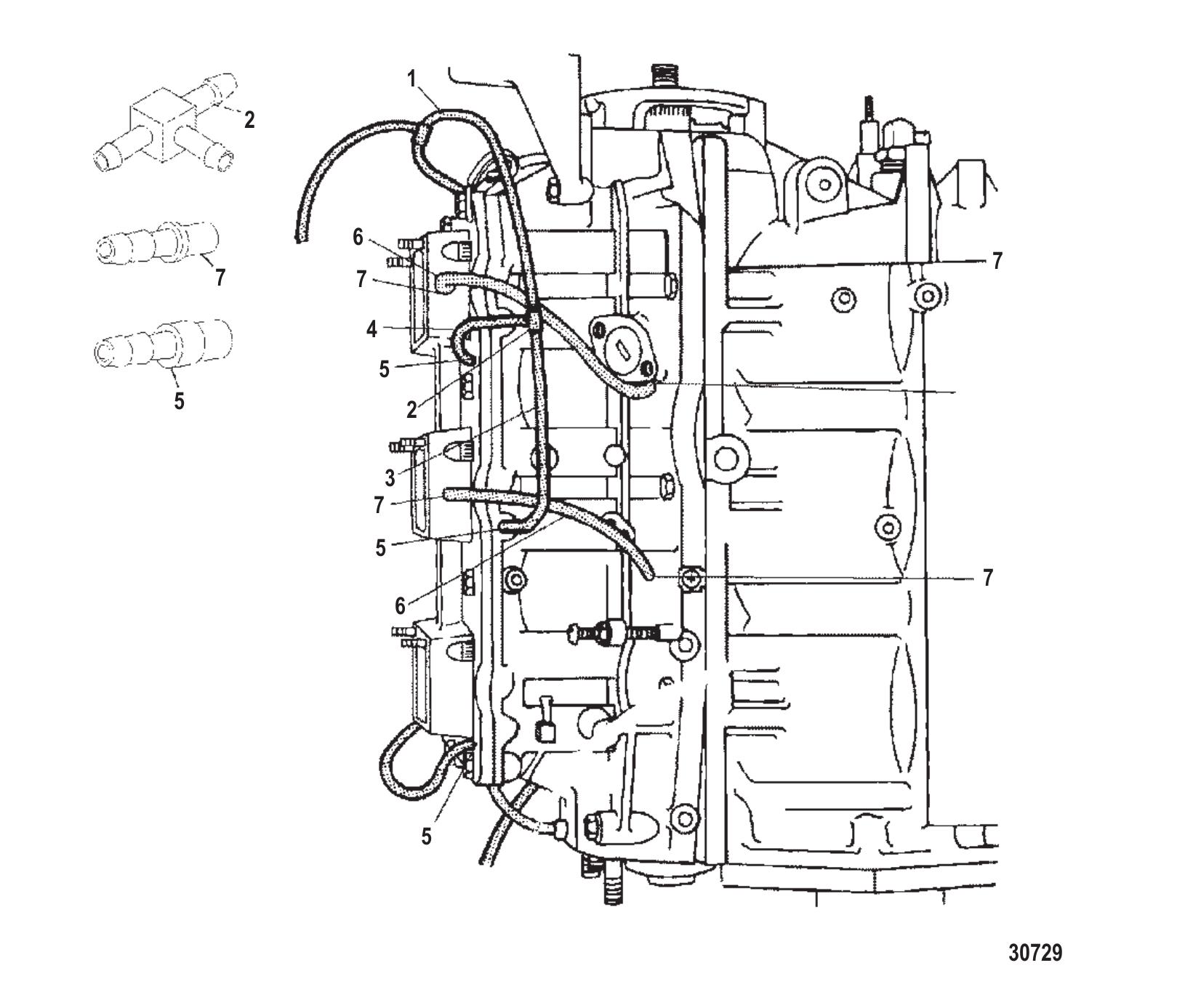

Bleed System (Port)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	823434R00	PH 150 -RM (150) (1 required per assembly) — Replaces: 823434T00
		823434R00 - Powerhead 150 -rm [ More info ] Unavailable
#-	812817T00	PH 175 EFI (175) (1 required per assembly)
		812817T00 - PH 175 EFI [ More info ] Unavailable
#-	813043R00	PH 200 -RM (200) (1 required per assembly) — Replaces: 813043T00
		813043R00 - Powerhead 200 -rm [ More info ] Unavailable
#1	892024122	TUBING (240.00 INCHES BULK) (CUT TO 3-1/2 IN.) (1 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $48.49 In Stock
#2	59169003	FITTING @2 (1 required per assembly) — Replaces: 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#3	892024122	TUBING (240.00 INCHES BULK) (CUT TO 5-1/2 IN.) (1 required per assembly) — Replaces: 99130122
#4	892024122	TUBING (240.00 INCHES BULK) (CUT TO 1-1/4 IN.) (1 required per assembly) — Replaces: 99130122
#5	426982	CHECK VALVE (3 required per assembly) — Replaces: 426981
		21-42698 2 - Check Valve [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#6	892024122	TUBING (240.00 INCHES BULK) (CUT TO 9 IN.) (2 required per assembly) — Replaces: 99130122
#7	56759	FITTING (4 required per assembly)
		22-56759 - Fitting [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
