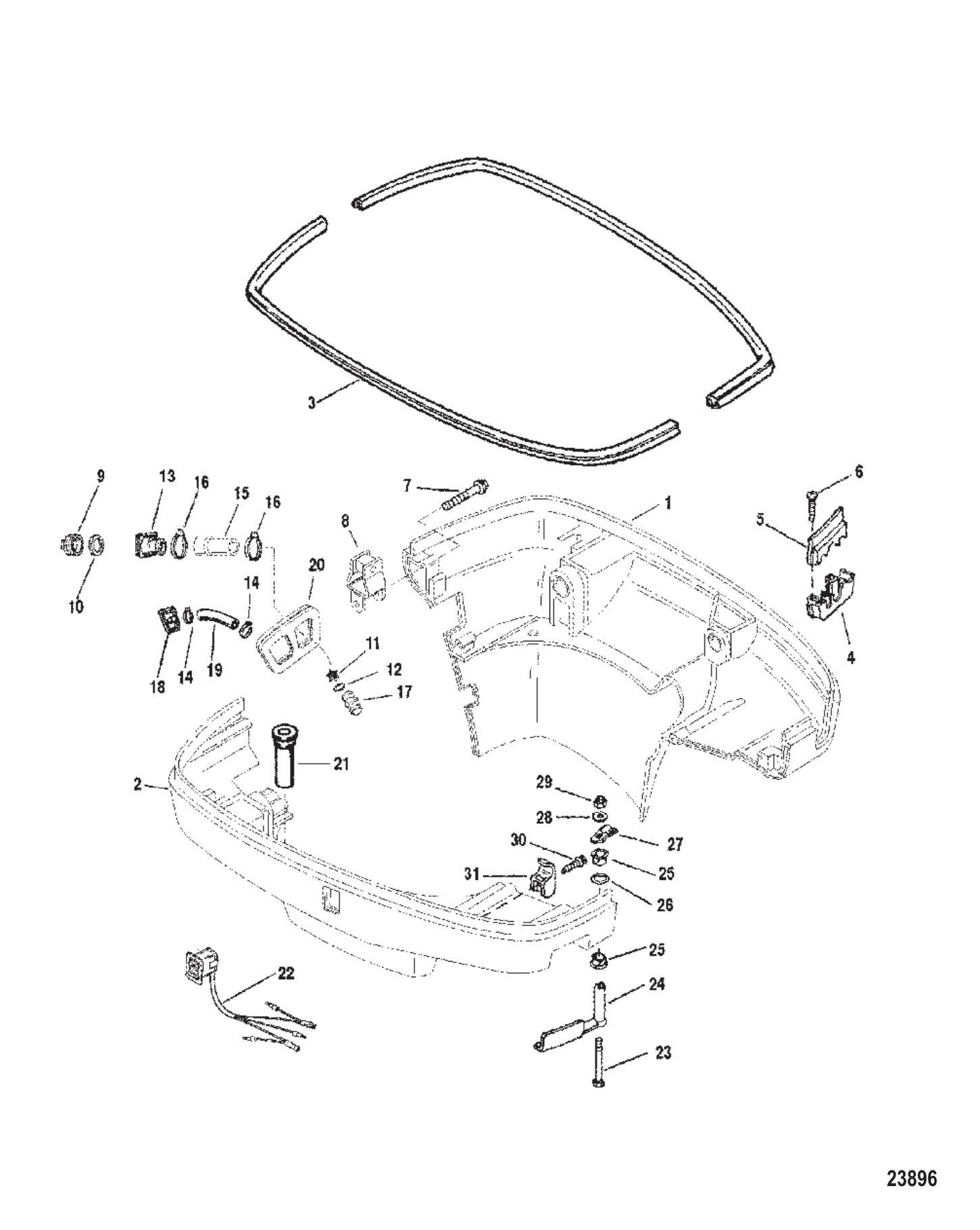

Parts for V-200 (EFI) 2-Stroke EFI Mercury Outboard Motor Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 828044A1 | COWL-BOTTOM-BL-PT (BLACK-PORT) (1 required per assembly) |
  |
|
4022-828044A 1 - Cowl -bottom-bl-pt [ More info ]
|
| #2 | 828045A1 | COWL-BOT-STBD-BLK (BLACK-STARBOARD) (1 required per assembly) |
  |
|
4022-828045A 1 - Cowl -bot- Stbd- Black [ More info ]
|
| #3 | 8M0109217 | SEAL-COWL (2 required per assembly) — Replaces: 8253181, 8M0043272 |
  |
|
8M0109217 - Cowl Seal [ More info ]
|
| #4 | 822024 | CLAMP (1 required per assembly) |
  |
|
54-822024 - Clamp [ More info ]
|
| #5 | 822023 | CLAMP (1 required per assembly) |
  |
|
54-822023 - Clamp [ More info ]
|
| #6 | 92799 | SCREW (2 required per assembly) |
  |
|
10-92799 - Screw [ More info ]
|
| #7 | 82130040 | SCREW (4 required per assembly) |
  |
|
10-821300 40 - Screw [ More info ]
|
| #8 | 831209 | RETAINER (1 required per assembly) |
  |
|
831209 - Retainer [ More info ]
|
| #9 | 821908 | PLUG (1 required per assembly) |
  |
|
19-821908 - Plug [ More info ]
|
| #10 | 821915 | WASHER (1 required per assembly) |
  |
|
12-821915 - Washer [ More info ]
|
| #11 | 8219631 | CHECK VALVE (1 required per assembly) — Replaces: 821963 |
  |
|
821963 1 - Check Valve [ More info ]
|
| #12 | 30641 | O RING (1 required per assembly) |
  |
|
25-30641 - O-ring, (.299 X .103) [ More info ]
|
| #13 | 821952 | FITTING (1 required per assembly) |
  |
|
22-821952 - Fitting [ More info ]
|
| #14 | 816311T | TIE STRAP @100 (AR required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #15 | 8M0039077 | HOSE-MOLDED (1 required per assembly) — Replaces: 8320782 |
  |
|
32-8M0039077 - Molded Hose [ More info ]
|
| #16 | 815504212 | CLAMP (2 required per assembly) |
  |
|
54-815504212 - Clamp [ More info ] Unavailable |
| #17 | 8320761 | FITTING (1 required per assembly) — Replaces: 832076 |
  |
|
22-832076 1 - Fitting [ More info ]
|
| #18 | 8M0077650 | FITTING (1 required per assembly) — Replaces: 821904 |
  |
|
22-8M0077650 - Tell Tale Fitting [ More info ]
|
| #19 | 8M0108355 | HOSE (57 INCHES BULK) (CUT TO 8 INCHES) (1 required per assembly) — Replaces: 830756109, 8M0047428 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #20 | 889847 | BOOT (1 required per assembly) — Replaces: 828216 |
  |
|
889847 - Idle Exhaust Boot [ More info ]
|
| #21 | 817519A1 | VALVE ASSY-DRAIN (2 required per assembly) |
  |
|
21-817519A 1 - Drain Valve Assembly [ More info ]
|
| #22 | 8M0042301 | SWITCH-TRIM (1 required per assembly) — Replaces: 856990, 896620 |
  |
87-8M0042301 - Trim Switch [ More info ] In Stock |
|
  |
|
87-09058 - Power Trim Switch [ More info ]
|
  |
|
SWITCH TRIM [ More info ]
|
| #23 | 824868 | SCREW (1 required per assembly) |
  |
|
10-824868 - Screw [ More info ]
|
| #24 | 889740A02 | HANDLE KIT (BLACK) (1 required per assembly) — Replaces: 821253F1 |
  |
|
889740A02 - Handle Kit [ More info ]
|
| #25 | 335891 | BUSHING (2 required per assembly) |
  |
|
0335891 - Stern Bracket (335891) [ More info ] Unavailable |
| #26 | 48462 | O RING (1 required per assembly) |
  |
|
25-48462 - O-ring, (.614 X .070) [ More info ]
|
| #27 | 8219423 | PAWL (1 required per assembly) |
  |
|
|
| #28 | 69057 | WASHER (1 required per assembly) |
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #29 | 401366 | NUT @5 (1 required per assembly) — Replaces: 400264 |
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #30 | 8214281 | SCREW (1 required per assembly) |
  |
|
10-821428 1 - Screw [ More info ]
|
| #31 | 822873 | CLIP (1 required per assembly) |
  |
|
54-822873 - Clip [ More info ]
|
