Parts for V-200 (EFI) 2-Stroke EFI Mercury Outboard Motor Fuel Pump

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-200 (EFI) > 0G303046 - 0G760299 - USA > Fuel Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

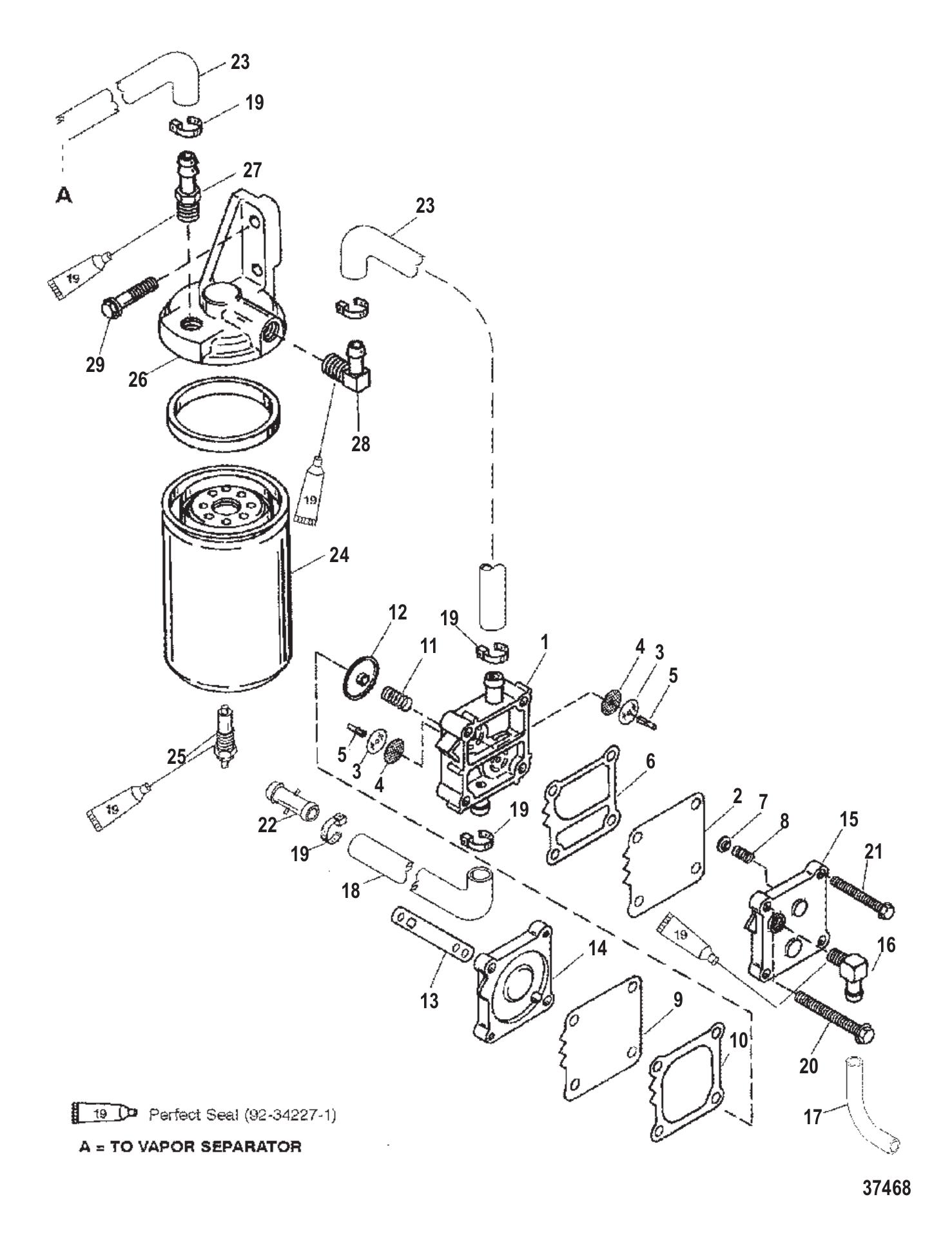

Fuel Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	815791A92	GASKET SET (1 required per assembly)
		27-815791A92 - Engine Gasket Set [ More info ] $207.49 1 In Stock.
		27-27673 - Gasket Set [ More info ] $164.99 $126.17 1 In Stock.
#-	823434R97	PH 150 EFI -RM (150) (1 required per assembly) — Replaces: 823434A97, 823434T97
		823434R97 - Powerhead 150 EFI -rm [ More info ] Unavailable
#-	812817R97	PH 175 -RM (175) (1 required per assembly) — Replaces: 812817A97, 812817T97
		812817R97 - Powerhead 175 -rm [ More info ] Unavailable
#-	813043R97	PH 200 -RM (200) (1 required per assembly) — Replaces: 813043A97, 813043T97
		813043R97 - Powerhead 200 -rm [ More info ] Unavailable
#1	14360A78	PUMP KIT-FUEL (1 required per assembly) — Replaces: 14360A43, 14360A71
		14360A78 - Fuel Pump Kit [ More info ] $308.49 4 In Stock.
#2	857005A1	DIAPHRAGM KIT (1 required per assembly) — Replaces: 42990A10
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 5 In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE CHECK VALVE, RUBBER (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE CHECK VALVE (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#6	NSS	NOT SOLD SEPARATE GASKET, BOOST (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE DIAPHRAGM (2 required per assembly)
#10	NSS	NOT SOLD SEPARATE GASKET, PULSE (1 required per assembly)
#11	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#13	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#14	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#15	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#16	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly) — Replaces: 99664, 996641
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#17	8M0047448	TUBING (.312) (70 INCHES BULK) (CUT TO 6 IN.) (1 required per assembly) — Replaces: 83075780, 830757130
		32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#18	8M0047448	TUBING (.312) (70 INCHES BULK) (CUT TO 10-1/2 IN.) (1 required per assembly) — Replaces: 83075780, 830757130
#19	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#20	82130050	SCREW (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#21	82104540	SCREW (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#22	822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#23	1350385	TUBING (33.00 INCHES BULK) (15-1/2 IN.)(19 IN.) (2 required per assembly)
		32-13503 85 - Tubing - 33 Inch [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#24	18458Q4	FILTER KIT-FUEL (1 required per assembly) — Replaces: 18458A4
		35-18458Q 4 - Fuel Filter Kit [ More info ] $31.09 5 In Stock.
		18-7968 - Filter, 35-18458Q4 [ More info ] $24.19 $22.54 10+ In Stock.
		35-18458T 4 - Fuel Filter Kit [ More info ] $34.49 1 In Stock.
		35-37806 - Fuel Water Filter, 10 Micron, 35-18458Q4 [ More info ] $24.49 $18.73 4 In Stock.
#25	8M0204710	PROBE (1 required per assembly) — Replaces: 828586, 8285861
		8M0204710 - Probe [ More info ] $19.39 1 In Stock.
#26	13170A3	BASE KT-FUEL FILT (1 required per assembly)
		13170A 3 - Fuel Filter Base Kit [ More info ] Unavailable
#27	89771Q2	CONNECTOR (.250-18) (STRAIGHT) (1 required per assembly) — Replaces: 897712
		22-89771Q 2 - Connector - Priced Individually [ More info ] $16.29 2 In Stock.
		22-89771T 2 - Connector - Priced Individually [ More info ] $17.99 1 In Stock.
#28	136071	ELBOW (1 required per assembly)
		22-13607 1 - Fitting [ More info ] $50.99 Available to Order: Shipping delay up to 10 days.
#29	455611	SCREW (2 required per assembly) — Replaces: 45561
		10-45561 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
