Parts for V-175 (EFI) 2-Stroke EFI Mercury Outboard Motor Fuel Management System
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 14817A31 | FUEL MANAGEMENT (1 required per assembly) |
  |
|
14817A31 - FUEL MANAGEMENT [ More info ] Unavailable |
| #- | 815791A00 | GASKET SET (1 required per assembly) |
  |
|
27-815791A00 - Powerhead Gasket Set, Cylinder Head O-Rings and Seal Not Included [ More info ]
|
| #1 | 8276922 | COVER (1 required per assembly) |
  |
|
827692 2 - Cover, NLA [ More info ] Unavailable |
| #2 | 15443 | HARNESS KIT (1 required per assembly) |
  |
|
84-15443 - Harness Kit [ More info ] Unavailable |
| #3 | 18792 | SEAL (1 required per assembly) |
  |
|
|
| #4 | 15029 | O-RING AND SEAL KIT (1 required per assembly) |
  |
|
15029 - Seal Kit O-Ring [ More info ] Unavailable |
| #5 | 827699T2 | FUEL RAIL (1 required per assembly) |
  |
|
827699T 2 - FUEL RAIL [ More info ] Unavailable |
| #6 | 18715T | INJECTOR ASSEMBLY (6 required per assembly) |
  |
|
18715T - Fuel Injector [ More info ]
|
| #7 | 17422 | FILTER (1 required per assembly) |
  |
|
35-17422 - Injector Filter [ More info ]
|
| #8 | 827696 | RETAINER KIT (1 required per assembly) |
  |
|
827696 - Retaining Kit, NLA [ More info ] Unavailable |
| #9 | 8276933 | THROTTLE BODY (1 required per assembly) |
  |
|
827693 3 - Throttle Body [ More info ] Unavailable |

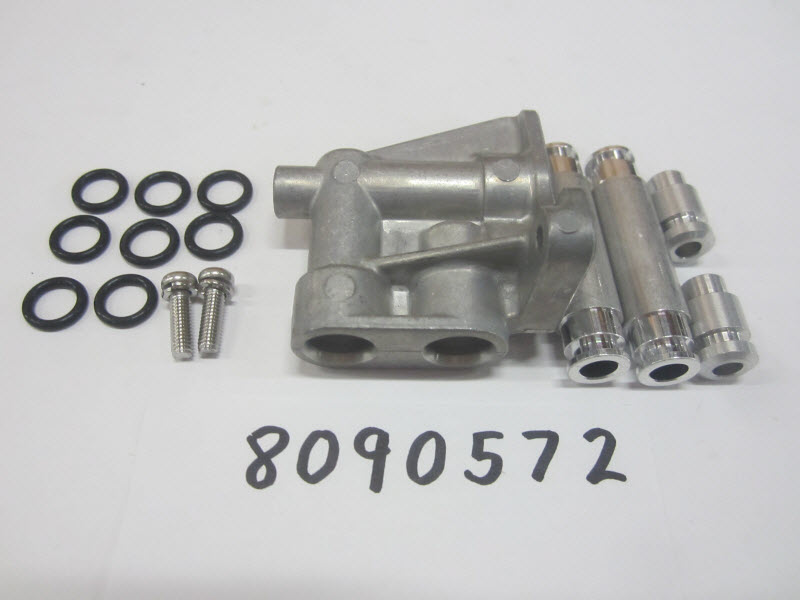

| #10 | 8090572 | JOINT KIT (1 required per assembly) |
  |
|
809057 2 - Joint Kit, NLA [ More info ]
|
| #11 | 8276891 | LINK KIT (1 required per assembly) |
  |
|
827689 1 - Link Kit [ More info ] Unavailable |
| #12 | 827697 | LEVER KIT LINK (1 required per assembly) |
  |
|
827697 - Link Lever Kit [ More info ]
|
| #13 | 827698 | SCREW KIT (1 required per assembly) |
  |
|
10-827698 - Screw Kit - Stop [ More info ] Unavailable |
| #14 | 8276981 | SCREW KIT (1 required per assembly) |
  |
|
10-827698 1 - Screw Kit [ More info ] Unavailable |
| #15 | 8090851 | ELBOW KIT (1 required per assembly) |
  |
|
8090851 [ More info ] Unavailable Replaced by 0210090 |
  |
|
0210090 - EV 90 HP O/M 85 (210090) [ More info ] Unavailable |
| #16 | 814233A02 | VALVE KIT (1 required per assembly) — Replaces: 814233A1 |
  |
|
814233A02 - Valve Kit [ More info ]
|
| #17 | 8142332 | FMA JOINT KIT (1 required per assembly) |
  |
|
814233 2 - Joint Kit -fma, NLA [ More info ]
|
| #18 | 827694A01 | HOSE KIT-FUEL (1 required per assembly) — Replaces: 8276942 |
  |
|
32-827694A01 - Fuel Hose Kit [ More info ] Unavailable |
| #19 | 67748 | ROLLER (1 required per assembly) |
  |
|
|
| #20 | 845674 | SCREW (12 required per assembly) |
  |
|
10-845674 - Screw [ More info ]
|
| #21 | 8M0204649 | WASHER @10 (10 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #22 | 13221T01 | SENSOR (1 required per assembly) — Replaces: 13221A1 |
  |
|
13221T01 - Temperature Sensor [ More info ]
|
| #23 | 45711 | O RING @5 (1 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
| #24 | 57583T | SCREW @5 (3 required per assembly) — Replaces: 57583 |
  |
|
10-57583T - Screw - Priced Individually [ More info ]
|
| #25 | 26995 | LOCKWASHER @5 (3 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #26 | 14851004 | INDICATOR (1 required per assembly) — Replaces: 148512 |
  |
|
14851004 - Indicator [ More info ]
|
| #27 | 15150 | SCREW (2 required per assembly) |
  |
|
10-15150 - Screw [ More info ] Unavailable |
| #28 | 26995 | LOCKWASHER @5 (1 required per assembly) |
| #29 | 30164 | WASHER @3 (2 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #30 | 15885 | SLEEVE (1 required per assembly) |
  |
|
23-15885 - Sleeve [ More info ]
|
| #31 | 813501 | PLATE (2 required per assembly) |
  |
|
813501 - Plate [ More info ] Unavailable |
