Parts for 300x (3.0L EFI) Pro Max 2-Stroke EFI Mercury Outboard Motor Port Bleed System

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 300x (3.0L EFI) Pro Max > 0T235084 - 0T429939 - USA > Port Bleed System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

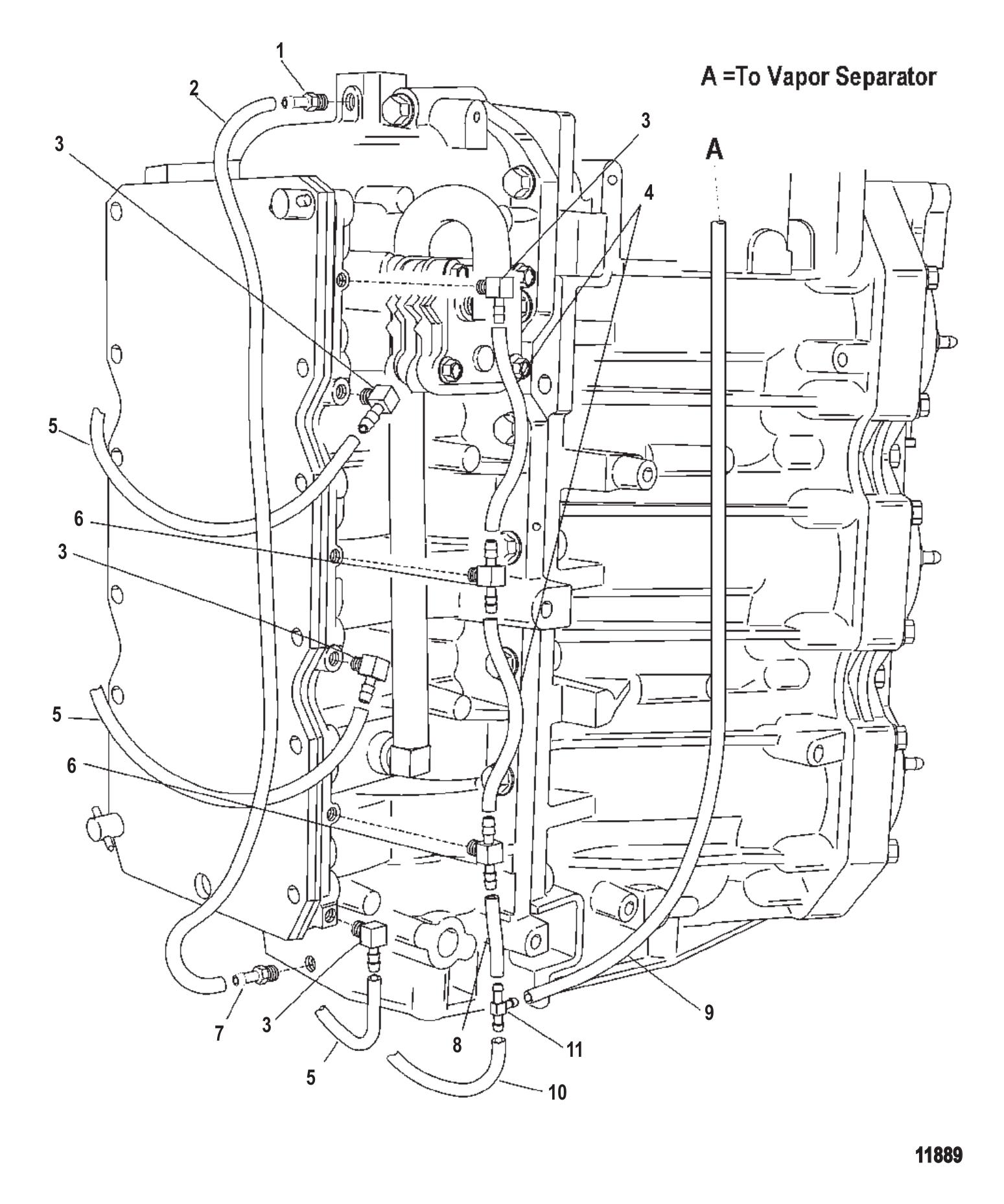

Port Bleed System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	840756A03	POWERHEAD (1 required per assembly) — Replaces: 840756A01, 840756A02
		61-840756A03 - Powerhead [ More info ] Unavailable
		61-840756A04 - Powerhead [ More info ] Unavailable
#1	8159234	VALVE-CHECK (1 required per assembly)
		21-815923 4 - Check Valve [ More info ] $15.59 $12.48 2 In Stock.
#2	892024122	TUBING (240.00 INCHES BULK) (CUT TO 25.00 INCH LENGTH) (1 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 In Stock
#3	8282182	CHECK VALVE (4 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#4	892024122	TUBING (240.00 INCHES BULK) (CUT TO 5.00 INCH LENGTH) (2 required per assembly) — Replaces: 99130122
#5	892024122	TUBING (240.00 INCHES BULK) (CUT TO 9.50 INCH LENGTH) (3 required per assembly) — Replaces: 99130122
#6	8348041	VALVE-CHECK (2 required per assembly)
		21-834804 1 - Check Valve [ More info ] $112.99 Available to Order: Shipping delay up to 10 days.
#7	426585	VALVE-CHECK (1 required per assembly)
		21-42658 5 - Check Valve [ More info ] $25.59 Available to Order: Shipping delay up to 10 days.
#8	892024122	TUBING (240.00 INCHES BULK) (CUT TO 2.00 INCH LENGTH) (1 required per assembly) — Replaces: 99130122
#9	892024122	TUBING (240.00 INCHES BULK) (CUT TO 14.50 INCH LENGTH) (1 required per assembly) — Replaces: 99130122
#10	892024122	TUBING (240.00 INCHES BULK) (CUT TO 9.50 INCH LENGTH) (1 required per assembly) — Replaces: 99130122
#11	59169003	FITTING @2 (1 required per assembly) — Replaces: 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
