Parts for 200 EFI Pro Max / Super Mag 2-Stroke EFI Mercury Outboard Motor Fuel Pump / Filter

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 200 EFI Pro Max / Super Mag > 0G857000 - 0G858150 - Belgium > Fuel Pump / Filter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

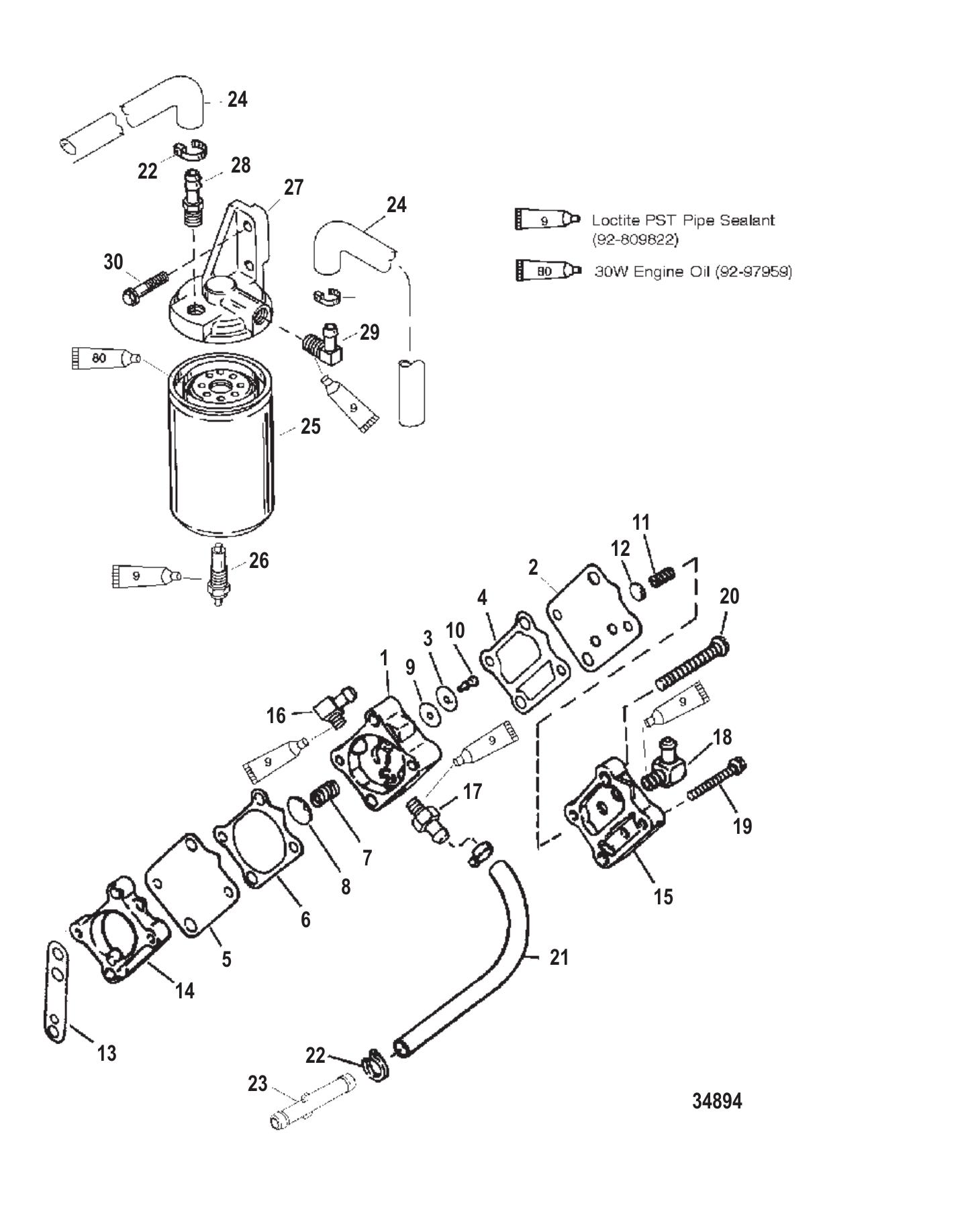

Fuel Pump / Filter

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	823142A98	GASKET SET (1 required per assembly)
		27-823142A98 - Engine Gasket Set [ More info ] Unavailable
#-	808603T94	PH 200 EFI PRO (1 required per assembly)
		808603T94 - PH 200 EFI PRO,NLA [ More info ] Unavailable
#1	14360T75	PUMP ASSY-FUEL (1 required per assembly) — Replaces: 14360A66, 14360A69
		14360T75 - Fuel Pump [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (1 required per assembly) — Replaces: 42990A10
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE CHECK VALVE-RUBBER (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#5	NSS	NOT SOLD SEPARATE DIAPHRAGM (2 required per assembly)
#6	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE CHECK VALVE (2 required per assembly)
#10	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#11	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#13	8M0204705	GASKET @2 BASE (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#14	144303	BASE FUEL PUMP (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#15	987752	PLATE FUEL PUMP (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#16	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly) — Replaces: 996641
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#17	291112	FITTING (1 required per assembly) — Replaces: 291111
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
#18	433351	CONNECTOR (1 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#19	82104540	SCREW (M5 X 40) FUEL PUMP (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#20	82130050	SCREW (M6 X 50) FUEL PUMP TO CRANKCASE (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#21	8M0108349	HOSE (70 INCHES BULK) (CUT TO 13-1/2 INCHES) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#22	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#23	822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#24	1350385	TUBING (33.00 INCHES BULK) (CUT TO 15-1/2 INCHES AND 19 INCHES) (2 required per assembly)
		32-13503 85 - Tubing - 33 Inch [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#25	18458Q4	FILTER KIT-FUEL (1 required per assembly) — Replaces: 18458A4
		35-18458Q 4 - Fuel Filter Kit [ More info ] $31.09 5 In Stock.
		18-7968 - Filter, 35-18458Q4 [ More info ] $24.19 $22.54 10+ In Stock.
		35-18458T 4 - Fuel Filter Kit [ More info ] $34.49 1 In Stock.
		35-37806 - Fuel Water Filter, 10 Micron, 35-18458Q4 [ More info ] $24.49 $18.73 4 In Stock.
#26	8M0204710	PROBE (1 required per assembly) — Replaces: 828586, 8285861
		8M0204710 - Probe [ More info ] $19.39 1 In Stock.
#27	13170A3	BASE KT-FUEL FILT (1 required per assembly)
		13170A 3 - Fuel Filter Base Kit [ More info ] Unavailable
#28	89771Q2	CONNECTOR (.250-18) (1 required per assembly) — Replaces: 897712
		22-89771Q 2 - Connector - Priced Individually [ More info ] $16.29 2 In Stock.
		22-89771T 2 - Connector - Priced Individually [ More info ] $17.99 1 In Stock.
#29	136071	ELBOW (1 required per assembly)
		22-13607 1 - Fitting [ More info ] $50.99 Available to Order: Shipping delay up to 10 days.
#30	455611	SCREW (2 required per assembly)
		10-45561 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
