Parts for 2.5L (EFI) / (EFI-offshore) 2-Stroke EFI Mercury Outboard Motor Transom Brackets

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 2.5L (EFI) / (EFI-offshore) > 0G857000 - 0T999519 - USA > Transom Brackets

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Transom Brackets

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	79879A1	REPAIR KIT (FOR TRIM CYLINDERS) (1 required per assembly)
		79879A 1 - Trim Repair Kit [ More info ] $142.25 7 In Stock.
#1	844353T01	TRANSOM KIT (PORT) (1 required per assembly) — Replaces: 847800A1
		1494-844353T01 - Transom Kit [ More info ] Unavailable
#2	844353A01	TRANSOM KIT (STARBOARD) (1 required per assembly) — Replaces: 847801A1, 847801T01
		1494-844353A01 - TRANSOM KIT NLA [ More info ] Unavailable
#3	847798A02	WEAR PAD KIT (1 required per assembly) — Replaces: 847798A1
		847798A02 - Wear Pad Kit [ More info ] $217.46 Available to Order: Shipping delay up to 10 days.
#4	86843	SCREW (#10-24 X .500) (4 required per assembly)
		10-86843 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#5	87180	SCREW (1 required per assembly)
		10-87180 - Screw [ More info ] $62.99 $60.24 1 In Stock.
#6	88512	CLAMP (4 required per assembly)
		54-88512 - Clamp [ More info ] $7.49 $6.00 7 In Stock.
#6	75275	CLAMP (2 required per assembly)
		54-75275 - Clamp [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#7	88829	SCREW (6 required per assembly)
		10-88829 - Screw [ More info ] $1.90 $1.52 3 In Stock.
#8	858869	NUT @5 (7/8-14) (1 required per assembly)
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#8	82671327	NUT (1 Inch-14) (1 required per assembly) — Replaces: 859133
		11-826713 27 - Nut [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#9	88750	WASHER-WAVE @2 (2 required per assembly)
		13-88750 - Wave Washer - Priced Individually [ More info ] $6.79 10+ In Stock.
#10	826125A1	TILT TUBE KIT (1 required per assembly) — Replaces: 99170A2
		826125A 1 - Tilt Tube Kit [ More info ] $294.39 1 In Stock.
#11	85035T	SPACER (1 required per assembly)
		85035T - Spacer - Black [ More info ] Unavailable
		8M0237541 - SPACER [ More info ] Unavailable
#12	8M0204648	WASHER @5 (4 required per assembly) — Replaces: 28421
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#13	82671117	NUT (4 required per assembly)
		11-826711 17 - Nut, (.500-20) [ More info ] $8.99 10+ In Stock.
#14	677552	SCREW (.500-20 X 6.500) (6-1/2 IN.) (4 required per assembly)
		10-67755 2 - Screw [ More info ] $28.19 $6.77 10+ In Stock.
#15	82671317	NUT @5 (1 required per assembly)
		11-826713 17 - Nut, (.500-20) [ More info ] $3.79 $3.04 10+ In Stock.
#16	70732	SCREW @5 (4 required per assembly)
		10-70732 - Screw - Priced Individually [ More info ] $3.69 2 In Stock.
#17	8M0204649	WASHER @10 (4 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#18	85026T	PLATE (2 required per assembly)
		85026T - Plate [ More info ] $49.99 $47.84 3 In Stock.
#19	28636	SCREW @5 (4 required per assembly)
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#20	8M0204649	WASHER @10 (4 required per assembly) — Replaces: 29245
#21	8M0034451	STUD (4 required per assembly) — Replaces: 54343
		168M0034451 - Stud [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#22	89949A1	PLATE ASSY (1 required per assembly)
		89949A 1 - Anode Plate, Aluminum [ More info ] $89.49 Available to Order: Shipping delay up to 10 days.
#23	843108	WASHER (4 required per assembly)
		12-843108 - Washer, (.330 X .560 X .060) Stainless Steel [ More info ] $0.69 Available to Order: Shipping delay up to 10 days.
#24	82670911	NUT @5 (4 required per assembly)
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#25	89024	HOSE (PORT) (1 required per assembly)
		32-89024 - Hose - Hydraulic [ More info ] $172.49 Available to Order: Shipping delay up to 10 days.
#25	89023	HOSE (STARBOARD) (1 required per assembly)
		32-89023 - Hose - Hydaulic [ More info ] $190.99 Available to Order: Shipping delay up to 10 days.
#26	96993	HYD HOSE (PORT) (1 required per assembly)
		32-96993 - Hydraulic Hose [ More info ] $277.49 Available to Order: Shipping delay up to 10 days.
#26	96994	HYD HOSE (STARBOARD) (1 required per assembly)
		32-96994 - Hydraulic Hose [ More info ] Unavailable
#27	87871T	COVER (1 required per assembly) — Replaces: 87871
		87871T - Cover [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#28	45507	GROMMET @2 (1 required per assembly)
		25-45507 - Grommet, Rubber [ More info ] $4.49 10+ In Stock.
#29	32866	SCREW @5 (4 required per assembly)
		10-32866 - Screw - Priced Individually [ More info ] $1.70 $0.34 10+ In Stock.
#30	87775	GASKET (1 required per assembly)
		27-87775 - Inlet Cover Gasket [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#31	20878	WASHER @3 (4 required per assembly)
		12-20878 - Washer (10 X 3/8 O D X 1/32) Metal [ More info ] $0.70 Available to Order: Shipping delay up to 10 days.
#32	8M0204718	NUT (4 required per assembly) — Replaces: 826709106
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#33	79610A33	TRIM CYLINDER KIT (SHORT)(Use W/O Set Screw) (1 required per assembly) — Replaces: 79610T29, 79610A21
		79610A33 - Trim Cylinder Kit [ More info ] Unavailable
#33	79610A32	CYLINDER KIT-TRIM (LONG)(Use W/O Set Screw) (1 required per assembly) — Replaces: 79610T28, 79610A17
		79610A32 - Trim Cylinder Kit [ More info ] $1,506.41 Available to Order: Shipping delay up to 10 days.
#34	847724	BUSHING (2 required per assembly)
		23-847724 - Bushing [ More info ] $39.54 Available to Order: Shipping delay up to 10 days.
#35	841223	BEARING (Use W/ Set Screw) (1 required per assembly)
		23-841223 - Bearing [ More info ] $43.87 Available to Order: Shipping delay up to 10 days.
#36	30316	SPRING (2 required per assembly)
		24-30316 - Spring [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#37	85020T	PIN-PIVOT (2 required per assembly)

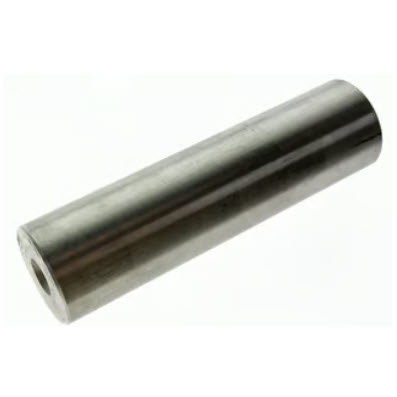

		17-85020T - Pivot Pin [ More info ] $68.26 Available to Order: Shipping delay up to 10 days.
#38	841199	PIN-TRIM (Use W/ Set Screw) (1 required per assembly)
		841199 - Pin, Trim [ More info ] $248.46 Available to Order: Shipping delay up to 10 days.
#38	8220752	PIN-TRIM (Use W/O Set Screw) (1 required per assembly)
		822075 2 - Pin - Trim [ More info ] $286.37 Available to Order: Shipping delay up to 10 days.
#39	822076	RETAINER (1 required per assembly)
		822076 - Retainer [ More info ] $36.57 Available to Order: Shipping delay up to 10 days.
#40	82671317	NUT @5 (1 required per assembly)
#41	8071791	SET SCREW (1 required per assembly)
		10-807179 1 - Set Screw [ More info ] $23.37 Available to Order: Shipping delay up to 10 days.
#42	85022	WASHER (2 required per assembly)
		12-85022 - Washer, Transom Bracket Bass [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#43	45711	O RING @5 (1 required per assembly)
		25-45711 - Valve Cover O-Ring, Priced Individually [ More info ] $1.80 8 In Stock.
