Parts for 175 Proxs (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Rails

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 175 Proxs (2.5L) > 1B516339 - 2B535624 > Fuel Rails

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

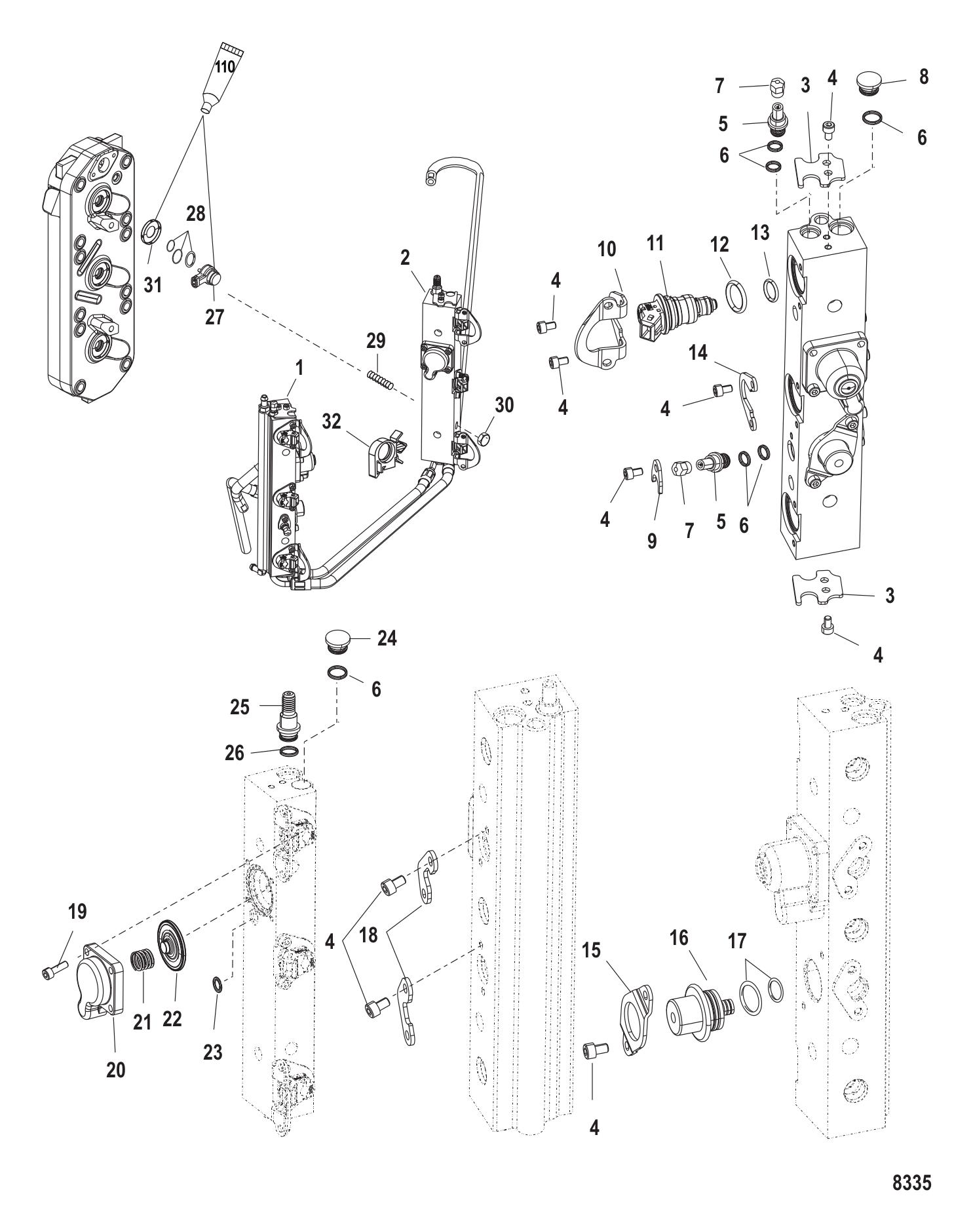

Fuel Rails

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0135407	FUEL RAIL ASSY (1 required per assembly) — Replaces: 8M0055705
		8M0135407 - Fuel Rail [ More info ] Unavailable
		8M0185153 - FUEL RAIL ASSY [ More info ] Unavailable
#1	NSS	NOT SOLD SEPARATE FUEL RAIL (PORT) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE FUEL RAIL (STARBOARD) (1 required per assembly)
#3	804830	CLAMP (4 required per assembly)
		54-804830 - Clamp [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#4	8M0041100	SCREW (M5 X 10) (16 required per assembly) — Replaces: 804525001
		108M0041100 - Screw [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#5	8M0047053	VALVE KIT SHRADER (2 required per assembly) — Replaces: 883542
		8M0047053 - Valve Kit [ More info ] $135.49 Available to Order: Shipping delay up to 10 days.
#6	804840	O-RING KIT (1 required per assembly)
		25-804840 - O-Ring Kit [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#7	8M0046566	CAP (2 required per assembly) — Replaces: 805515
		19-8M0046566 - Cap [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#8	804835	PLUG (PORT) (1 required per assembly)
		19-804835 - Plug [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#9	8M0041097	BRACKET (1 required per assembly) — Replaces: 880816
		8M0041097 - Bracket [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#10	8048311	CLAMP (4 required per assembly)
		54-804831 1 - Clamp [ More info ] $42.17 Available to Order: Shipping delay up to 10 days.
#11	804528	INJECTOR (6 required per assembly)
		804528 - Fuel Injector, See Detail Page for Information [ More info ] $169.99 10+ In Stock.
		8M0222157 - FUEL INJECTOR [ More info ] $313.49 Available to Order: Shipping delay up to 10 days.
#12	804530	O-RING KIT CONTAINS 6 PCS (1 required per assembly)
		25-804530 - O-ring Kit (large) 6 Per Kit [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#13	804529	O-RING KIT CONTAINS 6 PCS (1 required per assembly)
		25-804529 - O-ring Kit (small) 6 Per Kit [ More info ] $39.93 1 In Stock.
#14	804522	CLAMP (2 required per assembly)
		804522 - Retainer [ More info ] $15.60 $12.48 6 In Stock.
#15	880808	CLAMP (1 required per assembly)
		54-880808 - Clamp [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#16	880807T04	REGULATOR AIR (1 required per assembly)
		880807T04 - Air Regulator [ More info ] Unavailable
		8M0222159 - AIR REGULATOR [ More info ] Unavailable
#17	880809	O-RING KIT (1 required per assembly)
		25-880809 - O-ring Kit, 1 Top And 1 Bottom [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#18	804832	CLAMP (2 required per assembly)
		54-804832 - Clamp [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#19	804526	SCREW PACKAGE (M5 X 16) (2 PER) (4 required per assembly)
		804526 - Screw Package (2) [ More info ] $18.19 Available to Order: Shipping delay up to 10 days.
#20	804535001	COVER (1 required per assembly) — Replaces: 804535
		804535001 - Cover [ More info ] $96.49 Available to Order: Shipping delay up to 10 days.
#21	804534	SPRING (1 required per assembly)
		24-804534 - Spring (tracker Valve) [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#22	804533	DIAPHRAGM ASSEMBLY (1 required per assembly)
		804533 - Diaphragm Assembly [ More info ] $190.99 $190.58 Available to Order: Shipping delay up to 10 days.
#23	804536	O-RING (2 required per assembly)
		25-804536 - O-Ring [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#24	804834	PLUG (STARBOARD) (1 required per assembly)
		19-804834 - Plug [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#25	804836	FITTING (1 required per assembly)
		22-804836 - Fitting [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#26	804532	O-RING KIT (1 required per assembly)
		804532 - O-ring Kit (16 Per Kit) [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#27	8M6001744	INJECTOR ASM-AIR (6 required per assembly) — Replaces: 884595A01, 8M0065917
		8M6001744 - Air Injector Assembly [ More info ] $999.99 $849.99 Available to Order: Shipping delay up to 10 days.
#28	804875	SEAL KIT DIRECT INJECTOR (6 required per assembly)
		26-804875 - Seal Kit [ More info ] $23.09 Available to Order: Shipping delay up to 10 days.
#29	8M0063255	STUD (4 required per assembly) — Replaces: 8M0034470
		168M0063255 - Stud [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#30	826292	NUT (4 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#31	828694A1	WASHER ASSY (6 required per assembly)
		12-828694A 1 - Washer,Cupped [ More info ] $16.69 10+ In Stock.
#32	899145	CLIP (4 required per assembly)
		54-899145 - Clip [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
