Parts for V-150 DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Pump

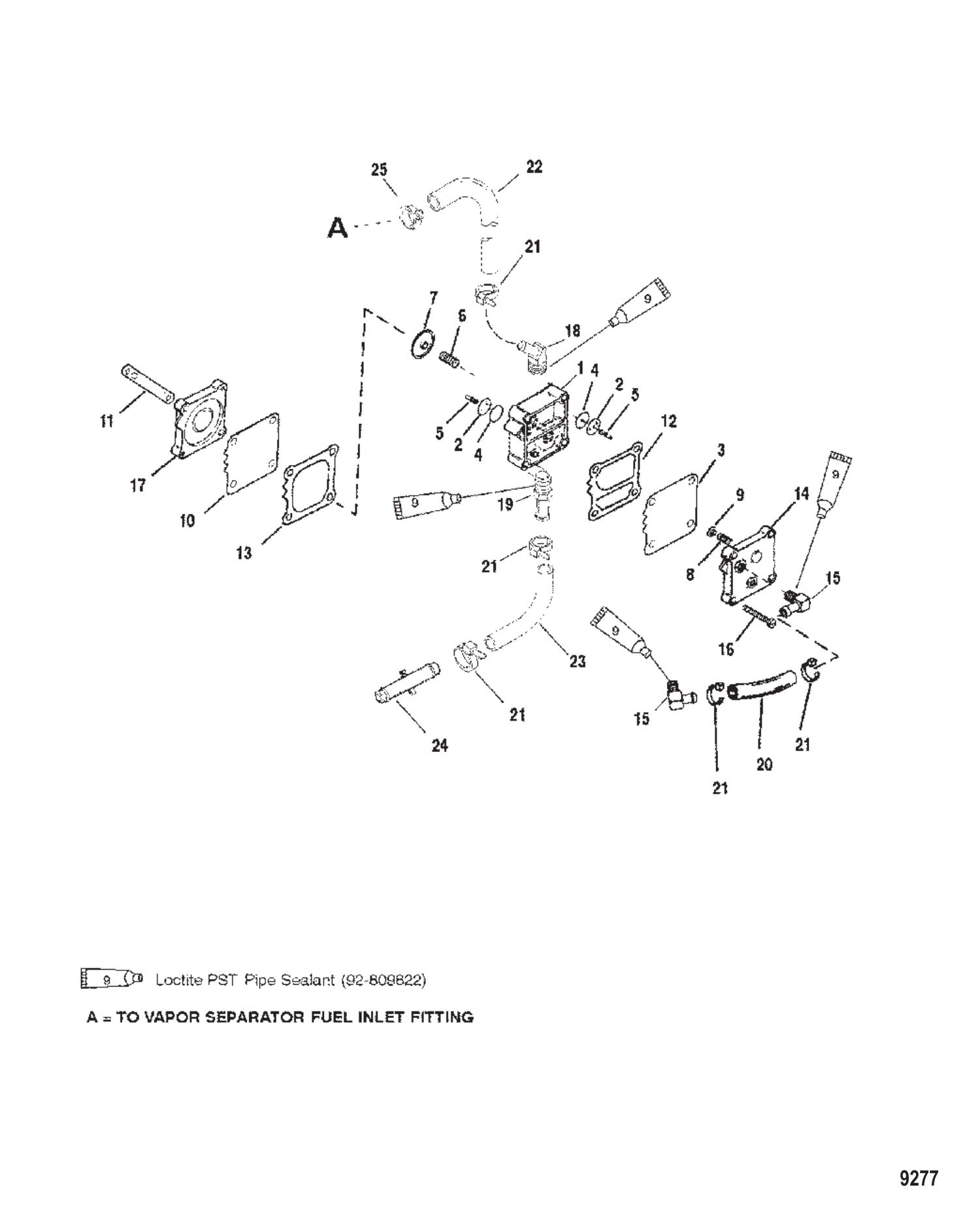

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0046714 | GASKET SET (1 required per assembly) — Replaces: 814754A98, 814754A00 |
  |
|
27-8M0046714 - Gasket Set [ More info ]
|
| #- | 804545R99 | PH 135/150 DFI-RM [0G886266] & Below (1 required per assembly) — Replaces: 804545T99, 854008T99 |
  |
|
804545R99 - Powerhead 135/150 Dfi-rm [ More info ] Unavailable |
| #1 | 14360T75 | PUMP ASSY-FUEL (1 required per assembly) — Replaces: 14360A66, 14360A69 |
  |
|
14360T75 - Fuel Pump [ More info ] Unavailable |
| #2 | 857005A1 | DIAPHRAGM KIT (2 required per assembly) |
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | NSS | NOT SOLD SEPARATE CHECK VALVE-RUBBER (2 required per assembly) |
| #5 | NSS | NOT SOLD SEPARATE RETAINER (2 required per assembly) |
| #6 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #7 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #10 | NSS | NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly) |
| #11 | 8M0204705 | GASKET @2 (1 required per assembly) — Replaces: 987691 |
  |
|
27-8M0204705 - Gasket Note: Priced Individually [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly) |
| #13 | NSS | NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly) |
| #14 | 987752 | PLATE (1 required per assembly) |
  |
|
0987752 [ More info ] Unavailable Replaced by 3854336 |
  |
|
3854336 - TUBE ASSEMBLY [ More info ] Unavailable |
| #15 | 996642 | FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (2 required per assembly) — Replaces: 996641 |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #16 | 82104540 | SCREW (M5 X 40) FUEL PUMP (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|
| #16 | 82130050 | SCREW (M6 X 50) PUMP TO CRANKCASE (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #17 | 144303 | BASE (1 required per assembly) |
  |
|
|
| #18 | 782792 | FITTING ELBOW 45 DEGREE (1.25) (45 DEGREES) (1 required per assembly) — Replaces: 782791 |
  |
22-78279 2 - Elbow [ More info ] Unavailable |
|
  |
|
22-8M0207781 - ELBOW [ More info ] Unavailable |
| #19 | 291112 | FITTING (1 required per assembly) |
  |
|
0291112 - Exhaust Gasket (291112) [ More info ] Unavailable |
| #20 | 8M0108349 | HOSE (70 INCHES BULK) (CUT TO 6 INCHES) (1 required per assembly) — Replaces: 830757130, 8M0047448 |
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #21 | 816311T | TIE STRAP @100 (5 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #22 | 8M0064784 | HOSE,MOLDED,PULSE (W/INSULATING SLEEVE) (7 IN.) (1 required per assembly) — Replaces: 856822A1, 897972 |
  |
|
328M0064784 - Hose, Molded, Pulse [ More info ]
|
| #23 | 8M0043979 | HOSE AND SLEEVE ASSEMBLY (W/INSULATING SLEEVE) (18 IN.) (1 required per assembly) — Replaces: 856822A2 |
  |
|
328M0043979 - Hose/Sleeve Assembly [ More info ]
|
| #24 | 822769 | CONNECTOR (1 required per assembly) |
  |
|
22-822769 - Connector [ More info ]
|
| #25 | 856880 | CLAMP @5 (1 required per assembly) |
  |
|
54-856880 - Clamp [ More info ]
|
  |
|
54-8M0214964 - CLAMP @5 [ More info ] Unavailable |
