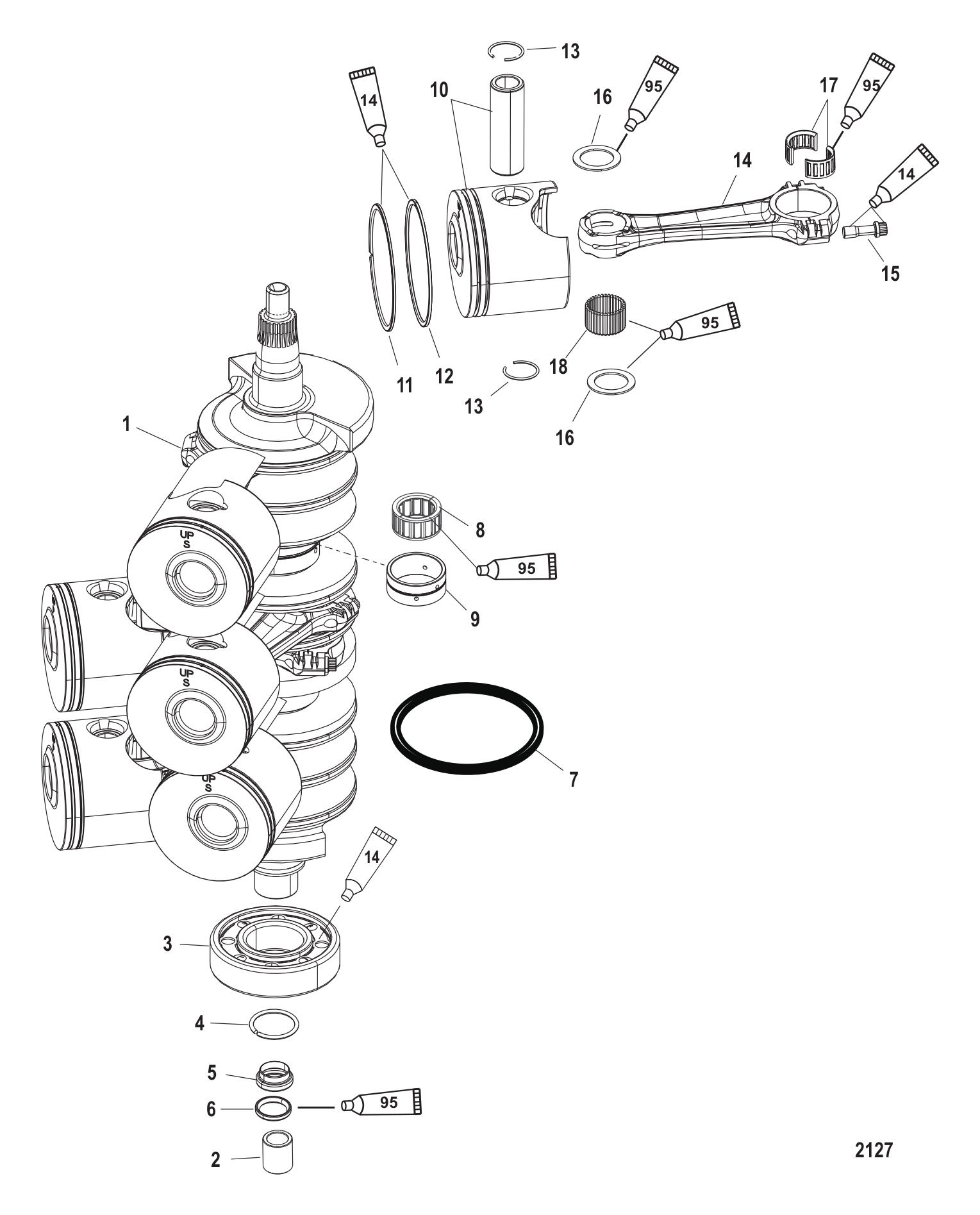

Parts for V-135 DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Crankshaft, Pistons & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0046714 | GASKET SET (1 required per assembly) — Replaces: 814754A00 |
  |
|
27-8M0046714 - Gasket Set [ More info ]
|
| #- | 879808T07 | PH 150 DFI 2.5L (150) (1 required per assembly) — Replaces: 879808T04 |
  |
|
879808T07 - Powerhead 150 Dfi 2.5L [ More info ] Unavailable |
| #- | 879809T07 | PH 175 DFI 2.5L (175) (1 required per assembly) — Replaces: 879809T01 |
  |
|
879809T07 - Powerhead 175 Dfi 2.5L [ More info ] Unavailable |
| #1 | 850690T2 | CRANKSHAFT ASSY (1 required per assembly) |
  |
|
455-850690T 2 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 78662 | WEAR SLEEVE (1 required per assembly) |
  |
|
|
| #3 | 67923T | BEARING BALL (LOWER) (1 required per assembly) |
  |
|
30-67923T - Ball Bearing [ More info ]
|
| #4 | 67446 | RING (1 required per assembly) |
  |
|
53-67446 - Ring - Retaining [ More info ]
|
| #5 | 54196A6 | CARRIER ASSEMBLY (1 required per assembly) |
  |
|
54196A 6 - Carrier Assembly [ More info ]
|
| #6 | 65800 | PACKING (1 required per assembly) |
  |
|
|
| #7 | 67377T | RING SEALING (7 required per assembly) — Replaces: 67377 |
  |
|
39-67377T - Seal Ring - Priced Individually [ More info ]
|
| #8 | 16756A6 | BEARING KIT (2 required per assembly) |
  |
|
31-16756A 6 - Bearing Kit [ More info ]
|
| #9 | NSS | NOT SOLD SEPARATE RACE (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #10 | 859563T17 | PISTON-STBD-STD (Starboard)(Standard) (3 required per assembly) — Replaces: 859563T4 |
  |
|
700-859563T17 - Piston - Stbd - Std [ More info ]
|
| #10 | 859562T17 | PISTON-PORT-STD (Port)(Standard) (3 required per assembly) — Replaces: 859562T4 |
  |
|
700-859562T17 - Piston - Port - Std [ More info ]
|
| #10 | 859563A5 | PISTON-STBD-.015 (Starboard)(.015 Oversize) (AR required per assembly) |
  |
|
700-859563A 5 - Piston - Stbd - .015 [ More info ]
|
| #10 | 859562A5 | PISTON-PORT-.015 (Port)(.015 Oversize) (AR required per assembly) |
  |
|
700-859562A 5 - Piston - Port - .015 [ More info ]
|
| #11 | 877544A12 | RING SET (Standard) (1 required per assembly) |
  |
|
39-877544A12 - Rings - Standard [ More info ]
|
| #11 | 878106A12 | RING SET PISTON (.015 Oversize) (AR required per assembly) |
  |
|
39-878106A12 - Rings - .015 [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE PISTON RING-LOWER (1 required per assembly) |
| #13 | 8320811 | LOCK RING (12 required per assembly) |
  |
|
53-832081 1 - Lock Ring [ More info ]
|
| #14 | 877853A04 | CONN ROD KIT (6 required per assembly) — Replaces: 877853A2 |
  |
|
600-877853A04 - Connecting Rod Kit [ More info ]
|
| #15 | 763491 | SCREW (.312-24 X .875) (12 required per assembly) |
  |
|
0763491 - Speedometer Cap/Jumper (763491) [ More info ]
|
| #16 | 8M0012299 | THRUST WASHER (12 required per assembly) — Replaces: 877541 |
  |
|
12-8M0012299 - Thrust Washer [ More info ]
|
| #17 | 8M0045428 | BEARING KIT (3 required per assembly) — Replaces: 17514A1 |
  |
|
31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886 |
  |
|
8M0234886 CAGE BEARING [ More info ]
|
| #18 | 8M0204691 | BRG-NEEDLE @200 (204 required per assembly) — Replaces: 822553 |
  |
|
298M0204691 - Bearing needle [ More info ]
|
