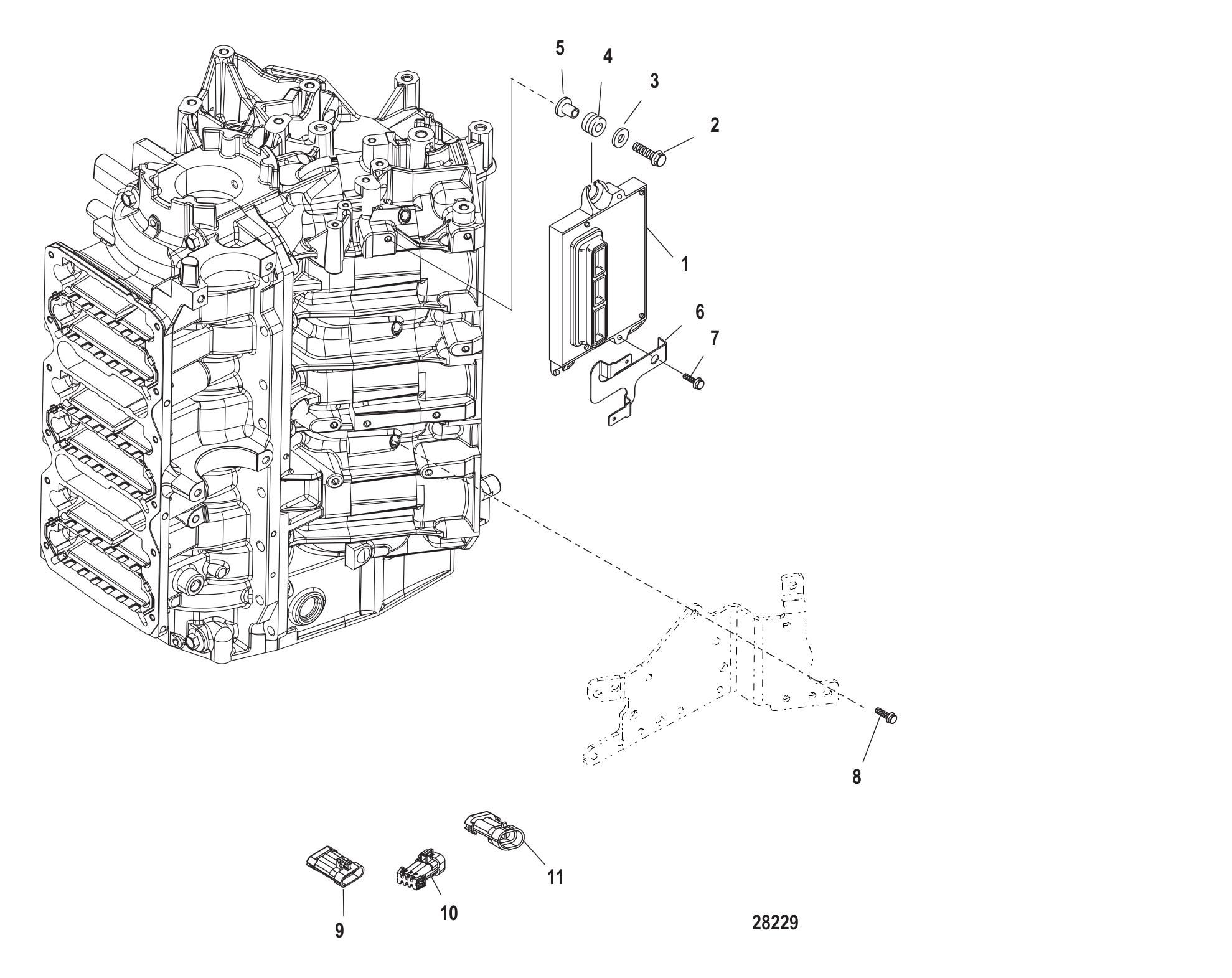

Parts for 150 Pro XS (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Pcm Mounting
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0047652 | PCM [1B934545] & Below (1 required per assembly) |
  |
|
8M0047652 - PCM Propulsion Control [ More info ] Unavailable |
| #1 | 8M0073375 | PCM PROPULSION CONTROL MODULE (150 PROXS) [1B934546] & Up (1 required per assembly) |
  |
|
8M0073375 - PCM Propulsion Control [ More info ]
|
| #2 | 82130025 | SCREW @5 (3 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #3 | 65567 | WASHER @2 (3 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #4 | 834985 | GROMMET @5 (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #5 | 856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #6 | 891520001 | CLIP (1 required per assembly) |
  |
|
54-891520001 - Clip [ More info ]
|
| #7 | 82129114 | SCREW (1 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #8 | 82130012 | SCREW @5 (3 required per assembly) |
  |
|
10-821300 12 - Screw - Priced Individually [ More info ]
|
| #9 | 830796A04 | CONNECTOR KIT (1 required per assembly) |
  |
|
830796A04 - Connector Kit [ More info ]
|
| #10 | 877613A02 | CONNECTOR (1 required per assembly) |
  |
|
877613A02 - Connector [ More info ]
|
| #11 | 830796A03 | CONNECTOR Jet (1 required per assembly) |
  |
|
830796A03 - Connector [ More info ]
|
