Parts for Jp 3.0L DFI 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Pump

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > Jp 3.0L DFI > 0T997974 - 1E003045 > Fuel Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

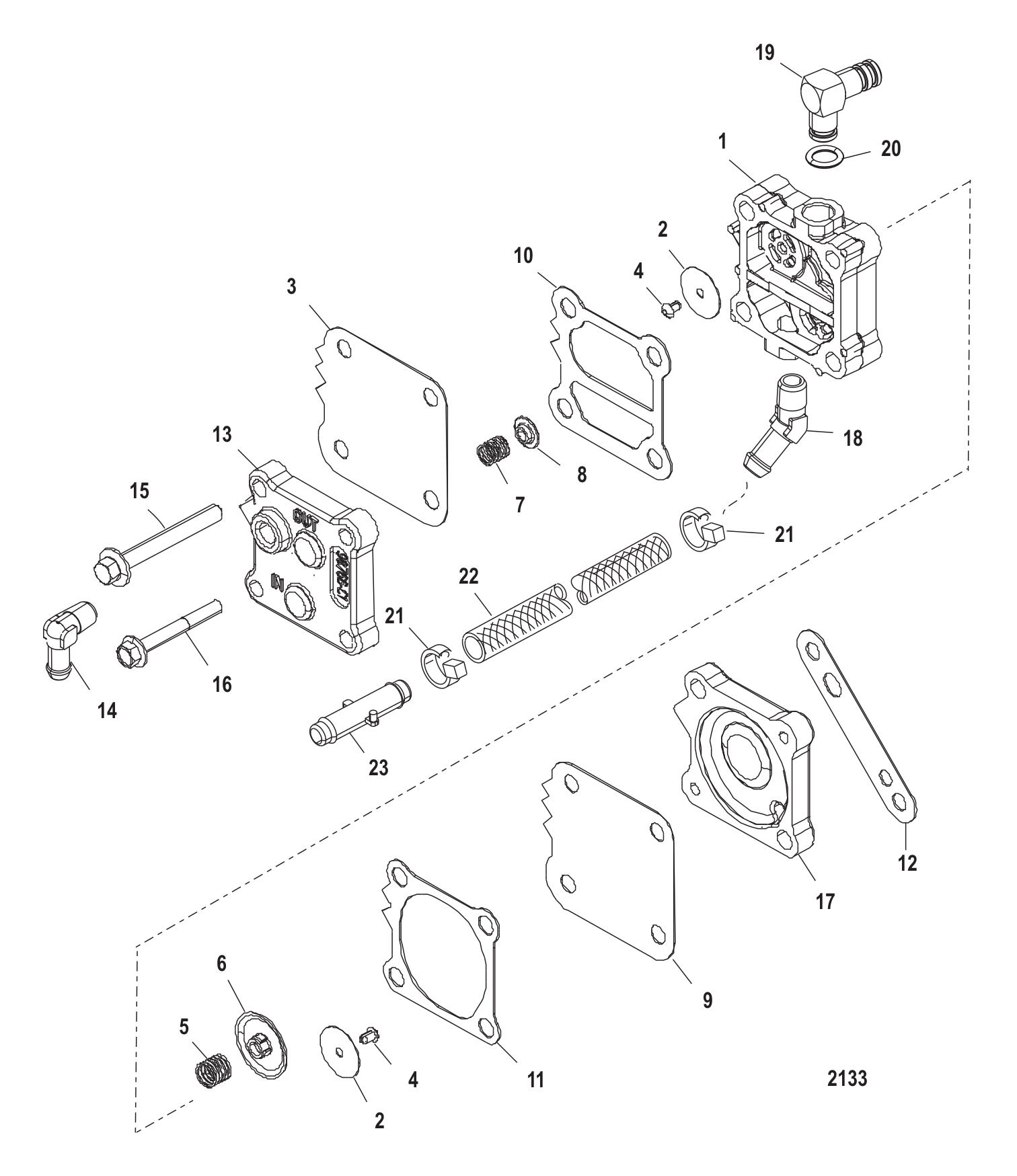

Fuel Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360T74	FUEL PUMP ASSY (1 required per assembly)
		14360T74 - Fuel Pump [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#-	841220A03	GASKET SET (1 required per assembly)
		27-841220A03 - Powerhead Gasket Set [ More info ] $336.99 Available to Order: Shipping delay up to 10 days.
#1	NSS	NOT SOLD SEPARATE FUEL PUMP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (1 required per assembly)
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 9 In Stock.
#3	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#10	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#11	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#12	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 1 In Stock.
#13	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#14	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly)
		22-99664 2 - Elbow [ More info ] $2.69 9 In Stock.
#15	82104540	SCREW (M5 X 40) FUEL PUMP (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	82130050	SCREW (M6 X 50) PUMP TO CRANKCASE (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#17	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#18	782792	FITTING ELBOW 45 DEGREE (1.25) (1 required per assembly)
		22-78279 2 - Elbow [ More info ] Unavailable
		22-8M0207781 - ELBOW [ More info ] Unavailable
#19	888493	ELBOW (1 required per assembly)
		22-888493 - Fitting [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#20	8M0204683	O RING @10 (1 required per assembly) — Replaces: 805063
		25-8M0204683 - O RING Note: Priced Individually [ More info ] $2.79 9 In Stock.
#21	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#22	8M0043979	HOSE/SLEEVE ASSY (1 required per assembly) — Replaces: 856822A2
		328M0043979 - Hose/Sleeve Assembly [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#23	822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
