Parts for 75 DFI (3 Cyl.) (1.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Flywheel & Alternator

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 75 DFI (3 Cyl.) (1.5L) > 1B227000 - 1B417701 - USA > Flywheel & Alternator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

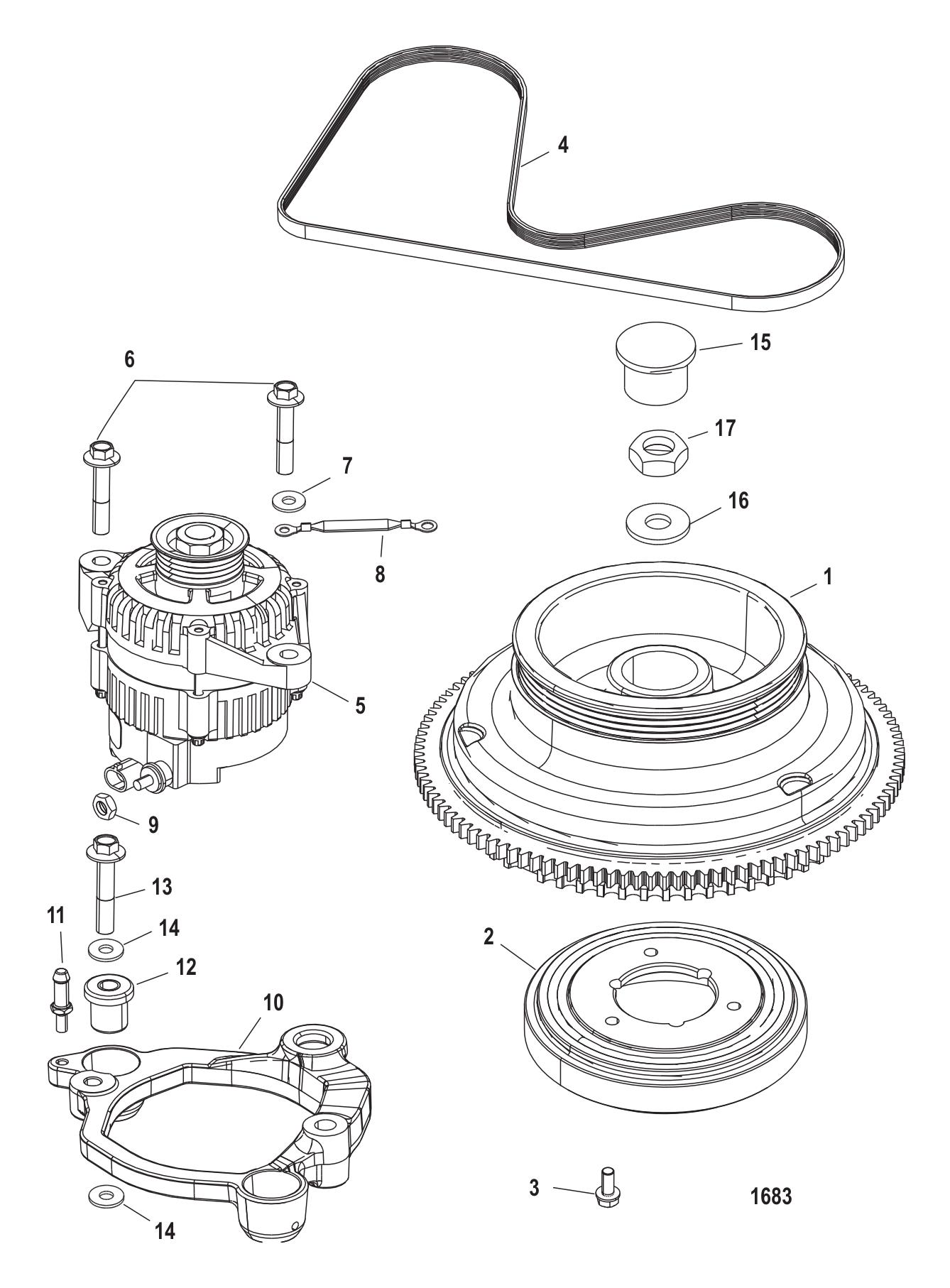

Flywheel & Alternator

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	878588T08	FLYWHEEL (1 required per assembly) — Replaces: 878588T03
		200-878588T08 - Flywheel [ More info ] $770.99 Available to Order: Shipping delay up to 10 days.
#2	888842T01	DAMPER (1 required per assembly) — Replaces: 888842T
		888842T01 - Damper [ More info ] $178.99 Available to Order: Shipping delay up to 10 days.
#3	889678	SCREW (M8 X 20) (3 required per assembly)
		10-889678 - Screw - Priced Individually [ More info ] Unavailable
		108M0143223 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#4	8M0026410	BELT (1 required per assembly) — Replaces: 892318, 8M0012623
		57-8M0026410 - Belt [ More info ] $73.99 In Stock
#5	8M0064020	ALTERNATOR (1 required per assembly) — Replaces: 881247A1
		8M0064020 - Alternator [ More info ] In Stock
		20850 - Alternator [ More info ] $521.01 $489.30 In Stock
		8M6013461 - Alternator V-6 O/B [ More info ] $801.49 Available to Order: Shipping delay up to 10 days.
#6	82130150	SCREW (2 required per assembly)
		10-821301 50 - Screw [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#7	4002319	WASHER @3 (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#8	856583A5	CABLE ASSY (1 required per assembly)
		84-856583A 5 - Cable Assembly [ More info ] $37.49 $35.92 2 In Stock.
#9	401386	NUT @5 (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#10	879856T02	BRACKET (1 required per assembly)
		879856T02 - Bracket [ More info ] $104.99 Available to Order: Shipping delay up to 10 days.
#11	8215832	PIN SPECIAL (1.5 INCHES) (1 required per assembly)
		821583 2 - Pin (Special) [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#12	856975	MOUNT (3 required per assembly)
		23-856975 - Mount [ More info ] $83.49 Available to Order: Shipping delay up to 10 days.
#13	82130145	SCREW (3 required per assembly)
		10-821301 45 - Screw [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#14	855725	WASHER (6 required per assembly)
		12-855725 - Washer [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#15	45907	PLUG (1 required per assembly)
		19-45907 - Plug [ More info ] $7.09 2 In Stock.
#16	33001	WASHER @2 (1 required per assembly) — Replaces: 68229
		12-33001 - Washer, Flywheel Nut [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#17	42979	NUT (1 required per assembly)
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
