Parts for 75 DFI (3 Cyl.) (1.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Bleed System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 75 DFI (3 Cyl.) (1.5L) > 1B227000 - 1B417701 - USA > Bleed System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

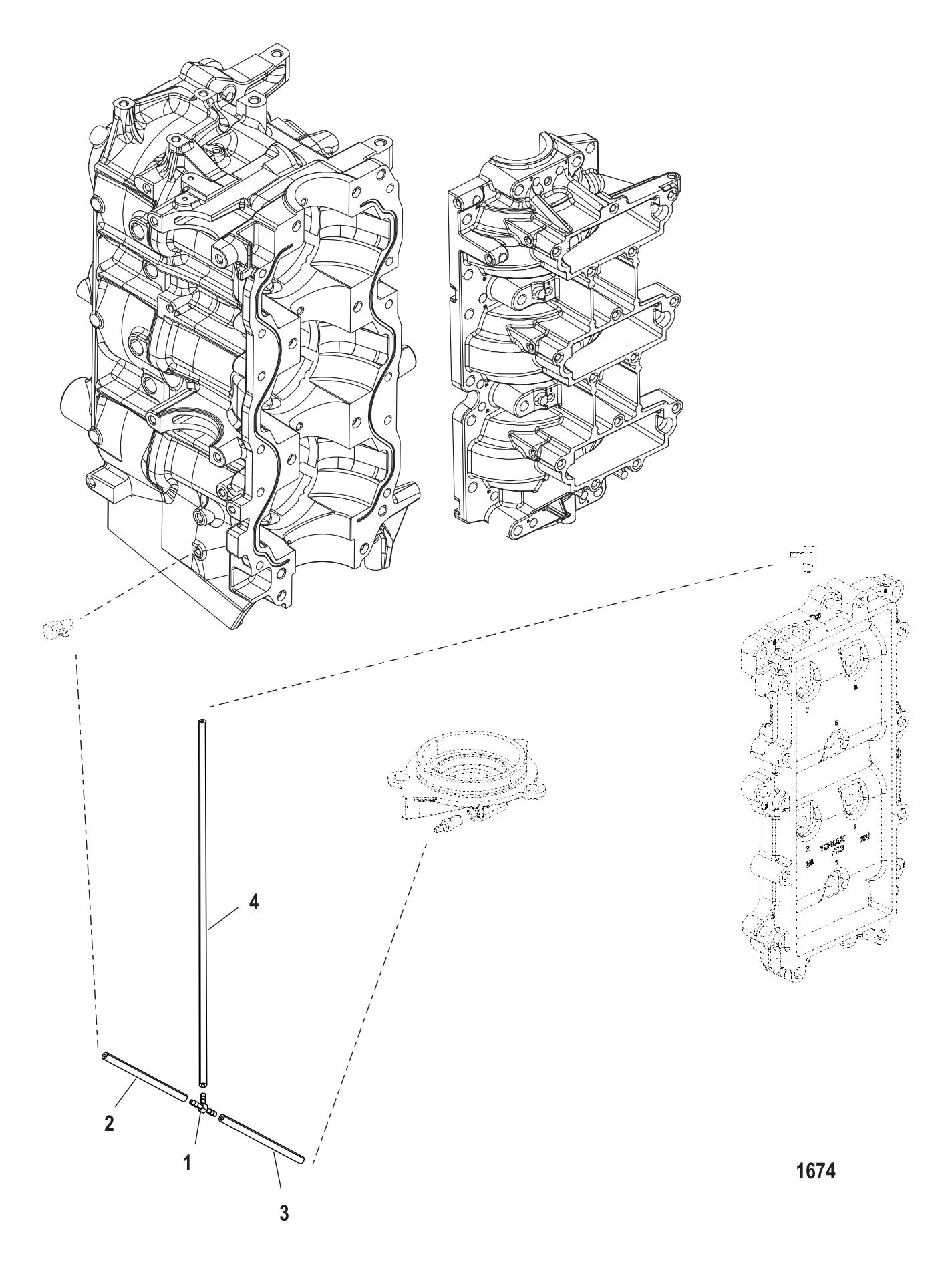

Bleed System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#0	895233A07	PH 75DFI 3CYL 75 (1 required per assembly) — Replaces: 895233A05
		895233A07 - Powerhead 75DFI 3 Cylinder [ More info ] Unavailable
#0	891767A07	PH 90/115DFI 3CYL 90/115 (1 required per assembly) — Replaces: 891767A04
		891767A07 - Powerhead 90/115DFI 3 Cylinder [ More info ] Unavailable
#1	59169003	FITTING @2 (1 required per assembly)
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#2	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 3-1/4 INCHES) (1 required per assembly) — Replaces: 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#3	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 3-1/4 INCHES) (1 required per assembly) — Replaces: 85606065
#4	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 19 INCHES) (1 required per assembly) — Replaces: 85606065
