Parts for 300XS (3.2L DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Gear Housing Drive-Sr / Cr Fleetmaster 1E053149 & Up

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 300XS (3.2L DFI) > 1E052058 & Up - USA > Gear Housing Drive-Sr / Cr Fleetmaster 1E053149 & Up

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

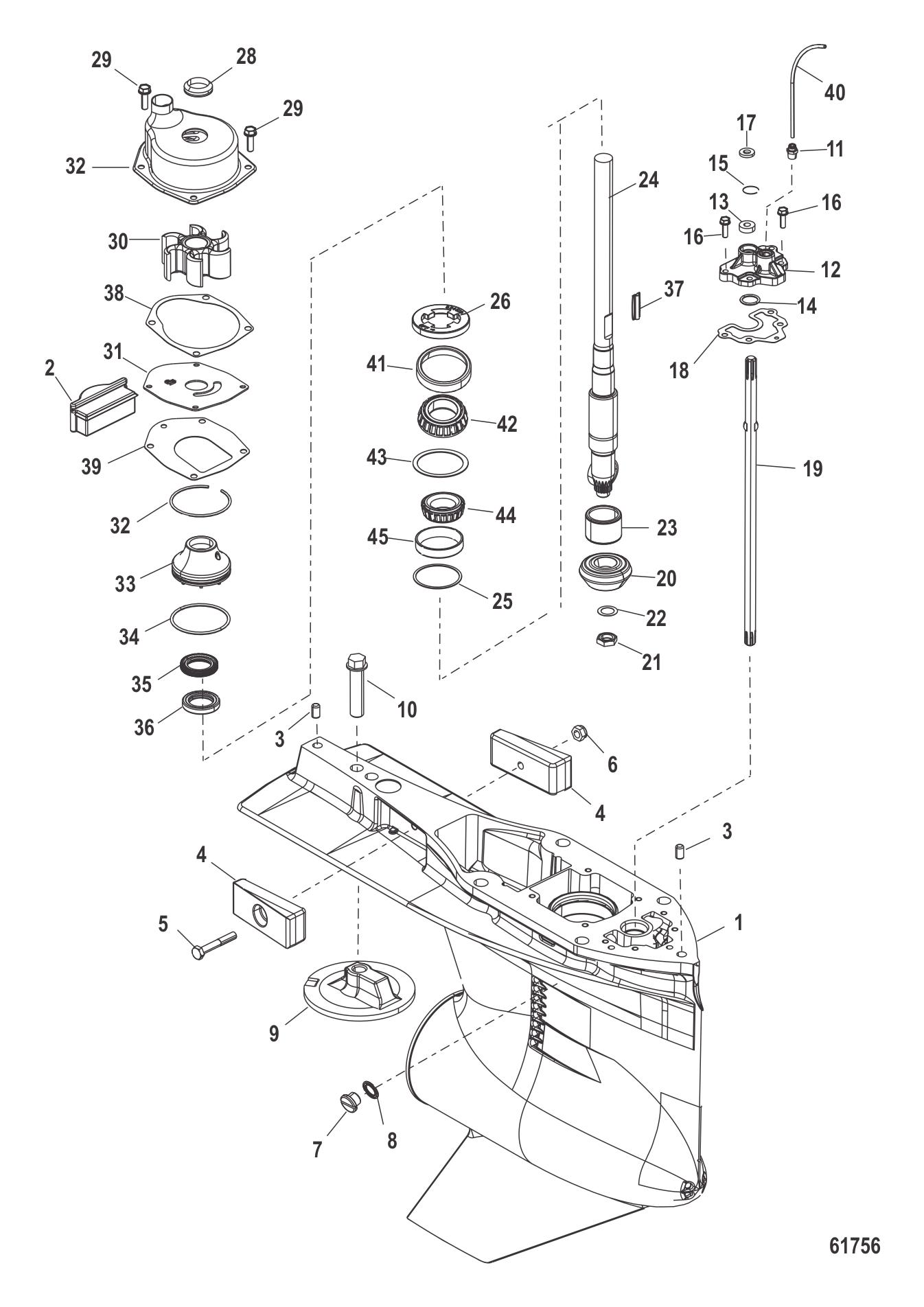

Gear Housing Drive-Sr / Cr Fleetmaster 1E053149 & Up

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	842004T26	GC DSI S 1.75 XL (1 required per assembly)
		1689842004T26 - GC DSI S 1.75 XL [ More info ] Unavailable
		1600-8M0236198 - GC DSI XL 1.75 [ More info ] Unavailable
#-	842004T28	GC ASSY. 1.75 XXL (1 required per assembly)
		1689842004T28 - GC ASSY. 1.75 XXL [ More info ] Unavailable
#-	842004T27	GC DSI S 1.75 CXL (1 required per assembly)
		1689842004T27 - GC DSI S 1.75 CXL [ More info ] Unavailable
		1600-8M0236209 - GC DSI CXL 1.75 [ More info ] Unavailable
#-	8M0131315	GEAR HOUSING (1 required per assembly) — Replaces: 842004T07
		16008M0131315 - Gear Housing [ More info ] Unavailable
#-	830749A01	SEAL KIT-G/H (1 required per assembly)
		26-830749A01 - Gear Housing Seal Kit [ More info ] $72.99 In Stock
#-	8M0100526	REPAIR KIT - IMP (1 required per assembly)
		47-8M0100526 - Impeller Repair Kit [ More info ] $66.99 6 In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $60.49 $59.34 10+ In Stock.
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $42.99 $42.32 10+ In Stock.
		47-8M0100527 - Repair Kit - Impeller [ More info ] $73.50 Available to Order: Shipping delay up to 10 days.
		46-01811 - Water Pump Kit without Housing 47-43026T11, Q06 [ More info ] $46.99 $45.81 10+ In Stock.
#-	817275A08	REPAIR KIT-W/P (1 required per assembly)
		817275A08 - Water Pump Repair Kit [ More info ] $117.99 $113.49 In Stock
		18-3406 - Water Pump Kit 817275A08 [ More info ] $103.26 3 In Stock.
#1	842004T29	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		1600842004T29 - GH DSI S [ More info ] Unavailable
#2	8M0010459	FILLER BLOCK (1 required per assembly)
		8M0010459 - Filler Block [ More info ] $23.09 Available to Order: Shipping delay up to 10 days.
#3	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#4	826134Q	ANODE (1 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 6 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 5 In Stock.
#5	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#6	401386	NUT (M6) STAINLESS STEEL (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#7	79953A04	PLUG ASSEMBLY (.375-16 X .250) (1 required per assembly)
		10-79953A04 - Drain Screw Kit [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
		10-02699 - Drain Plug [ More info ] $3.59 $2.75 10+ In Stock.
#8	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#9	76214T5	ANODE KIT (Mercury) (1 required per assembly)
		97-76214T 5 - Anode Kit, Aluminum, Priced Individually [ More info ] Unavailable
		18-6244 - Anode, Magnesium, Plate Only - No Fin, 76214 [ More info ] $25.59 $24.49 6 In Stock.
		18-6016A - Anode, Aluminum, Plate Only - No Fin [ More info ] $29.75 In Stock
		18-6016 - Anodic Plate, Zinc, Plate Only - No Fin 76214 [ More info ] $26.41 3 In Stock.
		97-8M0059339 - Anode, Aluminum, BULK-10PC 76214A 6 QS [ More info ] $194.99 $192.22 Available to Order: Shipping delay up to 10 days.
#9	76214Q5	ANODE KIT (Quicksilver) (1 required per assembly)
		97-76214Q 5 - Anode, Outboard & MCM Aluminum - Priced Individually [ More info ] Unavailable
#10	8M0204686	SCREW (1 required per assembly) — Replaces: 806327
		10-8M0204686 - Trim Tab Anode Screw, Outboard [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#11	881866	FITTING (1 required per assembly)
		22-881866 - Fitting [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#12	8M0047129	COVER ASSEMBLY (1 required per assembly)
		8M0047129 - Cover Assembly [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#13	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#14	896522	O-RING (799 X .103) (1 required per assembly)
		25-896522 - O-ring, (799 X .103) [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#15	8M0046563	RETAINING RING (1 required per assembly)
		53-8M0046563 - Retainer Ring [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#16	8M0204741	SCREW @4 (4 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#17	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#18	880729	GASKET (1 required per assembly)
		27-880729 - Gasket [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#19	824145	SHIFT SHAFT (1 required per assembly)
		824145 - Shift Shaft - Lower [ More info ] $92.93 1 In Stock.
#20	NSS	NOT SOLD SEPARATE PINION GEAR Component of 892595A04 and 8M0119539 (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#21	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#22	92721	WASHER (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
#23	42647A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $42.20 Available to Order: Shipping delay up to 10 days.
#24	895080T	DRIVESHAFT X-LONG (1 required per assembly)
		45-895080T - Drive Shaft [ More info ] $495.49 Available to Order: Shipping delay up to 10 days.
#24	895081T	DRIVESHAFT XX-LONG (1 required per assembly)
		45-895081T - Drive Shaft [ More info ] $487.49 Available to Order: Shipping delay up to 10 days.
#25	8M0063268	SHIM SET (AR required per assembly)
		15-8M0063268 - Shim Set [ More info ] $31.57 4 In Stock.
#26	8245191	RETAINER (1 required per assembly)
		824519 1 - Retainer [ More info ] $6.99 1 In Stock.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#27	817275A09	HOUSING WATER PUMP-COMPLETE (1 required per assembly)
		817275A09 - Water Pump Repair Kit [ More info ] $129.99 $124.49 In Stock
#28	861415A1	SEAL KIT (1 required per assembly)
		26-861415A 1 - Seal Kit -mcm [ More info ] $15.39 Available to Order: Shipping delay up to 10 days.
#29	8M0204741	SCREW @4 (4 required per assembly) — Replaces: 40011128, 8M4503518
#30	43026T2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 6 In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $26.12 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#31	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#32	880719	RING RETAINING (1 required per assembly)
		53-880719 - Ring - Retaining [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#33	8M0007131	CARRIER ASSEMBLY OIL SEAL (1 required per assembly)
		8M0007131 - Carrier Assembly Oil Seal [ More info ] $55.55 2 In Stock.
#34	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 1 In Stock.
#35	NSS	NOT SOLD SEPARATE OIL SEAL (1 required per assembly)
#36	NSS	NOT SOLD SEPARATE OIL SEAL (1 required per assembly)
#37	8M0204723	KEY @2 (1 required per assembly) — Replaces: 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 2 In Stock.
#38	8172771	GASKET (1 required per assembly)
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 10+ In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#39	8M0142616	GASKET FACE PLATE TO GEARCASE (1 required per assembly) — Replaces: 8M0050720, 8M0112903
		27-8M0142616 - Gasket LOWER [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#40	85944975	TUBING (72.00 INCHES BULK) (CUT TO 12 INCHES) (1 required per assembly)
		32-859449 75 - Tubing - 72 Inches [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
#41	8M0146566	BEARING ASSEMBLY CUP/CONE (1 required per assembly) — Replaces: 36387A1
		318M0146566 - Bearing CUP Cone [ More info ] $74.99 $74.83 Available to Order: Shipping delay up to 10 days.
		31-02194 - Bearing Kit 31-36387A 1 [ More info ] $52.49 $41.29 In Stock
#42	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#43	8M0063267	SHIM SET (1 required per assembly)
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#44	8M0146553	BEARING ASSEMBLY CUP/CONE (1 required per assembly) — Replaces: 48939A2
		318M0146553 - Bearing ASSY [ More info ] $27.23 1 In Stock.
#45	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
