Parts for 250XS (3.0L DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Gear Housing Propeller Shaft-Counter-Fleetmaster

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 250XS (3.0L DFI) > 0T818043 - 0T997973 - USA > Gear Housing Propeller Shaft-Counter-Fleetmaster

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

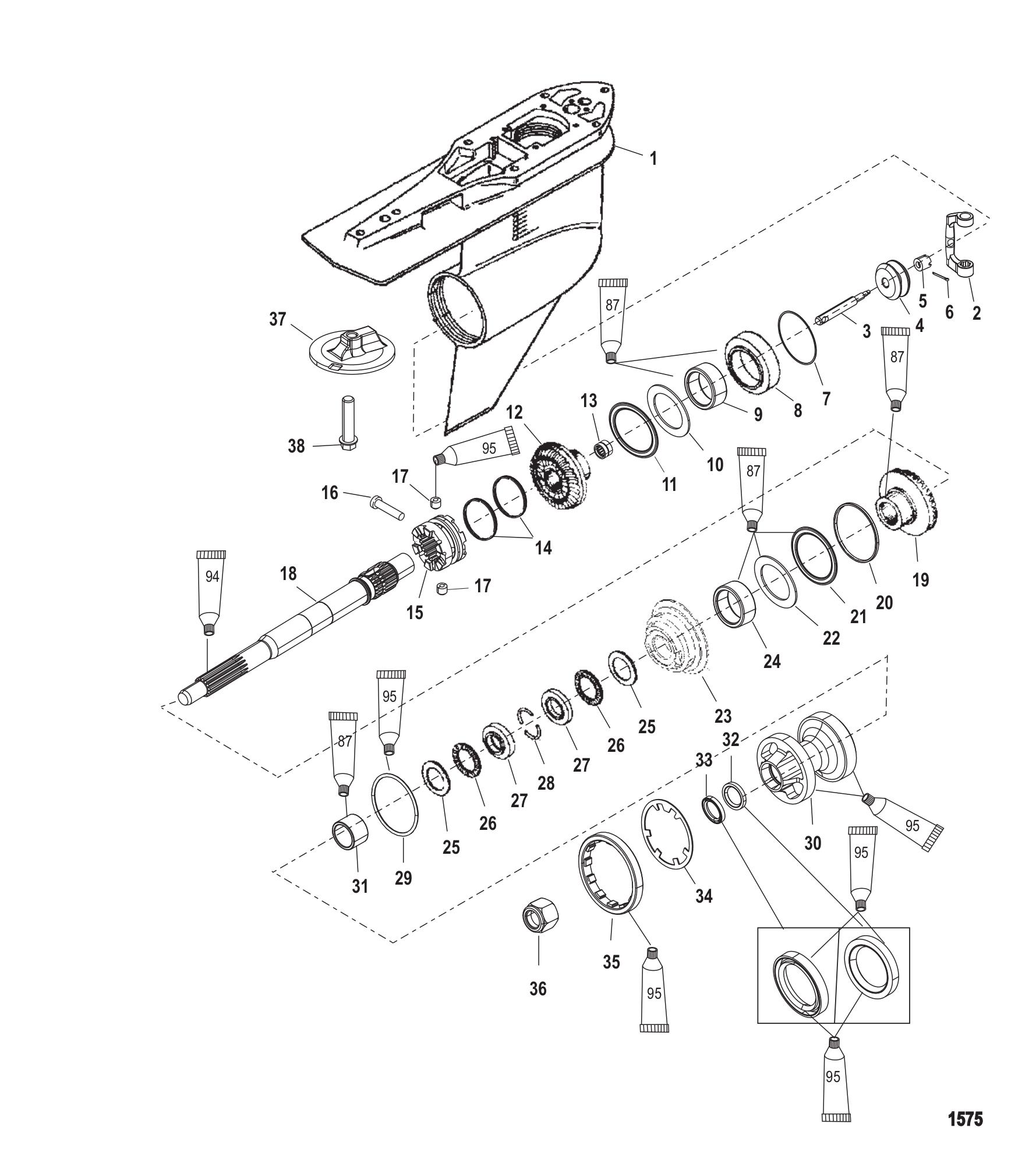

Gear Housing Propeller Shaft-Counter-Fleetmaster

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	842004T05	GEAR HOUSING ASSEMBLY COMPLETE (X-LONG) (1 required per assembly) — Replaces: 859399T23, 859399T40
		1689-842004T05 - Gear Housing Assembly [ More info ] Unavailable
		1689842004T27 - GC DSI S 1.75 CXL [ More info ] Unavailable
		1600-8M0236209 - GC DSI CXL 1.75 [ More info ] Unavailable
#-	8M0131315	GEAR HOUSING (XX-LONG) (1 required per assembly) — Replaces: 859399A26, 842004T07
		16008M0131315 - Gear Housing [ More info ] Unavailable
#-	840389K06	HUB KIT-HD PROP (1 required per assembly)
		840389K06 - Hub Kit -hd Prop [ More info ] Unavailable
		8M0183487 - HUB KIT-HD PROP [ More info ] $205.54 Available to Order: Shipping delay up to 10 days.
#-	840382A02	SNUBBER STRIP KIT (1 required per assembly)
		840382A02 - Snubber Strip Kit [ More info ] $28.67 1 In Stock.
#-	816575A4	SEAL KIT (1 required per assembly)
		26-816575A 4 - Seal Kit [ More info ] $48.49 In Stock
		26-00835 - Lower Unit Seal Kit, 26-816575A 4 [ More info ] $35.84 2 In Stock.
#1	859399T24	GEAR HOUSING ASSEMBLY COMPLETE BASIC (1 required per assembly)
		1623-859399T24 - Gear Housing Assembly [ More info ] Unavailable
#2	823903	SHIFT CRANK (1 required per assembly)
		823903 - Crank [ More info ] Unavailable
		8M0226861 - CRANK-SHIFTER [ More info ] Unavailable
#3	19755T7	SPOOL ASSEMBLY (1 required per assembly)
		19755T 7 - Spool Assembly [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE SPOOL (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE SLEEVE (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE COTTER PIN (1 required per assembly)
#7	8M0063266	SHIM SET (AR required per assembly) — Replaces: 44491A1
		15-8M0063266 - Shim Set [ More info ] $52.99 $50.80 10+ In Stock.
#8	828830A2	ADAPTER ASSEMBLY BEARING (1 required per assembly)
		828830A 2 - Adaptor Assembly [ More info ] $79.99 1 In Stock.
#9	814653T	BEARING ASSEMBLY NEEDLE ROLLERS (1 required per assembly)
		31-814653T - Bearing - Needle Rollers [ More info ] $103.99 $24.96 10+ In Stock.
#10	815481	THRUST WASHER (1 required per assembly)
		12-815481 - Thrust Washer [ More info ] $24.09 $23.12 10 In Stock.
#11	815480	BEARING THRUST (1 required per assembly)
		31-815480 - Thrust Bearing [ More info ] $32.49 $7.81 10+ In Stock.
#12	828696T2	GEAR REVERSE (12/21) (1 required per assembly)
		43-828696T 2 - Reverse Gear Assembly [ More info ] $538.49 Available to Order: Shipping delay up to 10 days.
#13	15844	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-15844 - Roller Bearing [ More info ] $21.29 $11.22 10+ In Stock.
#14	78962	SPRING (2 required per assembly)
		24-78962 - Spring, Retaining - Cross Pin [ More info ] $11.49 6 In Stock.
#15	848878T	CLUTCH (1 required per assembly)
		52-848878T - Clutch [ More info ] $341.99 Available to Order: Shipping delay up to 10 days.
#16	848838	PIN CROSS (1 required per assembly)
		17-848838 - Pin, Cross [ More info ] $45.49 Available to Order: Shipping delay up to 10 days.
#17	78909	PIN DETENT (2 required per assembly)
		17-78909 - Pin, Detent [ More info ] $19.19 $18.40 9 In Stock.
#18	8M0140448	PROP SHAFT LH (1 required per assembly) — Replaces: 824111
		44-8M0140448 - PROP Shaft LH [ More info ] $721.49 Available to Order: Shipping delay up to 10 days.
#19	828695A1	GEAR SET FORWARD/PINION (12/21) (1 required per assembly)
		43-828695A 1 - Forward Gear [ More info ] $843.49 Available to Order: Shipping delay up to 10 days.
#20	1761514	SPACER SHIM (.206) (.206 Inch) (AR required per assembly)
		23-17615 14 - Spacer - Shim - .206 Inch [ More info ] $37.47 1 In Stock.
#20	1761515	SPACER SHIM (.208) (.208 Inch) (AR required per assembly)
		23-17615 15 - Spacer Shim - .208 Inch [ More info ] $65.63 1 In Stock.
#20	1761516	SPACER SHIM (.210) (.210 Inch) (AR required per assembly)
		23-17615 16 - Spacer Shim - .210 Inch [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#20	1761517	SPACER SHIM (.212) (.212 Inch) (AR required per assembly)
		23-17615 17 - Spacer Shim - .212 Inch [ More info ] $51.99 $49.84 2 In Stock.
#20	1761518	SPACER SHIM (.214) (.214 Inch) (AR required per assembly)
		23-17615 18 - Spacer Shim - .214 Inch [ More info ] $62.47 3 In Stock.
#20	1761519	SPACER SHIM (.216) (.216 Inch) (AR required per assembly)
		23-17615 19 - Spacer Shim - .216 Inch [ More info ] $62.55 1 In Stock.
#20	1761520	SPACER SHIM (.218) (.218 Inch) (AR required per assembly)
		23-17615 20 - Spacer Shim - .218 [ More info ] $66.98 1 In Stock.
#20	1761521	SPACER SHIM (.220) (.220 Inch) (AR required per assembly)
		23-17615 21 - Spacer Shim - .220 Inch [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#20	1761522	SPACER SHIM (.222) (.222 Inch) (AR required per assembly)
		23-17615 22 - Spacer Shim - .222 Inch [ More info ] $33.29 $31.92 2 In Stock.
#20	1761523	SPACER SHIM (.224) (.224 Inch) (AR required per assembly)
		23-17615 23 - Spacer Shim - .224 Inch [ More info ] $34.05 1 In Stock.
#20	1761524	SPACER SHIM (.226) (.226 Inch) (AR required per assembly)
		23-17615 24 - Spacer Shim - .226 Inch [ More info ] $19.89 1 In Stock.
#20	1761525	SPACER SHIM (.228) (.228 Inch) (AR required per assembly)
		23-17615 25 - Spacer Shim - .228 Inch [ More info ] $27.23 1 In Stock.
#20	1761526	SPACER SHIM (.230) (.230 Inch) (AR required per assembly)
		23-17615 26 - Spacer Shim - .230 Inch [ More info ] $63.65 1 In Stock.
#21	815480	BEARING THRUST (1 required per assembly)
#22	815481	THRUST WASHER (1 required per assembly)
#23	828831A3	ADAPTER ASSEMBLY BEARING (1 required per assembly)
		828831A 3 - Adaptor Assembly [ More info ] $307.99 Available to Order: Shipping delay up to 10 days.
#24	814653T	BEARING ASSEMBLY NEEDLE ROLLERS (1 required per assembly)
#25	18448	THRUST WASHER (2 required per assembly)
		12-18448 - Thrust Washer [ More info ] $10.19 $2.05 7 In Stock.
#26	15842	BEARING THRUST (2 required per assembly)
		31-15842 - Thrust Bearing [ More info ] $42.07 10+ In Stock.
#27	8182911	RACE THRUST (2 required per assembly)
		818291 1 - Race - Thrust [ More info ] $115.62 10+ In Stock.
#28	814605	KEEPER (2 required per assembly)
		814605 - Keeper - Priced Individually [ More info ] $12.49 $2.50 10+ In Stock.
#29	31534	O-RING (1 required per assembly)
		25-31534 - O-Ring, Bearing Carrier [ More info ] Unavailable
		25-8M0214920 - Bell Housing O-Ring Note: Priced Individually [ More info ] $6.29 6 In Stock.
#30	818290T8	CARRIER ASSEMBLY BEARING (1 required per assembly)
		818290T 8 - Bearing Carrier [ More info ] $253.99 Available to Order: Shipping delay up to 10 days.
#31	30956T	BEARING NEEDLE (1 required per assembly)
		31-30956T - Roller Bearing [ More info ] $19.49 4 In Stock.
#32	14077	SEAL OIL INSIDE (1 required per assembly)
		26-14077 - Seal [ More info ] $19.49 5 In Stock.
		18-2077 - Seal 26-14077 [ More info ] $18.06 1 In Stock.
#33	8M0204670	SEAL @5 OUTSIDE (1 required per assembly) — Replaces: 76868
		26-8M0204670 - Gearcase Seal, Priced Individually [ More info ] $19.19 5 In Stock.
#34	18323	TAB WASHER (1 required per assembly)
		14-18323 - Tab Washer, Keyed [ More info ] $24.89 10+ In Stock.
		18-2298 - Washer, 14-18323 [ More info ] $19.99 $16.05 In Stock
#35	8M2000347	RETAINER (1 required per assembly) — Replaces: 79448, 8M2011027
		8M2000347 - Retainer [ More info ] Unavailable
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $43.49 In Stock
#36	52707Q1	PROP NUT KIT (.750-16) (1 required per assembly)
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
#37	76214Q5	ANODE(ALUM) @2 (1 required per assembly) — Replaces: 762145
		97-76214Q 5 - Anode, Outboard & MCM Aluminum - Priced Individually [ More info ] Unavailable
		18-6244 - Anode, Magnesium, Plate Only - No Fin, 76214 [ More info ] $25.59 $24.49 6 In Stock.
		18-6016A - Anode, Aluminum, Plate Only - No Fin [ More info ] $29.75 In Stock
		18-6016 - Anodic Plate, Zinc, Plate Only - No Fin 76214 [ More info ] $26.41 3 In Stock.
		97-8M0059339 - Anode, Aluminum, BULK-10PC 76214A 6 QS [ More info ] $194.99 $192.22 Available to Order: Shipping delay up to 10 days.
#38	66024	SCREW @2 (1 required per assembly)
		10-66024 - Screw - Priced Individually [ More info ] $9.69 6 In Stock.
