Parts for 250 Pro XS (3.0L DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Flywheel / Alternator

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 250 Pro XS (3.0L DFI) > 1B426561 - 1B752546 - USA > Flywheel / Alternator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

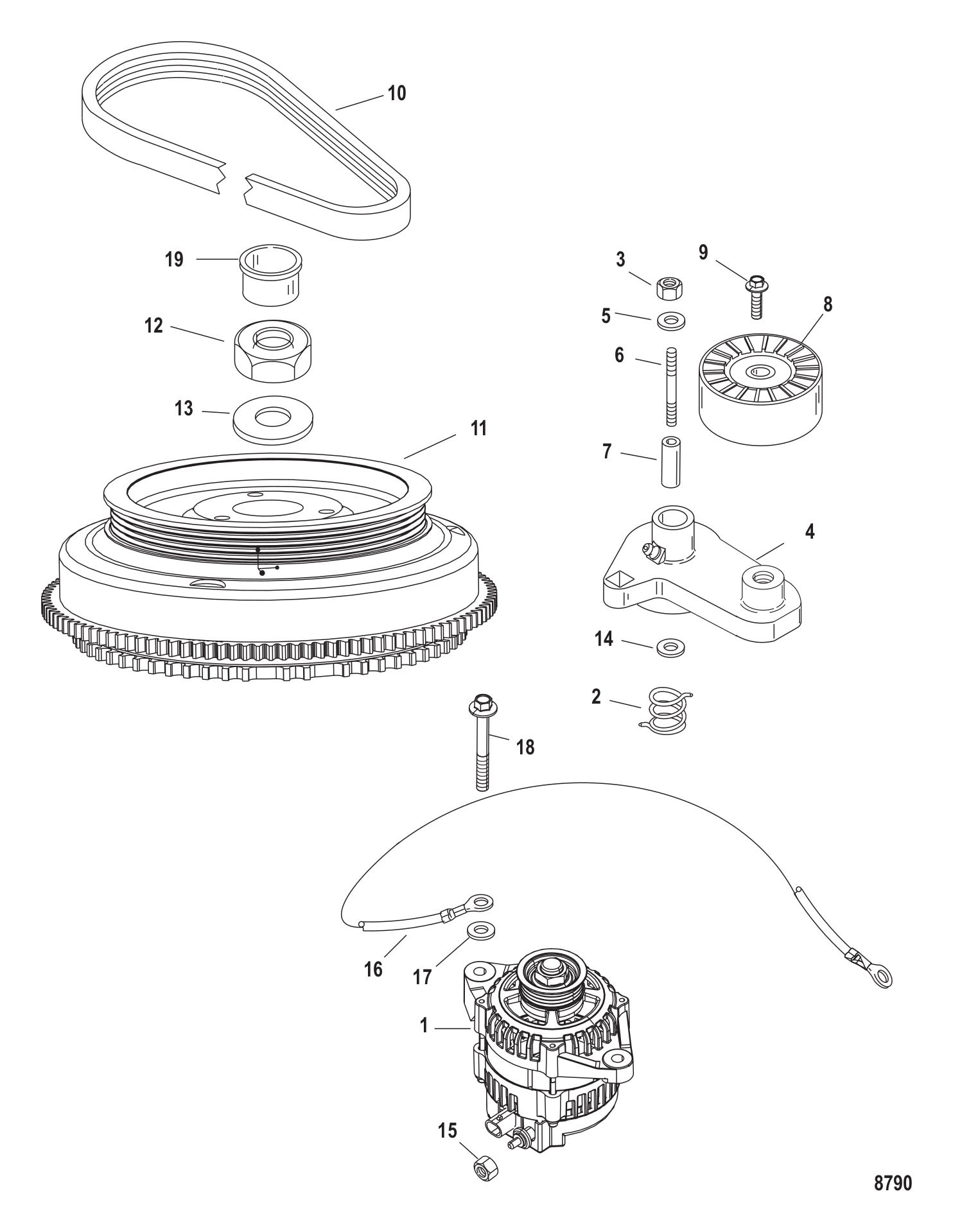

Flywheel / Alternator

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0064020	ALTERNATOR ( required per assembly) — Replaces: 881247A1
		8M0064020 - Alternator [ More info ] In Stock
		20850 - Alternator [ More info ] $521.01 $489.30 In Stock
		8M6013461 - Alternator V-6 O/B [ More info ] $801.49 Available to Order: Shipping delay up to 10 days.
#2	8523742	SPRING (1 required per assembly)
		24-852374 2 - Spring [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#3	400636	NUT (1 required per assembly)
		11-40063 6 - Nut [ More info ] $17.39 $13.92 5 In Stock.
#4	856815T2	ARM TENSIONER ASY (1 required per assembly)
		856815T 2 - Arm Tensioner Assembly [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#5	4002320	WASHER @5 (1 required per assembly)
		12-40023 20 - Washer - Priced Individually [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#6	8M0034457	STUD (1 required per assembly)
		16-8M0034457 - Stud [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#6	8M0063255	STUD ProXS (1 required per assembly)
		168M0063255 - Stud [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#7	8568941	BUSHING (1 required per assembly)
		23-856894 1 - Bushing [ More info ] $54.49 Available to Order: Shipping delay up to 10 days.
#8	8M6005030	PULLEY ASSY (1 required per assembly) — Replaces: 852385A2
		8M6005030 - Pulley [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#9	4010835	SCREW (1 required per assembly)
		10-40108 35 - Screw [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#10	828507Q5	BELT (1 required per assembly)
		57-828507Q 5 - Belt [ More info ] $61.49 4 In Stock.
#11	859619T1	FLYWHEEL (1 required per assembly)
		283-859619T 1 - Flywheel [ More info ] $770.49 Available to Order: Shipping delay up to 10 days.
#12	42979	NUT (1 required per assembly)
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#13	33001	WASHER @2 (1 required per assembly) — Replaces: 68229
		12-33001 - Washer, Flywheel Nut [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#14	47533	WASHER (1 required per assembly)
		12-47533 - Washer [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#15	401386	NUT @5 (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#16	856583A5	CABLE ASSEMBLY TO BLOCK (1 required per assembly)
		84-856583A 5 - Cable Assembly [ More info ] $37.49 $35.92 2 In Stock.
#17	4002319	WASHER @3 (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#18	82130150	SCREW (2 required per assembly)
		10-821301 50 - Screw [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#19	45907	PLUG (1 required per assembly)
		19-45907 - Plug [ More info ] $7.09 2 In Stock.
