Parts for V-200 (2.5L) 1991 Only 2-Stroke Carbureted Mercury Outboard Motor Top Cowl & Front Shield

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-200 (2.5L) 1991 Only > 0C291520 - 0D081999 - USA > Top Cowl & Front Shield

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

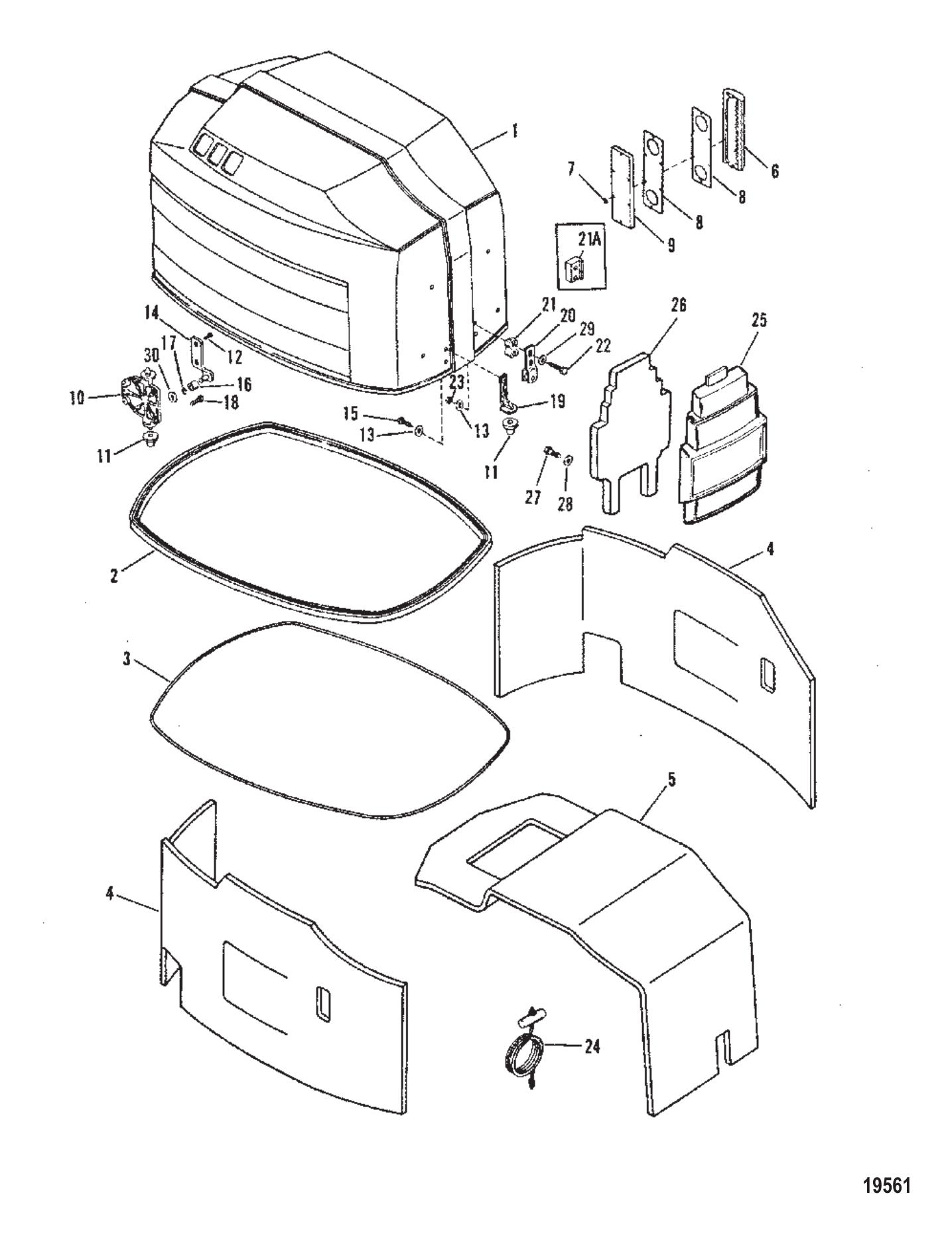

Top Cowl & Front Shield

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9742T88	TOP COWL ASSY BLK (BLACK) (135/150/175/200) (1 required per assembly) — Replaces: 9742A88
		2196-9742T88 - Top Cowl ASSY BL,NLA [ More info ] Unavailable
#1	9743T11	TOP COWL (GRAY (135/150/175/200) (1 required per assembly) — Replaces: 9742A89, 9743A11
		2196-9743T11 - Top Cowl,NLA [ More info ] Unavailable
#1	9742T90	TOP COWL ASY-BLK (BLACK) (XR4) (1 required per assembly) — Replaces: 9742A90
		2196-9742T90 - Top Cowl ASY-BLK,NLA [ More info ] Unavailable
#1	9742A91	TOP COWL ASSEMBLY (GRAY) (MAGNUM II) (1 required per assembly)
		2196-9742A91 - Top Cowl ASY-GRE,NLA [ More info ] Unavailable
#2	812784	SEAL (1 required per assembly)
		812784 - Seal, NLA [ More info ] Unavailable
#3	815478	SEAL (1 required per assembly)
		815478 - COWL SEAL,NLA [ More info ] Unavailable
#4	814823	SOUND BLANKET (SIDE) (USE WITHOUT DEFLECTOR) (2 required per assembly)
		814823 - Sound Blanket,NLA [ More info ] Unavailable
#5	814837	SOUND BLANKET (USE WITHOUT DEFLECTOR) (1 required per assembly)
		814837 - Sound Blanket,NLA [ More info ] Unavailable
#6	17196A1	SHIELD AIR INLET (XR4/MAGNUM II) (2 required per assembly)
		17196A 1 - Shield Assembly, NLA [ More info ] $43.10 3 In Stock.
#7	11316	SPEED NUT (XR4/MAGNUM II) (12 required per assembly)
		11-11316 - Nut - Speed, NLA [ More info ] $1.08 10+ In Stock.
#8	17238	SEAL AIR INLET (XR4/MAGNUM II) (4 required per assembly)
		17238 - Seal, NLA [ More info ] $9.38 $7.95 4 In Stock.
#9	17194	SHIELD AIR INLET (PORT) (XR4/MAGNUM II) (1 required per assembly)
		17194 - Shield, NLA [ More info ] $6.07 1 In Stock.
#9	17195	SHIELD AIR INLET (STBD) (XR4/MAGNUM II) (1 required per assembly)
		17195 - SHIELD,NLA [ More info ] $6.47 1 In Stock.
#10	184741	BRACKET REAR (2 required per assembly)
		18474 1 - Rear Bracket, NLA [ More info ] $14.00 $11.86 10 In Stock.
#11	18506001	GROMMET (3 required per assembly) — Replaces: 18506
		25-18506001 - Grommet [ More info ] Unavailable
#12	28636	SCREW @5 (4 required per assembly)
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#13	56720	WASHER (4 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#14	813096A2	REAR LATCH KIT (2 required per assembly) — Replaces: 813096
		813096A 2 - Rear Latch Kit [ More info ] $104.83 Available to Order: Shipping delay up to 10 days.
#15	73286	SCREW (2 required per assembly)
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#16	8M0207770	ROLLER @3 (2 required per assembly) — Replaces: 813074, 815263
		8M0207770 - ROLLER [ More info ] $9.29 6 In Stock.
#17	13194	RING-RETAIN @2 (2 required per assembly)
		53-13194 - Ring - Retaining - Priced Individually [ More info ] $1.27 10+ In Stock.
#18	816992	SCREW (8 required per assembly)
		10-816992 - SCREW,NLA [ More info ] Unavailable
#19	187021	LOCATOR (1 required per assembly)
		18702 1 - Locator, NLA [ More info ] Unavailable
#20	893763	BRACKET (1 required per assembly) — Replaces: 18173
		893763 - Roller Latch Bracket [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#21	813076A2	HANDLE KIT (1 required per assembly) — Replaces: 813552
		813076A 2 - Handle Kit, NLA [ More info ] $54.99 2 In Stock.
#22	31984	SCREW @5 (2 required per assembly)
		10-31984 - Screw - Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#22	69267	SCREW (2 required per assembly)
		10-69267 - Screw [ More info ] $1.90 $0.38 10+ In Stock.
#23	815848	NUT (2 required per assembly)
		11-815848 - Nut, (.312) [ More info ] $6.79 $1.36 4 In Stock.
#24	47341A11	ROPE AND HANDLE KIT MANUAL STARTING (FOR MANUAL STARTING) (1 required per assembly) — Replaces: 47341A1
		47341A11 - Manual Start Rope And Handle [ More info ] $18.60 1 In Stock.
#25	18755A1	FRONT SHIELD ASSEMBLY (BLACK) (1 required per assembly)
		18755A 1 - Shield, Front, Black, NLA [ More info ] $100.22 $84.88 10+ In Stock.
#25	18755A2	FRONT SHIELD ASSEMBLY (GRAY) (1 required per assembly)
		18755A 2 - SHIELD-FRONT-GRAY [ More info ] Unavailable
#26	813562	SEAL (OLD DESIGN) (1 required per assembly)
		813562 - Seal - Front Shield, NLA [ More info ] $7.00 $5.93 8 In Stock.
#27	77137	SCREW (.190-16 X .620) (4 required per assembly)
		10-77137 - Screw [ More info ] $5.69 10+ In Stock.
#28	8M0204666	WASHER @5 (4 required per assembly) — Replaces: 56681
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#29	8M0042642	WASHER @5 (2 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#30	36001	WASHER @3 (2 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#21A	816838	SPACER (1 required per assembly)
		816838 - Spacer [ More info ] Unavailable
#4/5	814823A1	SOUND BLANKT KIT (USE W/ DEFLECTOR) (1 required per assembly)
		814823A 1 - Blanket Kit - Sound, NLA [ More info ] Unavailable
