Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Driveshaft Housing & Exhaust Tube

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 (DFI) > 0T599000 - 0T800999 - USA > Driveshaft Housing & Exhaust Tube

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

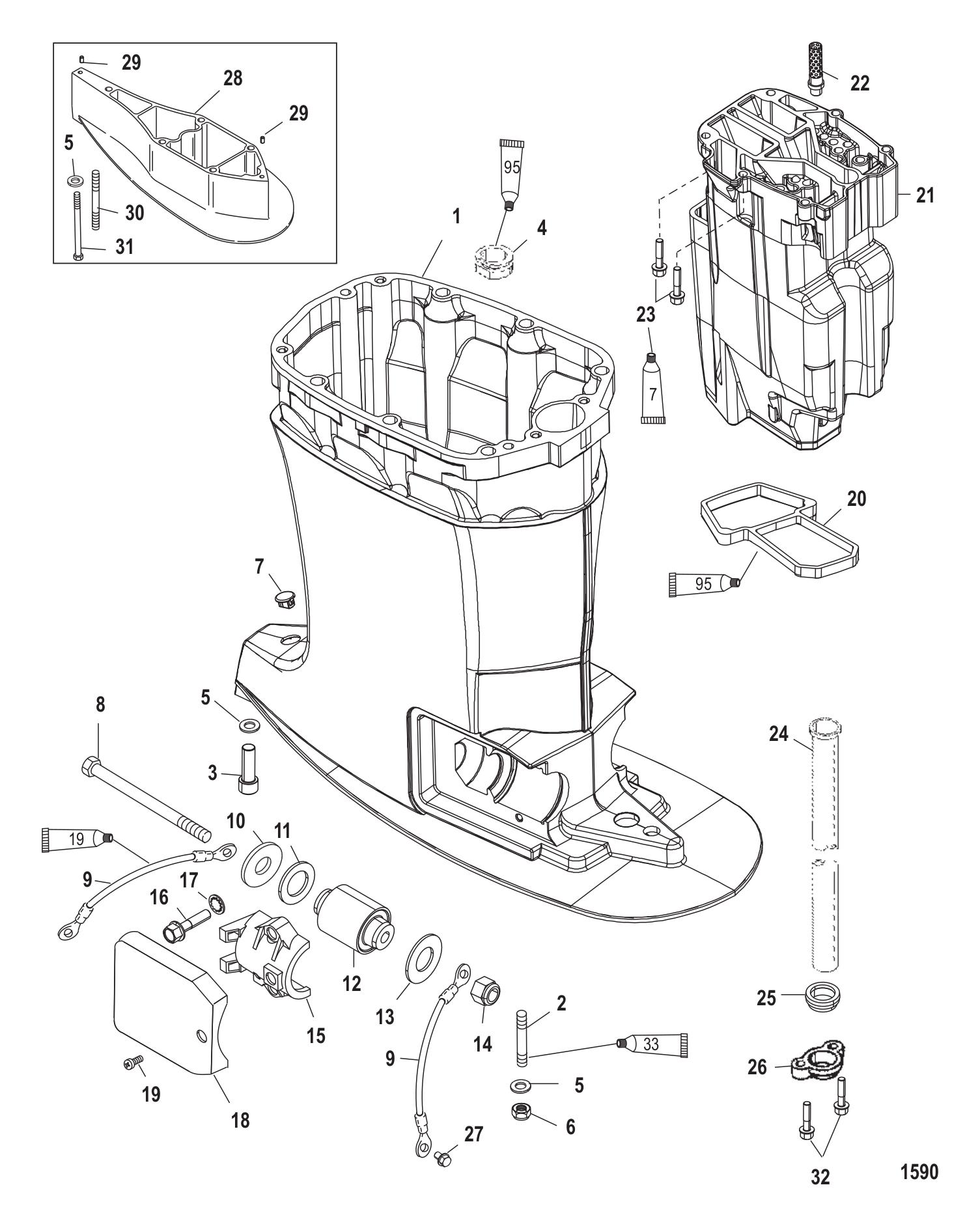

Driveshaft Housing & Exhaust Tube

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	832937A06	HOUSING-DRIVESHAF (LONG) (1 required per assembly) — Replaces: 832937A3, 832937A05
		3518-832937A06 - Drive Shaft Housing [ More info ] Unavailable
#1	832938A06	HOUSING-DRIVESHAF (X/XX-LONG) (1 required per assembly) — Replaces: 832938A5
		3519-832938A06 - Drive Shaft Housing [ More info ] Unavailable
#2	8M0008031	STUD (M12 X 1.75 X 52) (LONG/X-LONG) (4 required per assembly) — Replaces: 856983
		16-8M0008031 - Stud [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#3	857136	SCREW (M12 X 35 MM) (LONG/X-LONG) (1 required per assembly)
		10-857136 - Screw [ More info ] $7.39 $5.92 1 In Stock.
#4	8331231	GROMMET (1 required per assembly)
		25-833123 1 - Grommet [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#5	856982	WASHER @4 (5 required per assembly)
		12-856982 - Washer, (.500 X .810 X .090) Stainless Steel [ More info ] $1.80 2 In Stock.
#6	896895	NUT @4 (4 required per assembly) — Replaces: 857008
		11-896895 - Nut, (M12) [ More info ] $2.99 2 In Stock.
#7	64649	PLUG @2 (1 required per assembly)
		19-64649 - Plug - Priced Individually [ More info ] $5.29 5 In Stock.
#8	898834	BOLT (2 required per assembly) — Replaces: 815431, 815431002
		10-898834 - Bolt [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#9	88238A10	CABLE ASSY (2 required per assembly)
		88238A10 - Cable Assembly [ More info ] $8.29 2 In Stock.
#10	815432	WASHER (2 required per assembly)
		12-815432 - Washer, (.562 X 2.00 X .125) [ More info ] $11.19 $8.96 2 In Stock.
#11	8154331	WASHER (2 required per assembly)
		12-815433 1 - Washer [ More info ] $6.39 Available to Order: Shipping delay up to 10 days.
#12	8137711	MOUNT (2 required per assembly)
		813771 1 - Mount [ More info ] $191.99 Available to Order: Shipping delay up to 10 days.
#13	825190	WASHER @5 (2 required per assembly)
		12-825190 - Washer [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#14	896602	NUT (2 required per assembly) — Replaces: 815434
		11-896602 - Nut, (M14) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#15	879150A90	COVER KIT (2 required per assembly) — Replaces: 8186442
		879150A90 - Cover Kit [ More info ] $68.49 1 In Stock.
#16	81893435	SCREW (4 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#17	72521	LOCKWASHER (1 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#18	879150A90	COVER KIT (2 required per assembly) — Replaces: 818645F1, 8M0001136
#19	69079	SCREW (2 required per assembly)
		10-69079 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#20	8329321	SEAL (1 required per assembly)
		832932 1 - Seal [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#21	833116A4	TUBE ASSY-EXHAUST (1 required per assembly)
		833116A 4 - Exhaust Tube Assembly [ More info ] $971.49 Available to Order: Shipping delay up to 10 days.
#22	NSS	NOT SOLD SEPARATE STRAINER (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#23	81893435	SCREW (6 required per assembly)
#24	8M0042785	TUBE-WATER (LONG) (1 required per assembly) — Replaces: 8329417
		32-8M0042785 - Water Tube [ More info ] $47.49 Available to Order: Shipping delay up to 10 days.
#24	8M0042786	TUBE-WATER (X-LONG) (1 required per assembly) — Replaces: 8329418
		32-8M0042786 - Water Tube [ More info ] $84.49 Available to Order: Shipping delay up to 10 days.
#24	8M0042787	TUBE-WATER (XX-LONG) (1 required per assembly) — Replaces: 8329419
		32-8M0042787 - Water Tube [ More info ] $131.99 Available to Order: Shipping delay up to 10 days.
#25	832940001	SEAL (1 required per assembly) — Replaces: 832940
		832940001 - Seal [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#26	8329391	CLAMP (1 required per assembly)
		832939 1 - Clamp [ More info ] $12.19 Available to Order: Shipping delay up to 10 days.
#27	41508	SCREW (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#28	8M0071622	SPACER-DSH X-LONG (XX-LONG) (1 required per assembly) — Replaces: 823979T1, 880647T04
		8M0071622 - Spacer-DSH X-LONG [ More info ] Unavailable
		8M0105088 - Spacer-DSH XL [ More info ] $434.49 Available to Order: Shipping delay up to 10 days.
		823979T 5 - Ord 823979T 1, NLA [ More info ] $427.20 1 In Stock.
#29	43044	PIN-DOWEL-SOLID (XX-LONG) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#30	8M0008047	STUD (XX-LONG) (4 required per assembly) — Replaces: 857009
		16-8M0008047 - Stud [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#31	857137	SCREW (XX-LONG) (1 required per assembly)
		10-857137 - Screw [ More info ] $18.39 Available to Order: Shipping delay up to 10 days.
#32	81893435	SCREW (2 required per assembly)
