Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Cylinder Block & End Cap

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 (DFI) > 0T599000 - 0T800999 - USA > Cylinder Block & End Cap

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Cylinder Block & End Cap

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	832934A00	GASKET SET (1 required per assembly)
		27-832934A00 - Powerhead Gasket Set [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#-	854198A07	PH 200DFI 3L (200) (1 required per assembly) — Replaces: 854198A03, 854198A04
		854198A07 - Powerhead 200DFI 3L [ More info ] Unavailable
#-	877869A07	PH 225DFI 3L (225) (1 required per assembly) — Replaces: 877869A03, 877869A04
		877869A07 - Powerhead 225DFI 3L [ More info ] Unavailable
#1	899162A05	CYLINDER BLOCK (200) (1 required per assembly) — Replaces: 9811T86, 9811T91
		885-899162A05 - Cylinder Block [ More info ] Unavailable
#1	899162A06	CYLINDER BLOCK (225) (1 required per assembly) — Replaces: 9811T87, 9811T92
		885-899162A06 - Cylinder Block [ More info ] Unavailable
#2	81893440	SCREW (M8 X 40) (4 required per assembly)
		10-818934 40 - Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#3	8M0111325	COVER (2 required per assembly) — Replaces: 8569662, 8M0041759
		8M0111325 - Cover [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#4	903509	STUD (M10 X 1.5 X 64) (4 required per assembly)
		16-90350 9 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#5	8154431	STUD (M10 X 1.5 X 155) (6 required per assembly)
		16-815443 1 - Stud [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#6	8248577	DEFLECTOR (6 required per assembly)
		824857 7 - Water Deflector [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#7	8781051	CHECK VALVE (1 required per assembly)
		21-878105 1 - Check Valve [ More info ] $45.99 3 In Stock.
#8	8M0036405	PIN (3 required per assembly) — Replaces: 67296
		17-8M0036405 - Pin - Center Main [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
#9	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#10	850309001	PLUG STOP (6 required per assembly) — Replaces: 850309
		19-850309001 - Plug - Stop [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#11	81893435	SCREW (M8 X 35) (14 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#12	82446180	SCREW (M10 X 80) (8 required per assembly)
		10-824461 80 - Screw [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#13	8245021	CONNECTOR (1 required per assembly)
		22-824502 1 - Connector [ More info ] $8.59 Available to Order: Shipping delay up to 10 days.
#14	8405101	PIN (1 required per assembly)
		17-840510 1 - Pin [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#15	856774	WASHER @5 (10 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#16	4013610	NUT @3 (10 required per assembly)
		11-40136 10 - Nut, (M10) Stainless Steel [ More info ] $7.79 $6.24 10+ In Stock.
#17	8M0082988	SENSOR ASSY (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#18	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#19	9787A4	END CAP ASSY (1 required per assembly)
		1171-9787A 4 - End Cap Assembly [ More info ] $100.49 Available to Order: Shipping delay up to 10 days.
#20	62700	O-RING (3.237 X .103) (1 required per assembly)
		25-62700 - O-Ring [ More info ] $3.99 1 In Stock.
		18-0860-9 - O-Ring 25-62700 2-Pack [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#21	8308981	SEAL (2 required per assembly)
		26-830898 1 - Seal [ More info ] $27.39 Available to Order: Shipping delay up to 10 days.
#22	82130020	SCREW @5 (4 required per assembly)
		10-821300 20 - Screw - Priced Individually [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#23	82130012	SCREW @5 (2 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 5 In Stock.
#24	858902	CLAMP (1 required per assembly)
		54-858902 - Clamp [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#25	8M0024808	J CLIP (3 required per assembly) — Replaces: 65292
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#26	82130012	SCREW @5 (2 required per assembly)
#27	818574	SEAL (2 required per assembly)
		818574 - Cylinder Head Seal [ More info ] $27.69 In Stock
#28	884391	SEAL (6 required per assembly)
		884391 - Cylinder Bore Seal [ More info ] $21.19 $20.49 Available to Order: Shipping delay up to 10 days.
#29	858485T07	HEAD ASY-CYL-STBD (STARBOARD) (1 required per assembly) — Replaces: 858485T6
		900-858485T07 - Cylinder Head Assembly - Stbd [ More info ] $564.99 Available to Order: Shipping delay up to 10 days.
#29	858483T07	HEAD ASY-CYL-PORT (PORT) (1 required per assembly) — Replaces: 858483T6
		900-858483T07 - Cylinder Head Assembly - Port [ More info ] $564.99 Available to Order: Shipping delay up to 10 days.
#30	885599004	THERMOSTAT 130 (2 required per assembly) — Replaces: 8855991, 885599003
		885599004 - Thermostat, 130 Degrees [ More info ] Unavailable
		8M0057307 - Thermostat 130 [ More info ] $134.99 $129.49 In Stock
		18-3535 - Thermostat, 130 Degrees, 885599004 [ More info ] $116.99 $108.43 7 In Stock.
		75-75012 � 130 Degree Thermostat, 8M0057307 [ More info ] $74.99 $65.51 2 In Stock.
#31	8503181	GASKET @6 (2 required per assembly)
		27-850318 1 - Gasket [ More info ] $4.99 4 In Stock.
#32	887601002	COVER (PORT) (1 required per assembly) — Replaces: 887601
		887601002 - Port Cover [ More info ] $31.32 10+ In Stock.
#32	887602002	COVER (STARBOARD) (1 required per assembly) — Replaces: 887602
		887602002 -Starboard Cover [ More info ] $29.79 10+ In Stock.
#33	82130025	SCREW @5 (4 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#34	8M0045380	SCREW @5 (40 required per assembly) — Replaces: 859096, 891570050
		10-8M0045380 - Screw - Priced Individually [ More info ] $6.89 1 In Stock.
#35	889575	SENSOR ASSY-TEMP (2 required per assembly) — Replaces: 858535
		889575 - Temperature Sensor Assembly [ More info ] Unavailable
		8M0214984 - Exhaust Temperature Sensor [ More info ] $62.49 1 In Stock.
#36	627021	O-RING (.301 X .070) (2 required per assembly)
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#37	328022	PLUG-(BRASS)@2 (2 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#38	857186T02	PLATE ASSY-ALT (1 required per assembly) — Replaces: 857186A1
		857186T02 - Plate Assembly -alt [ More info ] $204.49 Available to Order: Shipping delay up to 10 days.
#39	855729	MOUNT (3 required per assembly)
		23-855729 - Mount [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#40	82130145	SCREW (3 required per assembly)
		10-821301 45 - Screw [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#41	19565002	GROMMET (1 required per assembly) — Replaces: 19565
		25-19565002 - Grommet [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#42	855725	WASHER (6 required per assembly)
		12-855725 - Washer [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.

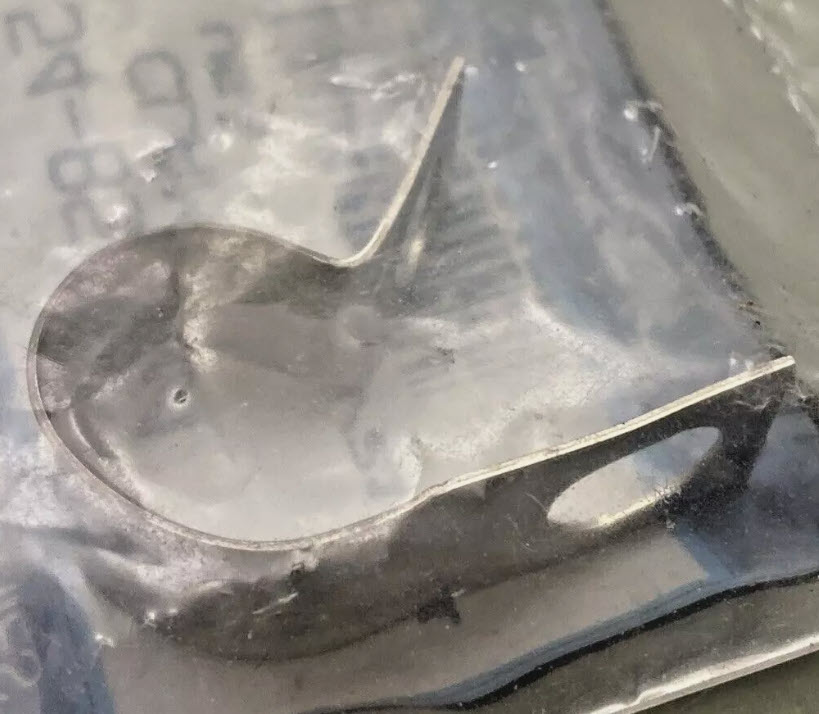

#43	858424	CLAMP (1 required per assembly)
		54-858424 - Clamp [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#44	858951	J CLIP (1 required per assembly)
		54-858951 - J Clip [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#45	82130012	SCREW @5 (1 required per assembly)
#46	8589521	BRACKET-STARTER (1 required per assembly)
		858952 1 - Starter Bracket [ More info ] Unavailable
#47	859376	CLIP (1 required per assembly)
		54-859376 - Clip [ More info ] $3.99 $0.80 10 In Stock.
#48	8266241	CLAMP (1 required per assembly)
		826624 1 - Clamp [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#49	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#50	82130016	SCREW @5 (1 required per assembly)
		10-821300 16 - Screw - Priced Individually [ More info ] $5.89 2 In Stock.
