Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Port Center Main Oiling System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 (DFI) > 0T178500 - 0T598999 - USA > Port Center Main Oiling System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

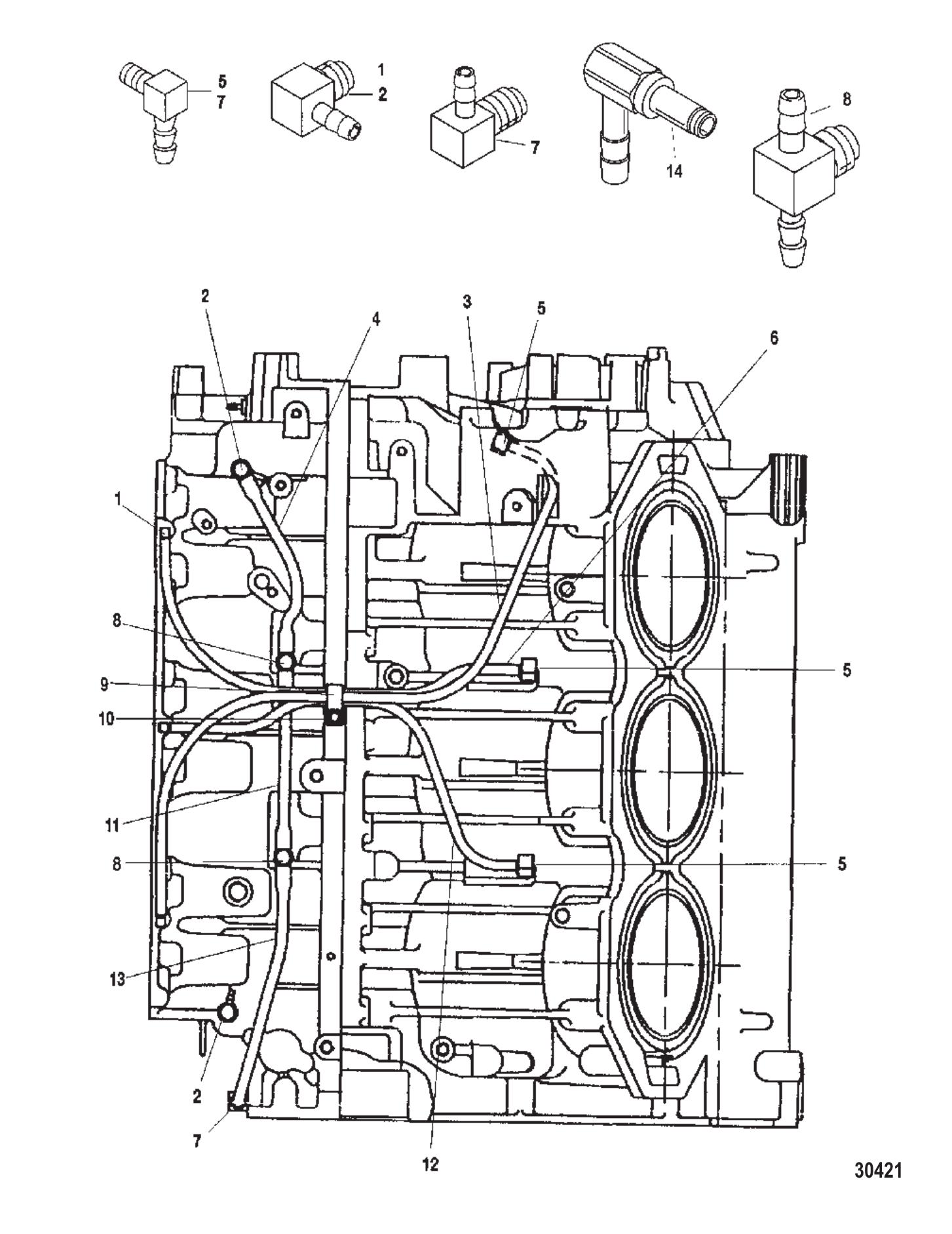

Port Center Main Oiling System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	877869A01	PH 225 DFI 3.0L (225) (1 required per assembly)
		877869A01 - PH 225 DFI 3.0L [ More info ] Unavailable
#-	854198R01	PH 200 DFI -RM (200) (1 required per assembly) — Replaces: 854198A01
		854198R01 - Powerhead 200 Dfi -rm [ More info ] Unavailable
#1	887801	ELBOW [0T409000] & Up (3 required per assembly)
		22-88780 1 - Elbow [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#2	887801	ELBOW (2 required per assembly)
#3	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 20-1/2 IN. (1 required per assembly) — Replaces: 85606064, 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#4	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 5 IN. (1 required per assembly) — Replaces: 85606064, 85606065
#5	8592352	CHECK VALVE (3 required per assembly)
		21-859235 2 - Check Valve [ More info ] $32.19 Available to Order: Shipping delay up to 10 days.
#6	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 13 IN. (1 required per assembly) — Replaces: 85606064, 85606065
#7	8282182	CHECK VALVE (1 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#8	8582362	CHECK VALVE (2 required per assembly)
		21-858236 2 - Check Valve [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#9	23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#10	48408	SCREW @5 (1 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#11	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 4-3/4 IN. (1 required per assembly) — Replaces: 85606064, 85606065
#12	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 11 IN. (1 required per assembly) — Replaces: 85606064, 85606065
#13	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 9 IN. (1 required per assembly) — Replaces: 85606064, 85606065
#14	151333	FITTING [0T408999] & Below (3 required per assembly)
		22-15133 3 - Fitting [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
