Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Air Handler
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0111168 | COVER ASY-FLYWHL (1 required per assembly) — Replaces: 850296T4 |
  |
|
8M0111168 - Cover [ More info ]
|
| #2 | 86361 | GROMMET (1 required per assembly) |
  |
|
25-86361 - Grommet, Battery Cable [ More info ] Unavailable |
| #3 | 13467 | GROMMET (.88 INSIDE DIAMETER) (1 required per assembly) |
  |
|
25-13467 - Grommet, (.88 Inside Diameter) [ More info ]
|
| #4 | 8M0153609 | GROMMET (2 required per assembly) — Replaces: 821555, 821555001 |
  |
|
25-8M0153609 - Grommet - Priced Individually [ More info ]
|
| #5 | 853333T | FILTER (1 required per assembly) |
  |
|
35-853333T - Air Filter [ More info ]
|
  |
|
18-7997 - Air Filter [ More info ]
|

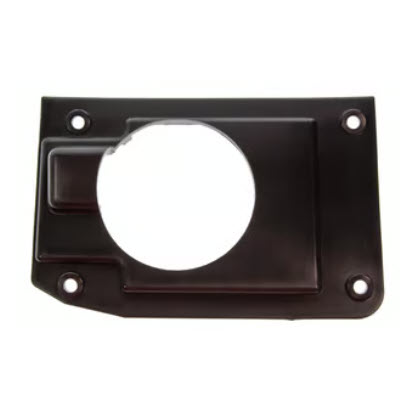

| #6 | 8544932 | COVER (1 required per assembly) |
  |
|
854493 2 - Cover [ More info ]
|
| #7 | 40056106 | SCREW (M5 X 13) (4 required per assembly) |
  |
|
10-40056106 - Screw [ More info ]
|
| #8 | 878112T1 | AIR HANDLER ASSY (1 required per assembly) |
  |
|
878112T 1 - Air Handler Assembly A [ More info ] Unavailable |
| #9 | 881865 | DECAL CAUTION-START IN GEAR (1 required per assembly) |
  |
|
37-881865 - Decal -Caution [ More info ]
|
| #10 | 855756A1 | BRACKET KIT (1 required per assembly) |
  |
|
855756A 1 - Bracket Kit, NLA [ More info ]
|
| #11 | 1993716 | SCREW (M6 X 16) (4 required per assembly) |
  |
|
10-19937 16 - Screw [ More info ]
|
| #12 | 8M0047624 | PUMP ASSEMBLY (1 required per assembly) — Replaces: 8558432 |
  |
8M0047624 - Fuel Pump Assembly [ More info ] Unavailable |
|
  |
|
8M0240950 - Fuel Pump [ More info ]
|
| #13 | 856928 | GROMMET (1 required per assembly) |
  |
|
25-856928 - Grommet,NLA [ More info ]
|
| #14 | 855802A1 | ELBOW (1 required per assembly) — Replaces: 855802 |
  |
|
22-855802A 1 - Fitting Kit [ More info ]
|
| #15 | 13791 | CLAMP (15.7) (4 required per assembly) |
  |
54-13791 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0214911 - CLAMP @5 [ More info ] Unavailable |
| #16 | 856825 | HOSE (1 required per assembly) |
  |
|
32-856825 - Hose [ More info ] Unavailable |
| #17 | 85686953 | SLEEVE (27.00 INCHES BULK) (1 required per assembly) |
  |
|
23-856869 53 - Sleeve-27 INCH [ More info ] Unavailable |
| #18 | 880862A1 | FITTING KIT (1 required per assembly) — Replaces: 856812 |
  |
|
22-880862A 1 - Fitting Kit [ More info ]
|
| #19 | 805062 | O-RING (.530 X .082) (1 required per assembly) |
  |
|
25-805062 - O-ring, (.530 X .082) [ More info ]
|
| #20 | 856778 | HOSE (1 required per assembly) |
  |
|
32-856778 - Molded Hose, NLA [ More info ]
|
| #21 | 804658A02 | REF SOB 09-18 (2002)(SEE NOTE 1) (1 required per assembly) |
  |
|
37-804658A02 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #21 | 804658A01 | REF SOB 09-18 (2001)(SEE NOTE 1) (1 required per assembly) |
  |
|
37-804658A01 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #22 | 82130045 | SCREW (1 required per assembly) |
  |
|
10-821300 45 - Screw [ More info ]
|
| #23 | 854343T7 | ATTENUATOR ASSY (1 required per assembly) |
  |
|
854343T 7 - Attenuator Assembly [ More info ]
|
| #24 | 23567 | CLIP (1 required per assembly) |
  |
|
|
| #25 | 69570 | SCREW (#10-16 X .750) (1 required per assembly) |
  |
|
10-69570 - Screw [ More info ]
|
| #26 | 88807A27 | CABLE ASSY (1 required per assembly) |
  |
|
84-88807A27 - Cable Assembly, NLA [ More info ] Unavailable |
| #27 | 16955 | SCREW (1 required per assembly) |
  |
|
10-16955 - Screw [ More info ]
|
| #28 | 61990 | TIE STRAP @10 (1 required per assembly) |
  |
|
61990 - Tie Strap - Priced Individually [ More info ]
|
