Parts for V-200 (2.5L) 1991 Only 2-Stroke Carbureted Mercury Outboard Motor Key Switch Assembly

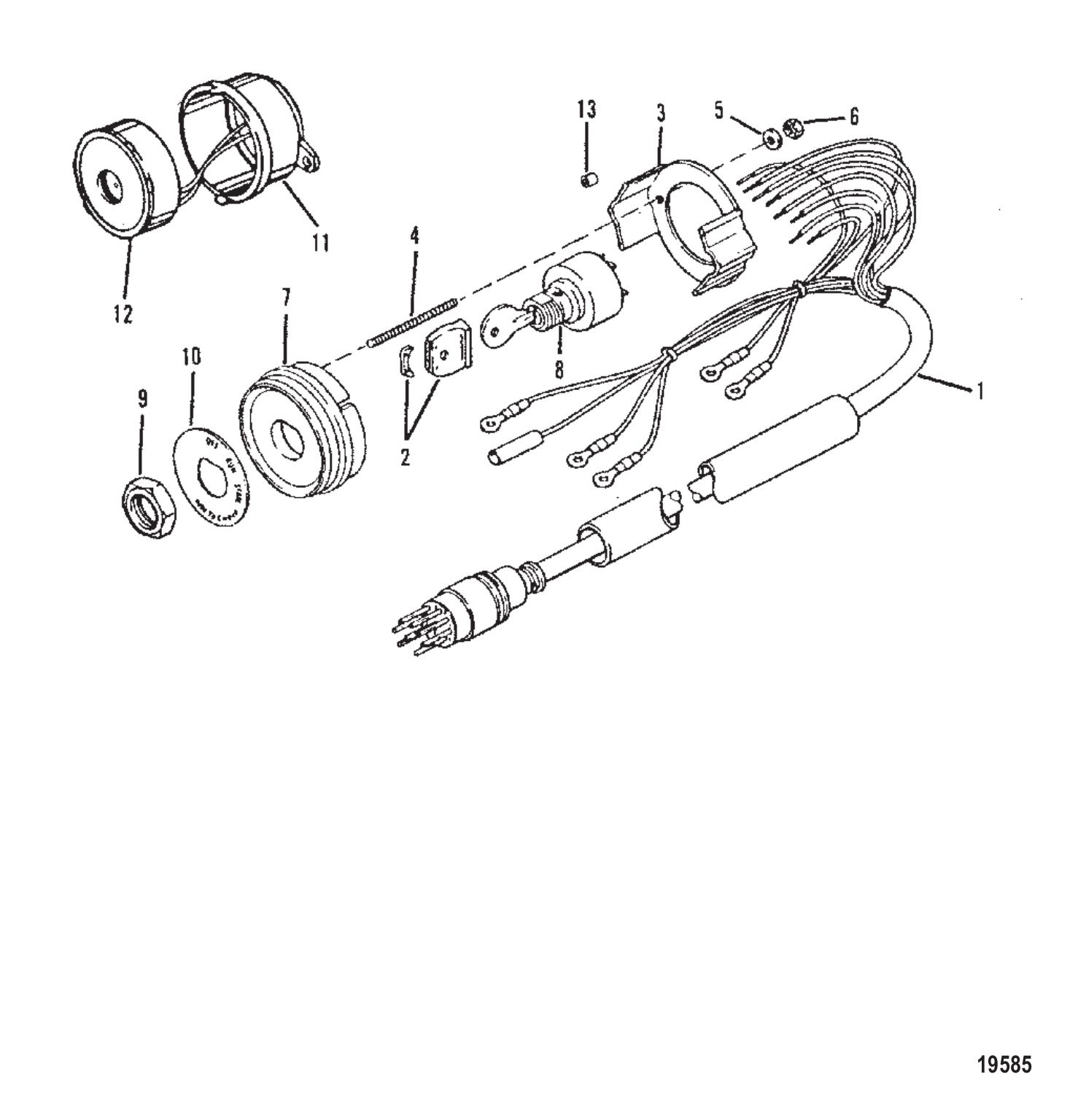

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 816626A20 | HARNESS ASSEMBLY KEY SWITCH (20.00 FEET) (20") (1 required per assembly) — Replaces: 17925A20 |
  |
|
84-816626A20 - Harness Assembly [ More info ]
|
| #2 | 90468A1 | COVER ASSEMBLY KEY (2 required per assembly) |
  |
|
90468A 1 - Cover Assembly [ More info ]
|
  |
|
90468 - Cover, NLA [ More info ]
|
| #3 | 76424 | BRACKET (1 required per assembly) |
  |
|
|
| #4 | 55422 | STUD (#10-32 X 2.00) (2 required per assembly) |
  |
|
16-55422 - Stud - Priced Individually [ More info ]
|
| #5 | 24676 | WASHER (.200 X .440 X .032) (2 required per assembly) |
  |
|
12-24676 - Washer, (.200 X .440 X .032) [ More info ]
|
| #6 | 68219 | NUT (#10-32) STAINLESS STEEL (2 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #7 | 816479A3 | PLATE KIT (1 required per assembly) — Replaces: 816479 |
  |
|
816479A 3 - Mount Plate Kit [ More info ]
|
| #8 | 88107A5 | SWITCH KIT KEY (SEE CHART FOR KEY) (1 required per assembly) — Replaces: 88107 |
  |
|
87-88107A 5 - Ignition Switch Kit [ More info ]
|
  |
|
MP52000 - Ignition Switch, 87-88107A5 [ More info ]
|
  |
|
MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ]
|
| #9 | 879755 | NUT SPECIAL - BLACK NYLON (1 required per assembly) — Replaces: 93543 |
  |
|
11-879755 - Nut, (black Nylon) [ More info ]
|
| #10 | 90311 | INSERT SWITCH PLATE (OFF-RUN-START)(PUSH TO CHOKE) (1 required per assembly) |
  |
|
38-90311 - Insert- Switch [ More info ]
|
| #11 | 68878A6 | HORN ASSEMBLY BUZZER ALARM (1 required per assembly) |
  |
|
68878A 6 - Horn Assembly [ More info ]
|
| #12 | 68879 | COVER (1 required per assembly) |
  |
|
68879 - Cover [ More info ] Unavailable |
| #13 | 8127111 | SPACER (.375) (2 required per assembly) |
  |
|
23-812711 1 - Spacer - (.375) [ More info ]
|
| #13 | 812711 | SPACER (.250) (2 required per assembly) |
  |
|
23-812711 - Spacer - .25 [ More info ]
|
| #NS | 894911 | KEY 1A @2 ( required per assembly) |
  |
|
89491 1 - Key 1A - Priced Individually [ More info ]
|
| #NS | 894917 | KEY 2A @2 ( required per assembly) |
  |
|
89491 7 - Key 2A - Priced Individually [ More info ]
|
| #NS | 894912 | KEY 1B @2 ( required per assembly) |
  |
|
89491 2 - Key 1B - Priced Individually [ More info ]
|
| #NS | 894918 | KEY 2B @2 ( required per assembly) |
  |
|
89491 8 - Key 2B - Priced Individually [ More info ]
|
| #NS | 894913 | KEY 1C @2 ( required per assembly) |
  |
|
89491 3 - Key 1C - Priced Individually [ More info ]
|
| #NS | 894919 | KEY 2C @2 ( required per assembly) |
  |
|
89491 9 - Key 2C - Priced Individually [ More info ]
|
| #NS | 894914 | KEY 1D @2 ( required per assembly) |
  |
|
89491 4 - Key 1D - Priced Individually [ More info ]
|
| #NS | 8949110 | KEY 2D @2 ( required per assembly) |
  |
|
89491 10 - Key 2D - Priced Individually [ More info ]
|
| #NS | 894915 | KEY 1E @2 ( required per assembly) |
  |
|
89491 5 - Key 1E - Priced Individually [ More info ]
|
| #NS | 8949111 | KEY 2E @2 ( required per assembly) |
  |
|
89491 11 - Key 2E - Priced Individually [ More info ]
|
| #NS | 894916 | KEY 1F @2 ( required per assembly) |
  |
|
89491 6 - Key 1F - Priced Individually [ More info ]
|
| #NS | 8949112 | KEY 2F @2 ( required per assembly) |
  |
|
89491 12 - Key 2F - Priced Individually [ More info ]
|
