Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Pump

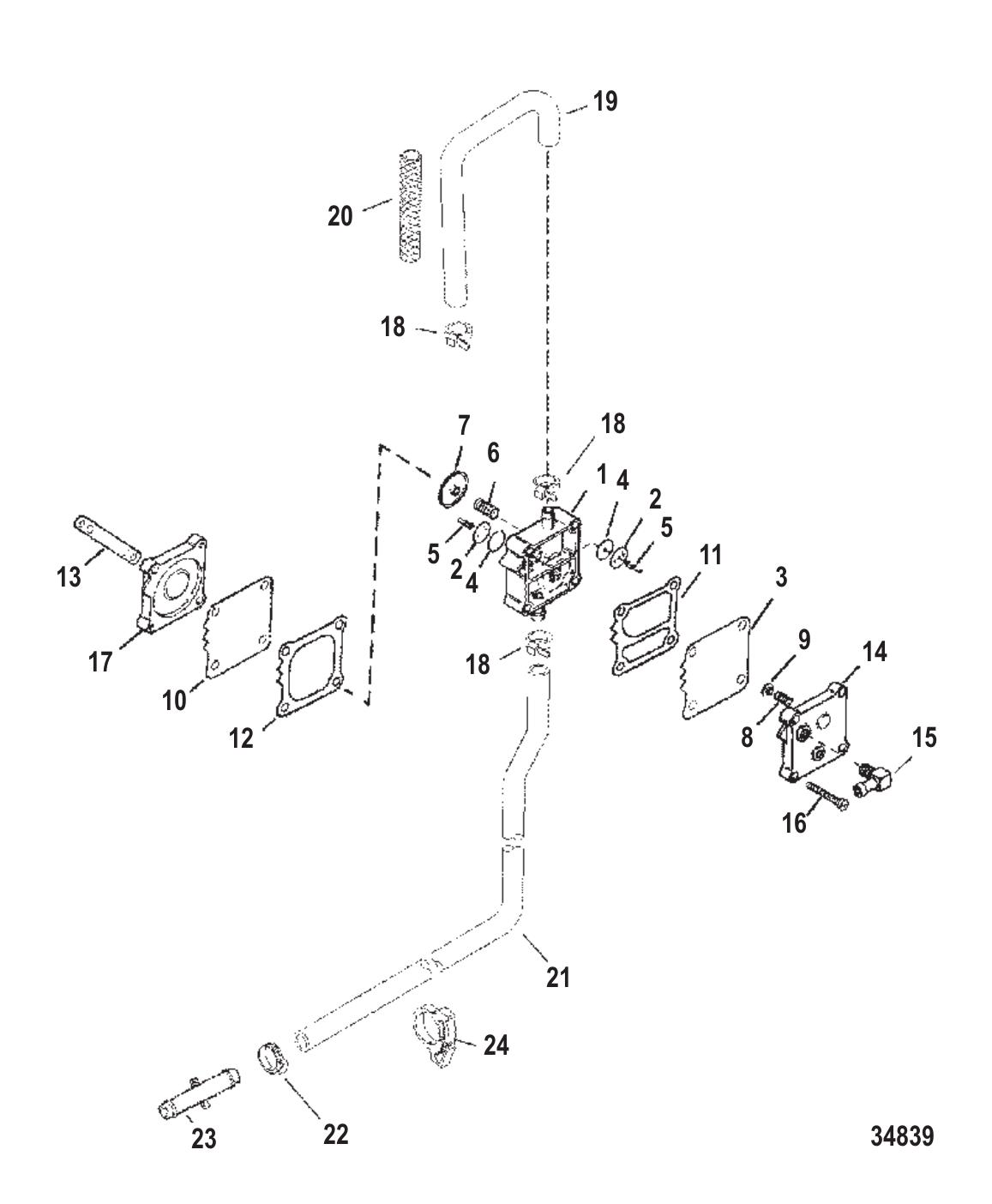

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 14360A78 | PUMP KIT-FUEL (1 required per assembly) — Replaces: 14360A71 |
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| #- | 854198R99 | PH 200 DFI -RM (200) (1 required per assembly) — Replaces: 854198A99 |
  |
|
854198R99 - Powerhead 200 Dfi -rm [ More info ] Unavailable |
| #- | 854199A99 | PH 200/225 DFI (225) (1 required per assembly) |
  |
|
854199A99 - Powerhead 200/225 Dfi [ More info ] Unavailable |
| #- | 8M0133170 | GASKET SET (1 required per assembly) — Replaces: 832934A98 |
  |
|
278M0133170 - Gasket Set [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE FUEL PUMP (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 857005A1 | DIAPHRAGM KIT (2 required per assembly) |
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly) |
| #4 | NSS | NOT SOLD SEPARATE CHECK VALVE (2 required per assembly) |
| #5 | NSS | NOT SOLD SEPARATE RETAINER (2 required per assembly) |
| #6 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #7 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #10 | NSS | NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly) |
| #11 | NSS | NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly) |
| #12 | NSS | NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly) |
| #13 | 8M0204705 | GASKET @2 (1 required per assembly) — Replaces: 987691 |
  |
|
27-8M0204705 - Gasket Note: Priced Individually [ More info ]
|
| #14 | 987752 | PLATE (1 required per assembly) |
  |
|
0987752 [ More info ] Unavailable Replaced by 3854336 |
  |
|
3854336 - TUBE ASSEMBLY [ More info ] Unavailable |
| #15 | 856827 | FITTING TO BLOCK (1 required per assembly) |
  |
|
22-856827 - Elbow [ More info ] Unavailable |
| #16 | 82104540 | SCREW (M5 X 40) (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|
| #16 | 82130050 | SCREW (M6 X 50) (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #17 | 144303 | BASE (1 required per assembly) |
  |
|
|
| #18 | 816311T | TIE STRAP @100 (3 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #19 | 856818 | HOSE TO VAPOR SEPARATOR FUEL INLET FITTING (1 required per assembly) |
  |
|
32-856818 - Hose, NLA [ More info ] Unavailable |
| #20 | 85686953 | SLEEVE (27.00 INCHES BULK) (10-1/2 IN.) (1 required per assembly) |
  |
|
23-856869 53 - Sleeve-27 INCH [ More info ] Unavailable |
| #21 | 8568172 | HOSE (1 required per assembly) — Replaces: 856817, 8568171 |
  |
32-856817 2 - Hose [ More info ] Unavailable |
|
  |
|
328M0064778 - Hose [ More info ]
|
| #22 | 856880 | CLAMP @5 (1 required per assembly) |
  |
|
54-856880 - Clamp [ More info ]
|
  |
|
54-8M0214964 - CLAMP @5 [ More info ] Unavailable |
| #23 | 822769 | CONNECTOR (1 required per assembly) |
  |
|
22-822769 - Connector [ More info ]
|
| #24 | 8589016 | CLAMP (1 required per assembly) |
  |
|
54-858901 6 - CLAMP,NLA [ More info ] Unavailable |
