Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Gear Housing (Driveshaft) (Standard Rotation)

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 (DFI) > 0G590000 - 0G760299 - USA > Gear Housing (Driveshaft) (Standard Rotation)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

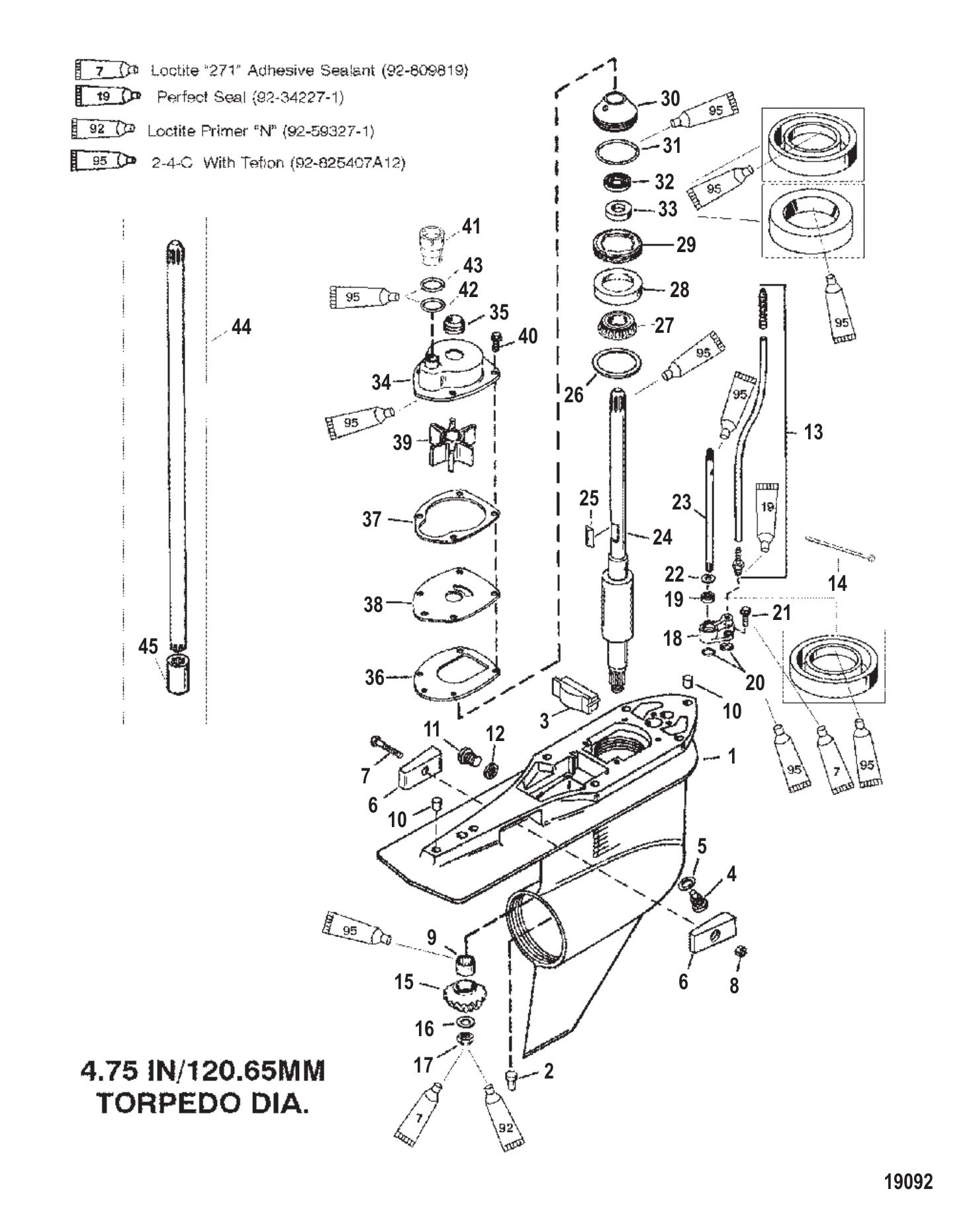

Gear Housing (Driveshaft) (Standard Rotation)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	816575A4	SEAL KIT (1 required per assembly)
		26-816575A 4 - Seal Kit [ More info ] $48.49 In Stock
		26-00835 - Lower Unit Seal Kit, 26-816575A 4 [ More info ] $35.84 2 In Stock.
#-	817275A5	REBUILD KIT-W/P (1 required per assembly)
		817275A 5 - Water Pump Rebuild Kit [ More info ] $161.99 $155.99 In Stock
		46-46502 - Mercury Mercruiser Water Pump Kit with Housing and Seal Carrier, 817275A4 [ More info ] $125.99 $109.58 10+ In Stock.
#1	822442T77	REF POB 99-02 (BLACK-BASIC) (1 required per assembly) — Replaces: 822442A83, 822442T83
		1623-822442T77 - REF OB PB 99-0,NLA [ More info ] Unavailable
		90-216-AS - SE216 Lower Unit Mercury 3.0L, 1.75 to 1, Stub Shaft, Standard Rotation [ More info ] $1195.00 $1195.00 Available to Order
#1	822442T84	GEAR HOUSING-GR (GRAY-BASIC) (1 required per assembly) — Replaces: 822442A84
		1623-822442T84 - Gear Housing-GR,NLA [ More info ] Unavailable
#2	379721	PIN (1 required per assembly)
		17-37972 1 - Pin [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#3	821526001	FILLER BLOCK (1 required per assembly) — Replaces: 821526
		821526001 - Filler Block [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#4	67892A06	PLUG KIT DRAIN - MAGNETIC (1 required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 9 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#5	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 6 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 9 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#6	826134Q	ANODE (2 required per assembly) — Replaces: 826134
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 6 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 5 In Stock.
#7	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#8	401386	NUT (M6) STAINLESS STEEL (1 required per assembly) — Replaces: 8268336, 40144
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#9	42647A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $42.20 Available to Order: Shipping delay up to 10 days.
#10	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#11	79953Q04	SCREW KIT DRAIN (1 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#12	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
#13	85822A10	CONNECTOR ASSEMBLY (L/XL) (1 required per assembly)
		22-85822A10 - Connector Assembly [ More info ] $21.16 4 In Stock.
#13	85822A6	CONNECTOR (XXL) (1 required per assembly)
		22-85822A 6 - Fuel Connector, NLA [ More info ] Unavailable
#14	56762	TIE STRAP @5 (1 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#15	NSS	NOT SOLD SEPARATE PINION GEAR (PART OF 43-828168A2) (1.75:1 - 12/21) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	92721	WASHER @2 (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#17	35921	NUT @5 (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
#18	815921A4	BUSHING ASSY (1 required per assembly)
		23-815921A 4 - Bushing [ More info ] $24.92 2 In Stock.
#19	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#20	36318	O-RING (.799) (2 required per assembly)
		25-36318 - O-ring, (.799) [ More info ] $1.60 10+ In Stock.
		25-8M0214927 - O RING @5 [ More info ] Unavailable
#21	1993716	SCREW (2 required per assembly)
		10-19937 16 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#22	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#23	824145	SHIFT SHAFT (LOWER) (1 required per assembly)
		824145 - Shift Shaft - Lower [ More info ] $92.93 1 In Stock.
#24	8M0140442	DRIVESHAFT (LOWER) (1 required per assembly) — Replaces: 816472
		458M0140442 - Drive Shaft [ More info ] $791.99 Available to Order: Shipping delay up to 10 days.
#25	8M0204723	KEY @2 (1 required per assembly) — Replaces: 43037, 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 2 In Stock.
#26	8M0063267	SHIM SET (AR required per assembly) — Replaces: 42637A1
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#27	8M0146566	BEARING CUP CONE (1 required per assembly) — Replaces: 36387A1
		318M0146566 - Upper Driveshaft Bearing [ More info ] $74.99 $74.83 Available to Order: Shipping delay up to 10 days.
		31-02194 - Bearing Kit 31-36387A 1 [ More info ] $52.49 $41.29 In Stock
#28	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#29	8245191	RETAINER (1 required per assembly) — Replaces: 824519
		824519 1 - Retainer [ More info ] $6.99 1 In Stock.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#30	807929A1	CARRIER ASSY (1 required per assembly) — Replaces: 821759A4
		807929A 1 - Carrier Assembly [ More info ] Unavailable
		18-2354 - Carrier, 821759A4 [ More info ] $36.99 $36.95 10+ In Stock.
		93-02638 - Seal Carrier Assembly Mercury Mariner V6, 807929A 1 [ More info ] $31.52 1 In Stock.
#31	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 90011, 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#32	66302	SEAL OIL (1 required per assembly)
		26-66302 - Seal - Priced Individually [ More info ] $12.99 10+ In Stock.
		18-2056 - Seal, 26-96503 1 [ More info ] $15.52 8 In Stock.
		26-8M0214939 - Carrier Oil Seal, Priced Individually [ More info ] $17.32 2 In Stock.
#33	66302	SEAL OIL (1 required per assembly)
#34	817275A1	HOUSING KIT-W/P (1 required per assembly)
		817275A 1 - Housing for Water Pump [ More info ] $102.99 $101.34 In Stock
		18-3570 - Water Pump Kit 817275A1, A2 [ More info ] $90.99 $85.66 10+ In Stock.
#35	816575A2	SEAL KIT (1 required per assembly)
		26-816575A 2 - Seal Kit [ More info ] $10.89 3 In Stock.
		18-2599 - Seal, 26-816575A 2 [ More info ] $7.72 10+ In Stock.
		26-02106 - Seal, 26-816575A2 [ More info ] $7.49 $6.48 3 In Stock.
#36	430331	GASKET (1 required per assembly)
		27-43033 1 - Face Plate To Cover Gasket [ More info ] $11.09 10+ In Stock.
#37	8172771	GASKET (1 required per assembly) — Replaces: 817277
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 9 In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#38	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#39	43026T2	IMPELLER-W/P (1 required per assembly) — Replaces: 430262
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 6 In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $26.12 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#40	1993716	SCREW (4 required per assembly)
#41	832942A1	COUPLING KIT (1 required per assembly)
		832942A 1 - Coupling Kit [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#42	8M0204645	O RING (1 required per assembly) — Replaces: 21836
		25-8M0204645 - O RING [ More info ] $2.39 5 In Stock.
#43	8M0204654	O RING @10 (1 required per assembly) — Replaces: 35027
		25-8M0204654 - O RING @10 [ More info ] Unavailable
#44	827754A1	EXTENSION KIT DRIVESHAFT (LONG-20 IN.) (SEE NOTE) (1 required per assembly)
		45-827754A 1 - Extension Kit -l [ More info ] $383.99 Available to Order: Shipping delay up to 10 days.
#44	827755A1	EXTENSION KIT DRIVESHAFT (X-LONG-25 IN.) (SEE NOTE) (1 required per assembly)
		45-827755A 1 - Extension Kit-XL [ More info ] Unavailable
#44	826353A1	EXTENSION KIT DRIVESHAFT (XX-LONG-30 IN.) (SEE NOTE) (1 required per assembly)
		45-826353A 1 - Extension Kit [ More info ] $445.64 Available to Order: Shipping delay up to 10 days.
#45	823902	COUPLING (1 required per assembly)
		823902 - Coupling [ More info ] $76.99 Available to Order: Shipping delay up to 10 days.
