Parts for 225 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Bleed System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 225 (DFI) > 0G590000 - 0G760299 - USA > Bleed System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

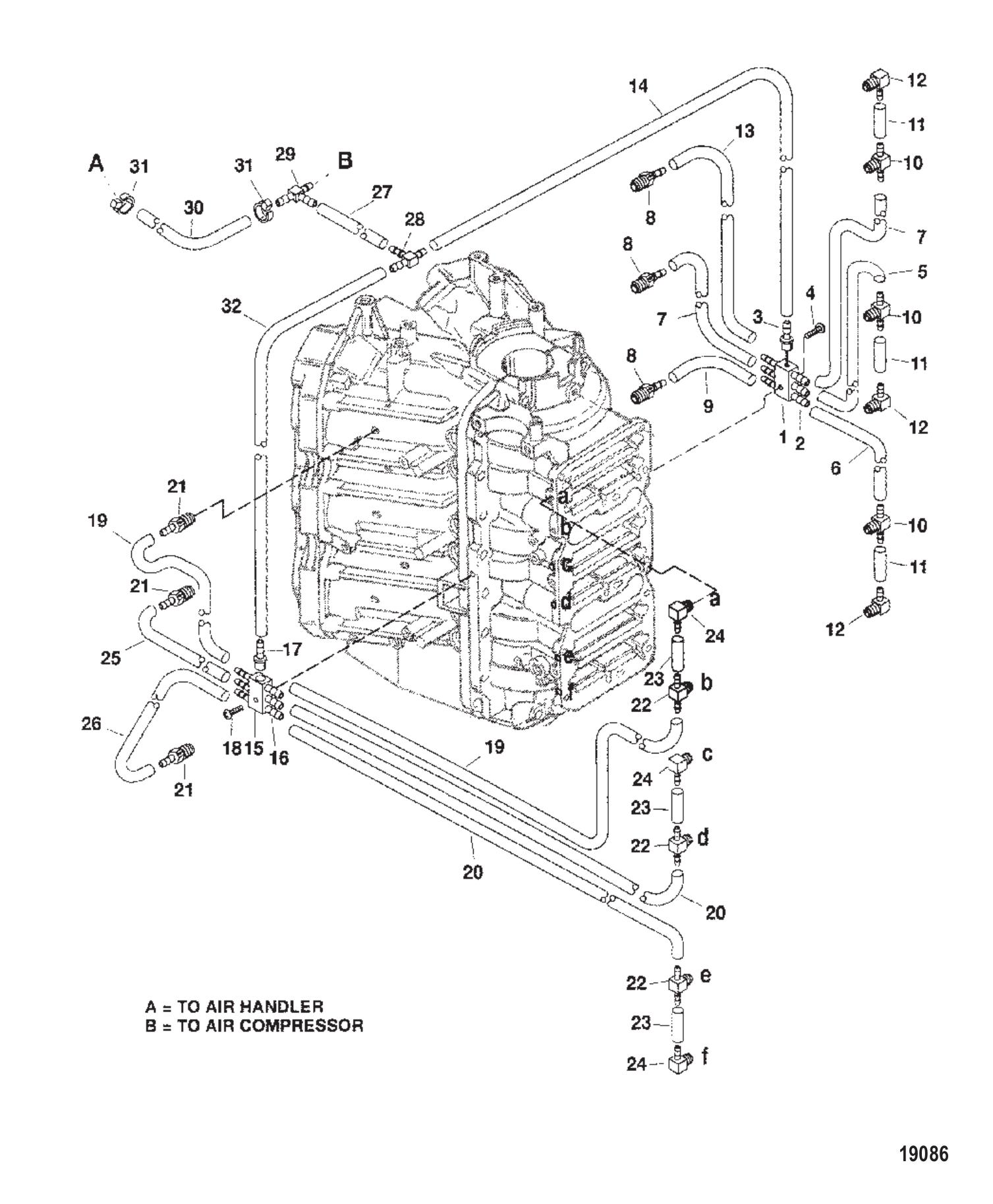

Bleed System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	854198R99	PH 200 DFI -RM (200) (1 required per assembly) — Replaces: 854198A98, 854198A99
		854198R99 - Powerhead 200 Dfi -rm [ More info ] Unavailable
#-	854199A99	PH 200/225 DFI (225) (1 required per assembly) — Replaces: 854199A98
		854199A99 - Powerhead 200/225 Dfi [ More info ] Unavailable
#1	827210A9	MANIFOLD-BLEED PORT (1 required per assembly)
		827210A 9 - Bleed Manifold [ More info ] Unavailable
#2	426233	CHECK VALVE PORT (6 required per assembly) — Replaces: 426231
		21-42623 3 - Check Valve [ More info ] $106.41 3 In Stock.
#3	8M0181450	FITTING PORT (1 required per assembly) — Replaces: 13035, 13035002
		22-8M0181450 - FITTING [ More info ] Unavailable
#4	92051	SCREW PORT (1 required per assembly)
		10-92051 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#5	892024122	TUBING (240.00 INCHES BULK) (5-1/2 IN.) PORT (2 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#6	892024122	TUBING (240.00 INCHES BULK) (7 IN.) PORT (2 required per assembly) — Replaces: 99130122
#7	892024122	TUBING (240.00 INCHES BULK) (6 IN.) PORT (2 required per assembly) — Replaces: 99130122
#8	8245021	CONNECTOR (SHOWN AS REF.13 ON CYLINDER BLOCK) PORT (3 required per assembly)
		22-824502 1 - Connector [ More info ] $8.59 Available to Order: Shipping delay up to 10 days.
#9	892024122	TUBING (240.00 INCHES BULK) (10-1/2 IN.) PORT (1 required per assembly) — Replaces: 99130122
#10	8348041	VALVE-CHECK PORT (3 required per assembly)
		21-834804 1 - Check Valve [ More info ] $112.99 Available to Order: Shipping delay up to 10 days.
#11	892024122	TUBING (240.00 INCHES BULK) (1-3/4 IN.) PORT (3 required per assembly) — Replaces: 99130122
#12	8282182	CHECK VALVE PORT (3 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#13	892024122	TUBING (240.00 INCHES BULK) (4-1/2 IN.) PORT (1 required per assembly) — Replaces: 99130122
#14	9912688	TUBING (36.00 INCHES BULK) (10-1/4 IN.) PORT (1 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 1 In Stock.
#15	827210A9	MANIFOLD-BLEED STARBOARD (1 required per assembly)
#16	426233	CHECK VALVE STARBOARD (6 required per assembly) — Replaces: 426231
#17	8M0181450	FITTING STARBOARD (1 required per assembly) — Replaces: 13035, 13035002
#18	92051	SCREW STARBOARD (1 required per assembly)
#19	892024122	TUBING (240.00 INCHES BULK) (7 IN.) STARBOARD (1 required per assembly) — Replaces: 99130122
#20	892024122	TUBING (240.00 INCHES BULK) (5-1/2 IN.) STARBOARD (1 required per assembly) — Replaces: 99130122
#21	8245021	CONNECTOR (SHOWN AS REF.13 ON CYLINDER BLOCK) STARBOARD (3 required per assembly)
#22	8348041	VALVE-CHECK STARBOARD (3 required per assembly)
#23	892024122	TUBING (240.00 INCHES BULK) (1-3/4 IN.) STARBOARD (3 required per assembly) — Replaces: 99130122
#24	8282182	CHECK VALVE STARBOARD (3 required per assembly)
#25	892024122	TUBING (240.00 INCHES BULK) (4-1/2 IN.) STARBOARD (1 required per assembly) — Replaces: 99130122
#26	892024122	TUBING (240.00 INCHES BULK) (9 IN.) STARBOARD (1 required per assembly) — Replaces: 99130122
#27	9912688	TUBING (36.00 INCHES BULK) (1-1/4 IN.) (1 required per assembly)
#28	13033	FITTING (1 required per assembly)
		22-13033 - Fitting [ More info ] Unavailable
#29	817518	FITTING (1 required per assembly)
		22-817518 - Fitting [ More info ] Unavailable
#30	8M0108355	HOSE (57 INCHES BULK) (1-1/2 IN.) (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 In Stock
#31	816311T	TIE STRAP @100 (2 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#32	9912688	TUBING (36.00 INCHES BULK) (13 IN.) (1 required per assembly)
