Parts for 200XS DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Gear Housing (Drive) Standard / Counter Rotatation-Sportmaster

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200XS DFI (2.5L) > 0T818181 - 1E000796 - USA > Gear Housing (Drive) Standard / Counter Rotatation-Sportmaster

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing (Drive) Standard / Counter Rotatation-Sportmaster

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	89238A3	SEAL KIT (1 required per assembly)
		26-89238A 3 - Seal Kit [ More info ] $165.68 Available to Order: Shipping delay up to 10 days.
#-	881805A01	GASKET SET (1 required per assembly)
		27-881805A01 - Engine Gasket Set [ More info ] $155.49 Available to Order: Shipping delay up to 10 days.
#-	59579	STUD (1 required per assembly) — Replaces: 90415A24
		16-59579 - Stud [ More info ] $8.69 1 In Stock.
#0	840560T33	G CASE-1.87 RH S (STANDARD)(SHORT) (1 required per assembly)
		1687-840560T33 - Gear Housing Assembly [ More info ] Unavailable
#0	840560T34	G CASE-1.87 RH L (STANDARD)(LONG) (1 required per assembly)
		1687-840560T34 - Gear Housing Assembly [ More info ] Unavailable

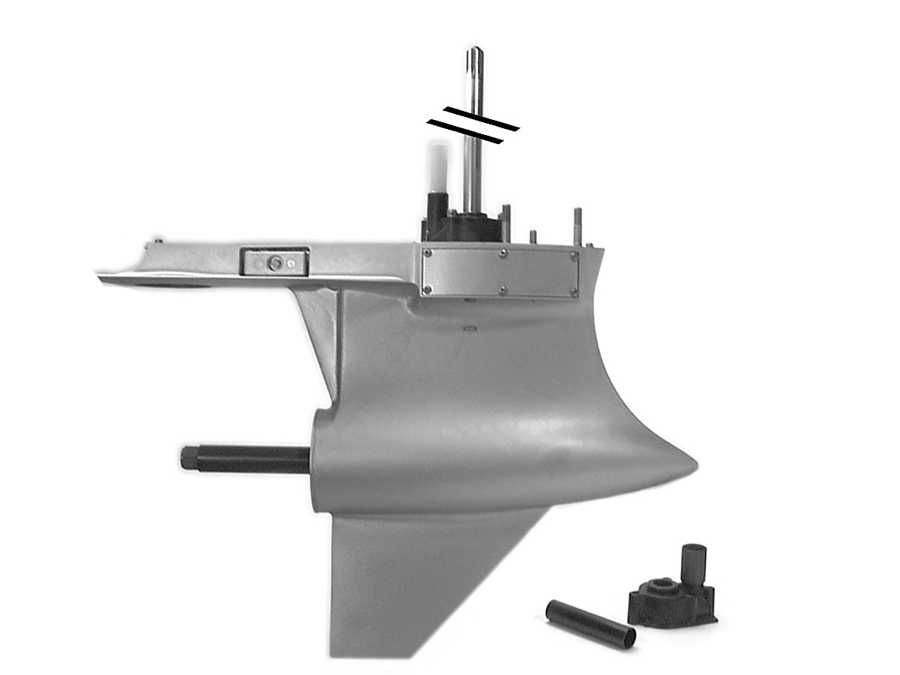

#0	840561T69	G CASE-1.87 LH S (COUNTER ROTATION)(SHORT) (1 required per assembly)
		1687-840561T69 - Gear Housing Assembly [ More info ] Unavailable
#0	840561T70	G.CASE-1.87 LH L (COUNTER ROTATION)(LONG) (1 required per assembly)
		1687-840561T70 - G. Case - 1.87 LH L [ More info ] Unavailable
#1	8M0083306	GEAR HOUSING-SM (Standard-Basic) (1 required per assembly) — Replaces: 849780A2
		16008M0083306 - Gear Housing -SM [ More info ] Unavailable
#1	8M0084203	GEAR HOUSING-SM (Counter Rotation-Basic) (1 required per assembly) — Replaces: 849781A2
		16008M0084203 - Gear Housing -SM [ More info ] Unavailable
#2	8479504	COVER (2 required per assembly)
		847950 4 - Cover [ More info ] $79.70 Available to Order: Shipping delay up to 10 days.
#3	34776	O-RING (2 required per assembly)
		25-34776 - O-Ring [ More info ] $8.56 Available to Order: Shipping delay up to 10 days.
#4	815904	SCREW (#10-32 X .500) (12 required per assembly)
		10-815904 - Screw [ More info ] $2.38 Available to Order: Shipping delay up to 10 days.
#5	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#6	42647A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $42.20 Available to Order: Shipping delay up to 10 days.
#7	8M0039169	FILLER BLOCK (1 required per assembly) — Replaces: 67891
		8M0039169 - Filler Block [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#8	847949	PLUG PIPE (1 required per assembly)
		22-847949 - Diverter Plug [ More info ] $52.12 Available to Order: Shipping delay up to 10 days.
#9	8M0034463	STUD (.312-24 X 3.38) (1 required per assembly) — Replaces: 562972
		16-8M0034463 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#10	306671	STUD (2 required per assembly) — Replaces: 30667
		16306671 - Stud [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#11	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 6 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 5 In Stock.
#12	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#13	401386	NUT (M6) STAINLESS STEEL (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#14	59579	STUD (.437-14/.437-20 X 2.812) (SHORT) (3 required per assembly)
#14	786382	STUD (.437-14/.437-20 X 3.120) (LONG) (1 required per assembly)
		0786382 - L/P 329.26 [ More info ] Unavailable
#14	8M0133358	STUD (.437-14/.437-20 X 2.060) (LONG) (2 required per assembly) — Replaces: 579203
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE PINION GEAR (Part of 43-44104A7 or 43-15845A2) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	92721	WASHER (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#17	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
#18	79953Q04	SCREW KIT DRAIN (1 required per assembly) — Replaces: 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#19	191833	SEAL (1 required per assembly)
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 6 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 9 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#20	789022	SHIFT SHAFT (LOWER) (1 required per assembly)
		78902 2 - Shift Shaft - Lower [ More info ] $86.96 4 In Stock.
#21	77631A2	BUSHING ASSEMBLY (1 required per assembly)
		23-77631A 2 - Bushing Assembly [ More info ] $30.21 4 In Stock.
		18-2155 - Bushing, 23-77631A2 [ More info ] $25.59 10 In Stock.
		23-00516 - Shift Bushing 23-77631A 2 [ More info ] $22.99 $22.10 1 In Stock.
#22	25439	O-RING (.862 X .103) (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#23	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#24	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#25	8M0192233	DRIVESHAFT (SHORT) (1 required per assembly) — Replaces: 848449A4
		458M0192233 - Drive Shaft [ More info ] $1,948.10 1 In Stock.
#25	8M0192234	DRIVESHAFT (LONG) (1 required per assembly) — Replaces: 848449A5
		45-8M0192234 - DRIVESHAFT [ More info ] Unavailable
#26	8M0063268	SHIM SET (1 required per assembly) — Replaces: 38657A1
		15-8M0063268 - Shim Set [ More info ] $31.57 4 In Stock.
#27	8M0146553	BEARING ASSEMBLY CUP/CONE (1 required per assembly) — Replaces: 48939A2
		318M0146553 - Bearing ASSY [ More info ] $27.23 1 In Stock.
#28	NSS	NOT SOLD SEPARATE CUP-ROLLER BEARING (1 required per assembly)
#29	8M0063267	SHIM SET (AR required per assembly) — Replaces: 42637A1
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#30	8M0146566	BEARING ASSEMBLY CUP/CONE (1 required per assembly) — Replaces: 36387A1
		318M0146566 - Upper Driveshaft Bearing [ More info ] $74.99 $74.83 Available to Order: Shipping delay up to 10 days.
		31-02194 - Bearing Kit 31-36387A 1 [ More info ] $52.49 $41.29 In Stock
#31	NSS	NOT SOLD SEPARATE CUP-BEARING (1 required per assembly)
#32	8245191	RETAINER (1 required per assembly)
		824519 1 - Retainer [ More info ] $6.99 1 In Stock.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#33	44292A3	BASE ASSEMBLY WATER PUMP (1 required per assembly)
		46-44292A 3 - Water Pump Base [ More info ] $43.49 $42.72 In Stock
		18-3420 - Water Pump Base 46-44292A3 [ More info ] $35.99 $35.88 6 In Stock.
		46-01844 - Water Pump Base Kit 46-44292A 3 [ More info ] $34.99 $29.28 In Stock
#34	8M0204678	GASKET (1 required per assembly) — Replaces: 426311
		27-8M0204678 - WATER PUMP Gasket [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#35	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 90011, 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#36	89238	SEAL OIL (1 required per assembly)
		26-89238 - Seal [ More info ] $21.19 In Stock
		18-2014 - Seal 26-89238, 26F69430 [ More info ] $18.86 5 In Stock.
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#37	16977	SEAL OIL (1 required per assembly)
		26-16977 - Seal [ More info ] $18.69 In Stock
		18-2026 - Seal, 321453 [ More info ] $15.99 $15.82 10+ In Stock.
		18-2013 - Seal, 26-16977 [ More info ] $15.99 $14.81 2 In Stock.
#38	18051	GASKET (LOWER) (1 required per assembly)
		27-18051 - Lower Water Pump Gasket [ More info ] $7.75 Available to Order: Shipping delay up to 10 days.
#39	858524	GASKET (UPPER) (1 required per assembly)
		27-858524 - Water Pump Base Gasket [ More info ] $4.09 9 In Stock.
		18-2915-9 - Gasket 27-858524 2-Pack [ More info ] $6.14 Available to Order: Shipping delay up to 10 days.
#40	8M0204677	PLATE-FACE (1 required per assembly) — Replaces: 324351
		8M0204677 - Wear Plate [ More info ] $9.29 1 In Stock.
#41	96148A8	WATER PUMP REPAIR KIT (1 required per assembly)
		46-96148A 8 - Water Pump Kit, No Base [ More info ] $71.99 7 In Stock.
		18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $54.29 $54.25 10+ In Stock.
		18-3317 - Mercury Water Pump Kit, With Base 18-3417 [ More info ] $69.61 In Stock
		46-96148T 8 - Water Pump Kit, No Base [ More info ] $83.49 2 In Stock.
		46-00090 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $49.99 $46.62 10+ In Stock.
		46-00048 - Water Pump Kit w/Base, base is OEM 46-44292A3 equivalent [ More info ] $57.99 $51.04 6 In Stock.
		46-00047 - Water Pump Kit with Base 96148A8, uses base matching 46-57234A1 [ More info ] $53.99 $48.17 Available to Order: Shipping delay up to 10 days.
#42	48752T	INSERT (1 required per assembly)
		48752T - Water Pump Insert - Priced Individually [ More info ] $12.39 4 In Stock.
		18-3114 - SS Cup, 48752 [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#43	38970	SEAL (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 5 In Stock.
#44	29804T	SLEEVE (1 required per assembly)
		23-29804T - Sleeve - Priced Individually [ More info ] $8.99 9 In Stock.
		18-3109 - Tube 23-29804 [ More info ] $6.21 1 In Stock.
#45	8M0032834	KEY (1 required per assembly) — Replaces: 56654
		28-8M0032834 - Key - Priced Individually [ More info ] $4.40 10+ In Stock.
		28-8M0214992 - KEY @5 [ More info ] Unavailable
#46	89984T4	IMPELLER (1 required per assembly)
		47-89984T 4 - Impeller [ More info ] $49.49 4 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
		47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ] $20.89 $20.72 10+ In Stock.
#47	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#48	8267119	NUT (.250-28) (2 required per assembly)
		11-826711 9 - Nut [ More info ] $2.59 10+ In Stock.
#49	36001	WASHER (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#50	13436	NUT (1 required per assembly)
		11-13436 - Nut (5/16-24) [ More info ] $3.29 5 In Stock.
#51	96411	SCREW (#14-8 X 2.25) (1 required per assembly)
		10-96411 - Screw [ More info ] $2.00 10+ In Stock.
		10-8M0215009 - SCREW [ More info ] Unavailable
