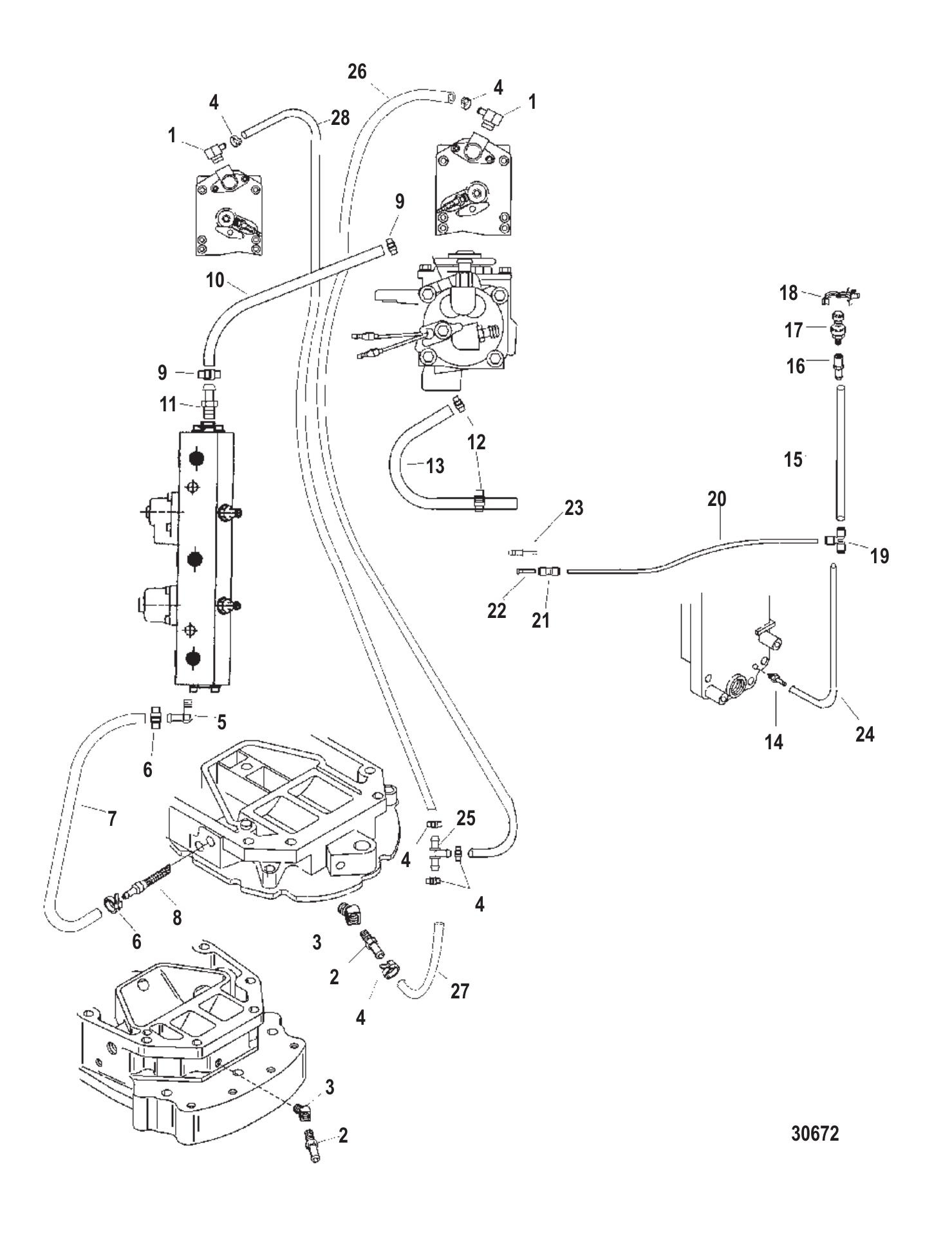

Parts for 200XS DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Water Hoses
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 883201A01 | PH 200 XSDFI 2.5 (1 required per assembly) |
  |
|
61-883201A01 - Powerhead 200 XSDFI 2.5, NLA [ More info ] Unavailable |
| #1 | 687271 | FITTING (2 required per assembly) |
  |
|
22-68727 1 - Fitting [ More info ]
|
| #2 | 89772 | CONNECTOR @2 (1 required per assembly) |
  |
|
22-89772 - Connector - Priced Individually [ More info ]
|
| #3 | 8M0123050 | FITTING (1 required per assembly) — Replaces: 29085, 8M0109010 |
  |
|
22-8M0123050 - Fitting [ More info ]
|
| #4 | 816311T | TIE STRAP @100 (6 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #5 | 996642 | ELBOW (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #6 | 816311T | TIE STRAP @100 (2 required per assembly) |
| #7 | 85833939 | HOSE (17.00 INCHES BULK) (CUT TO 7 IN.) (1 required per assembly) — Replaces: 85833935 |
  |
|
32-858339 39 - Hose -17 Inch [ More info ]
|
| #8 | 8348084 | STRAINER (1 required per assembly) |
  |
|
35-834808 4 - Strainer [ More info ]
|
| #9 | 816311T | TIE STRAP @100 (2 required per assembly) |
| #10 | 85833939 | HOSE (17.00 INCHES BULK) (CUT TO 4-1/2 IN.) (1 required per assembly) — Replaces: 85833935 |
| #11 | 291112 | FITTING (1 required per assembly) |
  |
|
0291112 - Exhaust Gasket (291112) [ More info ] Unavailable |
| #12 | 816311T | TIE STRAP @100 (2 required per assembly) |
| #13 | 83476463 | TUBING (32.00 INCHES BULK) (CUT TO 18-1/2 IN.) (1 required per assembly) |
  |
|
32-834764 63 - Molded Hose [ More info ]
|
| #14 | 881866 | FITTING (1 required per assembly) — Replaces: 859432 |
  |
|
22-881866 - Fitting [ More info ]
|
| #15 | 85978571 | TUBING (52.00 INCHES BULK) (CUT TO 15 IN.)(GRAY) (1 required per assembly) — Replaces: 85978568 |
  |
|
32-859785 71 - Hose - 52 Inch [ More info ]
|
| #16 | 8M0207782 | SPACER (1 required per assembly) — Replaces: 859431, 892403 |
  |
|
22-8M0207782 - SPACER [ More info ] Unavailable |
| #17 | 881879A7 | SENSOR KIT (0-50 PSI) (TAN) (1 required per assembly) |
  |
|
881879A 7 - Sensor Kit [ More info ] Unavailable |
| #18 | 858954 | CLIP (1 required per assembly) |
  |
|
54-858954 - Clip [ More info ]
|
| #19 | 875207 | FITTING (1 required per assembly) |
  |
|
22-875207 - Fitting [ More info ]
|
| #20 | 85978571 | TUBING (52.00 INCHES BULK) (CUT TO 44 IN.)(GRAY) (1 required per assembly) — Replaces: 85978568 |
| #21 | 859747 | FITTING (1 required per assembly) |
  |
|
22-859747 - Fitting [ More info ]
|
  |
|
228M0214971 - Fitting [ More info ]
|
| #22 | 859732 | FITTING (1 required per assembly) |
  |
|
22-859732 - Fitting [ More info ]
|
| #23 | 859731 | FITTING (NON DIGITAL APPLICATION) (1 required per assembly) |
  |
|
22-859731 - Fitting [ More info ]
|
  |
|
22-8M0214970 - FITTING [ More info ] Unavailable |
| #24 | 85978571 | TUBING (52.00 INCHES BULK) (CUT TO 5 IN.)(GRAY) (1 required per assembly) — Replaces: 85978568 |
| #25 | 858459 | FITTING-TEE (1 required per assembly) |
  |
|
22-858459 - Fitting -tee [ More info ]
|
| #26 | 77653101 | HOSE (48.00 INCHES BULK) (CUT TO 23-1/2 IN.) (1 required per assembly) |
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #27 | 8M0114859 | HOSE (LONG) (1 required per assembly) — Replaces: 8276021 |
  |
|
328M0114859 - Hose [ More info ]
|
| #27 | 77653101 | HOSE (48.00 INCHES BULK) (CUT TO 5 IN.) (SHORT) (1 required per assembly) |
| #28 | 77653101 | HOSE (48.00 INCHES BULK) (CUT TO 17-1/2 IN.) (1 required per assembly) |
