Parts for 200XS DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Swivel Bracket (Short)

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200XS DFI (2.5L) > 0T235000 - 0T818180 - USA > Swivel Bracket (Short)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Swivel Bracket (Short)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	818810A16	SWIVEL BRACKET [0T651945] & Up (1 required per assembly) — Replaces: 818810T14, 818810A14
		3521-818810A16 - Swivel Bracket [ More info ] Unavailable
		3521-818810T16 - Swivel Bracket [ More info ] Unavailable
		14008M0145740 - Swivel Bracket [ More info ] $2,813.51 Available to Order: Shipping delay up to 10 days.
#1	818810A14	SWIVEL BRACKET [0T651944] & Below (1 required per assembly) — Replaces: 818810A8, 818810T14
		3521-818810A14 - Swivel Bracket [ More info ] Unavailable
#2	847729	SEAL OIL (2 required per assembly)
		26-847729 - Seal [ More info ] $23.69 Available to Order: Shipping delay up to 10 days.
#3	847726	BEARING (2 required per assembly)
		23-847726 - Bearing [ More info ] $46.51 1 In Stock.
#4	8M0169589	FITTING GREASE (4 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#5	847728	BEARING (2 required per assembly)
		23-847728 - Bearing [ More info ] $20.64 Available to Order: Shipping delay up to 10 days.
#6	82203522	BEARING (1.375 IN.)(PORT) [0T641945] & Up (1 required per assembly)
		23-822035 22 - Bearing - 1.375 Inch [ More info ] $36.13 Available to Order: Shipping delay up to 10 days.
#6	82203516	BEARING (1 IN.)(STARBOARD) [0T641945] & Up (1 required per assembly)
		23-822035 16 - Bearing - 1.00 Inch [ More info ] $36.13 Available to Order: Shipping delay up to 10 days.
#6	82203524	BEARING (1-1/2 IN.) [0T641944] & Below (2 required per assembly)
		23-822035 24 - Sleeve [ More info ] $36.08 Available to Order: Shipping delay up to 10 days.
#7	82203540	BEARING (2-1/2 IN.) (2 required per assembly)
		23-822035 40 - Sleeve [ More info ] $69.21 Available to Order: Shipping delay up to 10 days.
#8	85023	SEAL (2 required per assembly)
		26-85023 - Seal [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#9	87161	WASHER (2 required per assembly)
		12-87161 - Washer, Tilt Lock Lever [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#10	48171	O RING @5 (2 required per assembly)
		25-48171 - O-Ring - Priced Individually [ More info ] $1.70 8 In Stock.
		18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ] $5.64 Available to Order: Shipping delay up to 10 days.
#11	85030A2	LEVER ASSY-PORT (PORT) (1 required per assembly)
		85030A 2 - Lever Assembly - Port [ More info ] $22.99 $19.47 10+ In Stock.
#11	85028A2	LEVER ASSY-STBD (STARBOARD) (1 required per assembly)
		85028A 2 - Lever Assembly - Stbd, NLA [ More info ] $64.66 10 In Stock.
#12	86600	BUSHING (1 required per assembly)
		23-86600 - Bushing [ More info ] $60.16 10+ In Stock.
#13	85367	SPRING (1 required per assembly)
		24-85367 - Spring [ More info ] $14.52 $12.30 10 In Stock.
#14	41052	PLUNGER (1 required per assembly)
		41052 - Plunger [ More info ] $3.99 $3.37 10+ In Stock.
#15	88876	STUD (1 required per assembly)
		16-88876 - Stud [ More info ] $20.17 $17.08 4 In Stock.
#16	86603	KNOB (1 required per assembly)
		86603 - Knob [ More info ] $13.50 $11.44 10+ In Stock.
#17	864751	COUPLING (1 required per assembly)
		86475 1 - Coupling [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#18	69745	PIN-ROLL (2 required per assembly)
		17-69745 - Pin, Roll [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#19	88049	SPRING (1 required per assembly)
		24-88049 - Spring, Tension - Coupling [ More info ] $15.59 10+ In Stock.
#20	93861	PIN-COTTER (1 required per assembly)
		18-93861 - Cotter Pin [ More info ] $1.10 8 In Stock.
#21	78854	WASHER-WAVE (1 required per assembly)
		13-78854 - Wave Washer [ More info ] $13.89 3 In Stock.

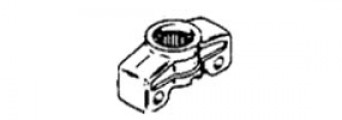

#22	86580F4	BOTTOM YOKE BLACK (1 required per assembly)
		86580F 4 - Bottom Yoke Black [ More info ] Unavailable
#23	848125	RING-RETAINING (2 required per assembly)
		53-848125 - Ring - Retaining [ More info ] $24.56 Available to Order: Shipping delay up to 10 days.
#24	8M0028057	PIN-SWIVEL (1 required per assembly) — Replaces: 840787T1, 8407871
		17-8M0028057 - PIN-SWIVEL [ More info ] Unavailable
		178M0056723 - Swivel Pin [ More info ] Unavailable
		17-8M0192243 - PIN-SWIVEL [ More info ] Unavailable
#25	92876A12	LINK ROD KIT (1 required per assembly) — Replaces: 92876A10
		92876A12 - Link Rod Assembly [ More info ] Unavailable
#26	849838	SCREW (1 required per assembly)
		10-849838 - Screw [ More info ] $22.61 6 In Stock.
#27	8M0204726	NUT-BRASS @3 (2 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#28	37828	WASHER (2 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#29	132121	SCREW (2 required per assembly)
		10-13212 1 - Screw [ More info ] $29.69 Available to Order: Shipping delay up to 10 days.
#30	816056	WASHER (2 required per assembly)
		12-816056 - Washer [ More info ] $5.20 Available to Order: Shipping delay up to 10 days.
#31	841198A1	TRIM SENSOR (1 required per assembly)
		841198A 1 - Trim Sensor [ More info ] $323.85 Available to Order: Shipping delay up to 10 days.
#32	852453	SCREW (2 required per assembly)
		10-852453 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
