Parts for 200XS DFI (2.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Hoses

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200XS DFI (2.5L) > 0T235000 - 0T818180 - USA > Fuel Hoses

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

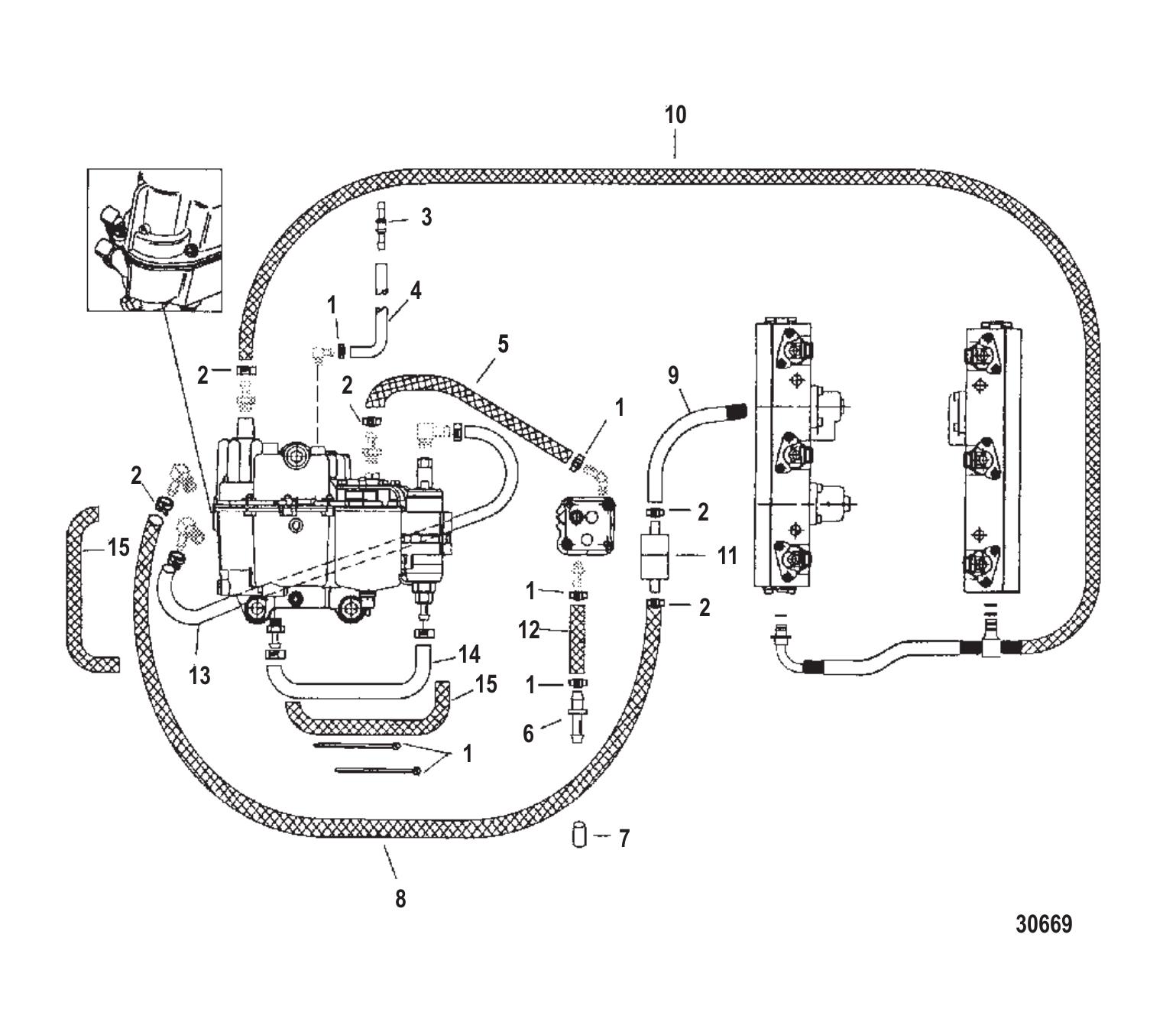

Fuel Hoses

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#2	856880	CLAMP @5 (5 required per assembly)
		54-856880 - Clamp [ More info ] $4.10 10+ In Stock.
		54-8M0214964 - CLAMP @5 [ More info ] Unavailable
#3	858955	CONNECTOR (1 required per assembly)
		22-858955 - Connector [ More info ] $3.69 2 In Stock.
#4	8M0108355	HOSE (57 INCHES BULK) (CUT TO 7-1/2 IN.) (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 In Stock
#5	8M0064784	HOSE,MOLDED,PULSE (1 required per assembly) — Replaces: 856822A1, 897972
		328M0064784 - Hose, Molded, Pulse [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#6	822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#7	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#8	8M0062344	HOSE ASSY (1 required per assembly) — Replaces: 858757A1
		328M0062344 - Hose Assembly [ More info ] $62.49 Available to Order: Shipping delay up to 10 days.
#9	8M6005210	HOSE (1 required per assembly) — Replaces: 804822, 8M6001914
		8M6005210 - Hose [ More info ] $276.99 Available to Order: Shipping delay up to 10 days.
#10	8M6005209	HOSE ASSY (INCLUDES ORINGS) (1 required per assembly) — Replaces: 8048211, 8M6001755
		8M6005209 - Hose [ More info ] Unavailable
		32-8M0188533 - HOSE FUEL INLET [ More info ] Unavailable
#11	8557611	VALVE-CHECK (1 required per assembly)
		21-855761 1 - Check Valve [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#12	8M0043979	HOSE/SLEEVE ASSY (1 required per assembly) — Replaces: 856822A2
		328M0043979 - Hose/Sleeve Assembly [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#13	8M0064634	HOSE (1 required per assembly) — Replaces: 85677870
		328M0064634 - Hose [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#14	8M0064635	HOSE (1 required per assembly) — Replaces: 85677887
		328M0064635 - Hose [ More info ] $62.49 Available to Order: Shipping delay up to 10 days.
#15	85686953	SLEEVE-27 INCH (2 required per assembly)
		23-856869 53 - Sleeve-27 INCH [ More info ] Unavailable
