Parts for 200 Pro XS (DFI) 3.0L 2-Stroke DFI Mercury Optimax Outboard Motor Dual Cable Attaching Kit

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200 Pro XS (DFI) 3.0L > 1B504989 - 1B912785 - USA > Dual Cable Attaching Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

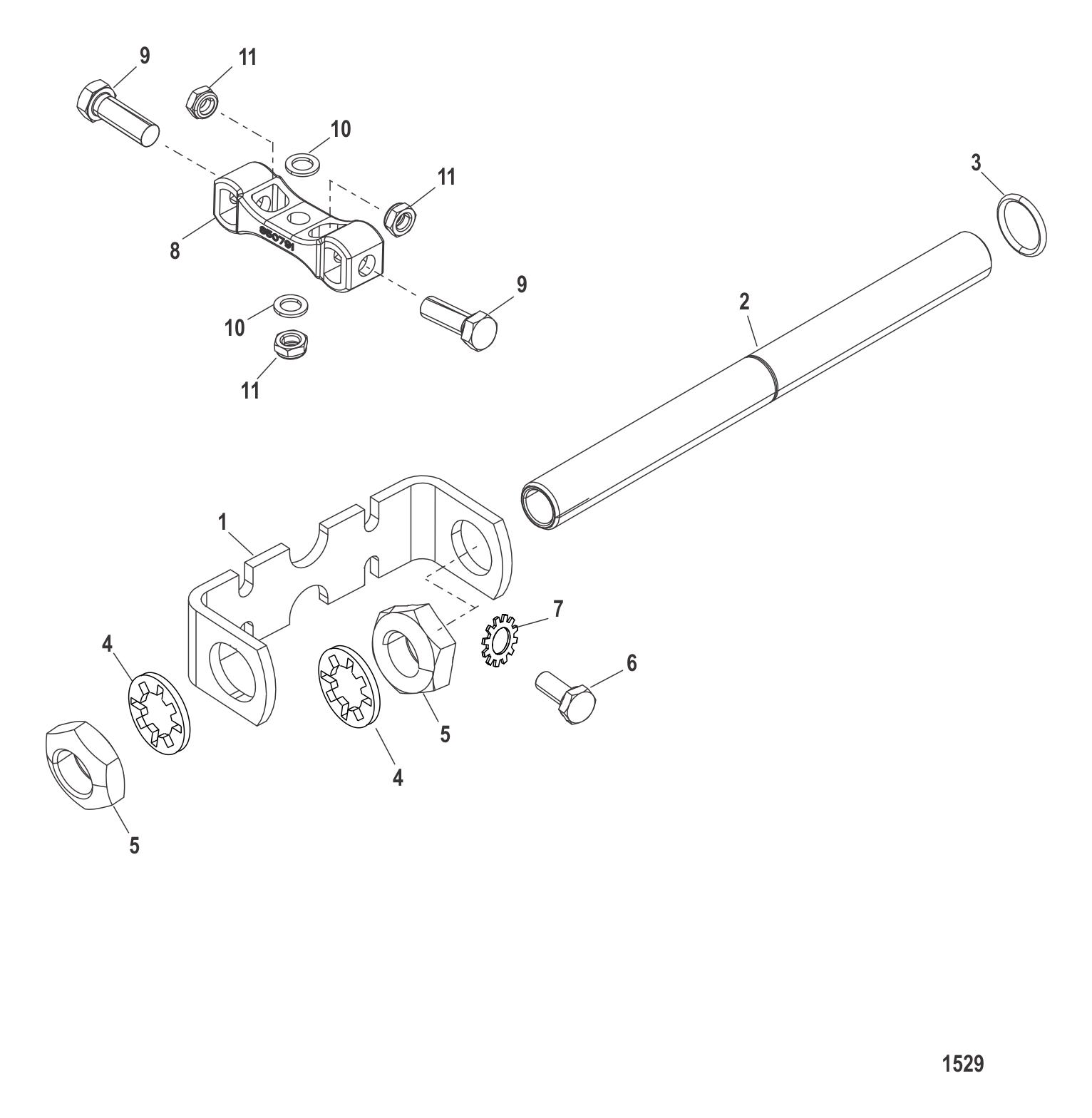

Dual Cable Attaching Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	92876A8	ATTACHING KT-DUAL (1 required per assembly)
		92876A 8 - Attaching Kit - Single Eng [ More info ] $156.72 1 In Stock.
#1	41055A1	BRACKET ASSEMBLY (1 required per assembly)
		41055A 1 - Mount Kit [ More info ] $26.64 4 In Stock.
#2	715651	TUBE STEERING CABLE (1 required per assembly)
		71565 1 - Tube [ More info ] $64.75 1 In Stock.
#3	48462	O-RING (.614 X .070) (1 required per assembly)
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#4	821203	LOCKWASHER (2 required per assembly)
		13-821203 - LockWasher [ More info ] $4.85 1 In Stock.
#5	8M0041651	NUT (.875-14) (2 required per assembly)
		11-8M0041651 - Nut - Priced Individually [ More info ] $15.89 2 In Stock.
#6	38601	SCREW (.250-28 X 1.250) (4 required per assembly)
		10-38601 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#7	78968	LOCKWASHER INTERNAL (.250) (4 required per assembly)
		13-78968 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#8	850791T	COUPLER (1 required per assembly)
		850791T - Coupling [ More info ] $70.48 Available to Order: Shipping delay up to 10 days.
#9	73732	SCREW (.375-24 X 1.120) (2 required per assembly)
		10-73732 - Screw [ More info ] $3.11 10+ In Stock.
#10	37828	WASHER (.390 X .625 X .062) STAINLESS STEEL (2 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#11	8M0204726	NUT-BRASS @3 (3 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
