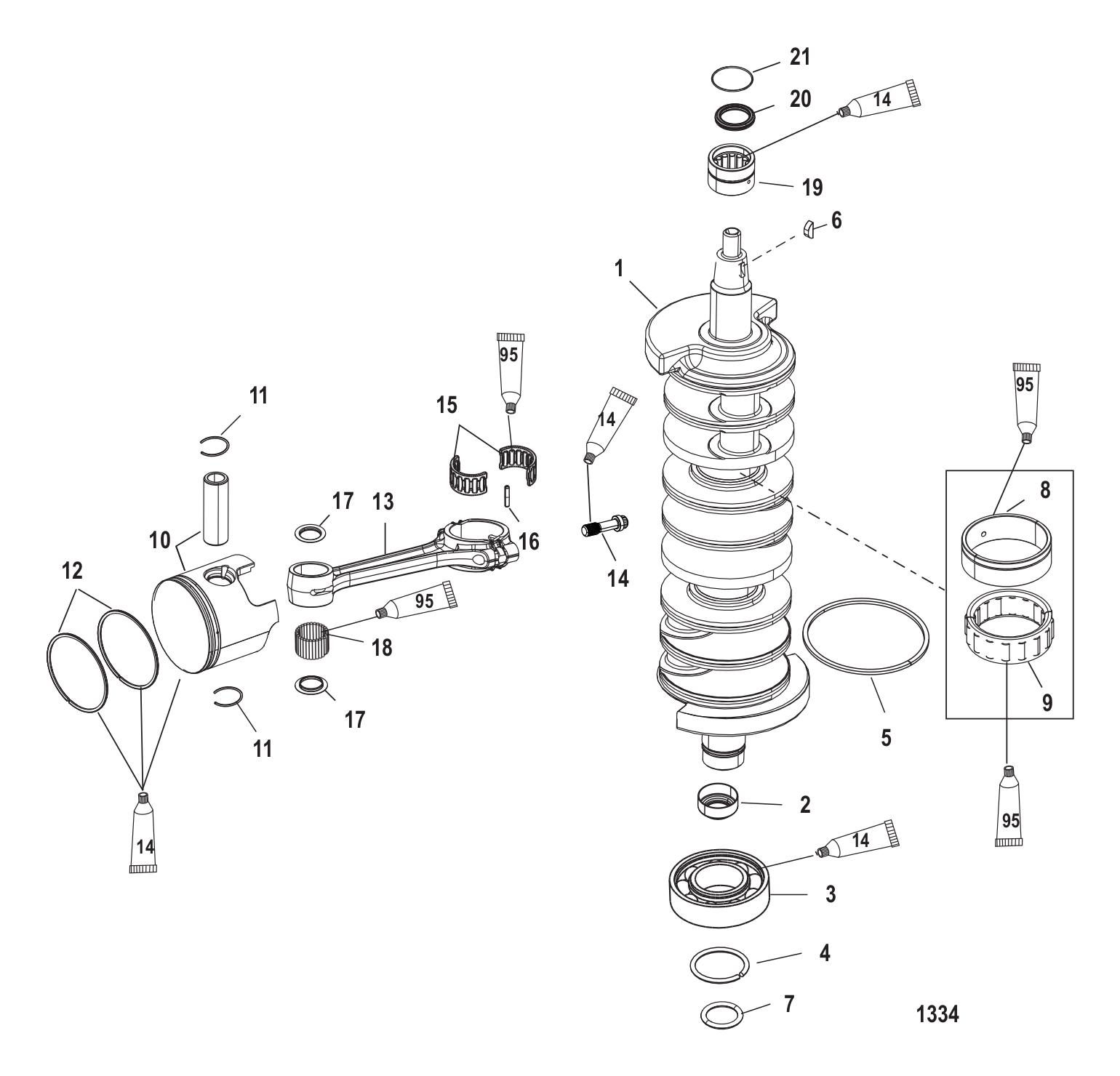

Crankshaft, Pistons & Connecting Rods 200 / 225 / 200 Pro XS

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	832934A00	GASKET SET (1 required per assembly)
		27-832934A00 - Powerhead Gasket Set [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#-	854198A07	PH 200DFI 3L 200/200 Pro XS (1 required per assembly)
		854198A07 - Powerhead 200DFI 3L [ More info ] Unavailable
#-	877869A07	PH 225DFI 3L 225 (1 required per assembly)
		877869A07 - Powerhead 225DFI 3L [ More info ] Unavailable
#1	9784A11	CRANKSHAFT ASSY (1 required per assembly)
		482-9784A11 - CrankShaft Assembly [ More info ] Unavailable
#2	830882	WEAR SLEEVE (1 required per assembly)
		830882 - Wear Sleeve [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#3	67923T	BEARING BALL LOWER (1 required per assembly)
		30-67923T - Ball Bearing [ More info ] $69.49 Available to Order: Shipping delay up to 10 days.
#4	67446	RING (1 required per assembly)
		53-67446 - Ring - Retaining [ More info ] $3.69 4 In Stock.
#5	843198T01	RING SEAL (7 required per assembly) — Replaces: 843198001
		39-843198T01 - Seal Ring [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#6	91800	KEY WOODRUFF (1 required per assembly)
		28-91800 - Key - Priced Individually [ More info ] $3.05 6 In Stock.
#7	35126	O-RING (.859 X .139) (1 required per assembly)
		25-35126 - O-ring, (.859 X .139) [ More info ] $2.99 10+ In Stock.
#8	88270A02	BEARING/RACE KIT (2 required per assembly)
		31-88270A02 - Bearing/Race Kit [ More info ] $178.99 Available to Order: Shipping delay up to 10 days.
#9	NSS	NOT SOLD SEPARATE NEEDLE ROLLER (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#10	881055T10	PISTON ASSY-STBD (3 required per assembly)
		2720-881055T10 - Piston Assembly - Stbd [ More info ] $230.49 Available to Order: Shipping delay up to 10 days.
#10	889640A02	PISTON ASSY STBD Starboard - .015 Oversize (AR required per assembly)
		2720-889640A02 - Piston Assembly Stbd [ More info ] $227.49 Available to Order: Shipping delay up to 10 days.
#10	889642A02	PISTON ASSY STBD Starboard - .030 Oversize (AR required per assembly)
		2720-889642A02 - Piston Assembly Stbd [ More info ] $204.99 Available to Order: Shipping delay up to 10 days.
#10	881054T10	PISTON ASSY-PORT (3 required per assembly)
		2720-881054T10 - Piston Assembly - Port [ More info ] $230.49 Available to Order: Shipping delay up to 10 days.
#10	889639A02	PISTON ASSY PORT Port - .015 Oversize (AR required per assembly)
		2720-889639A02 - Piston Assembly Port [ More info ] $227.49 Available to Order: Shipping delay up to 10 days.
#10	889641A02	PISTON ASSY PORT Port - .030 Oversize (AR required per assembly)
		2720-889641A02 - Piston Assembly Port [ More info ] $222.49 Available to Order: Shipping delay up to 10 days.
#11	841202	RING (12 required per assembly)
		40-841202 - Lock Ring [ More info ] $2.99 $2.40 5 In Stock.
#12	827179A12	RING SET PISTON Standard (1 required per assembly)
		39-827179A12 - Rings - Standard [ More info ] $314.99 Available to Order: Shipping delay up to 10 days.
#12	875252A12	PISTON RING SET .015 Oversize (1 required per assembly)
		39-875252A12 - Piston Rings [ More info ] $471.49 1 In Stock.
#12	875257A12	PISTON RING SET .030 Oversize (1 required per assembly)
		39-875257A12 - Piston Rings [ More info ] $499.99 Available to Order: Shipping delay up to 10 days.
#13	8M0125869	CONN ROD KIT 200/225 DFI (6 required per assembly) — Replaces: 822373A09
		6008M0125869 - Connecting Rod Kit [ More info ] $641.99 Available to Order: Shipping delay up to 10 days.
#13	879148T74	CON ROD ASY 200 ProXS (6 required per assembly)
		647-879148T74 - Connecting Rod Assembly [ More info ] $533.99 Available to Order: Shipping delay up to 10 days.
#14	94320	SCREW (.375-24 X 1.250) (12 required per assembly)
		10-94320 - Screw [ More info ] $13.39 $5.90 10+ In Stock.
#15	844338A01	BEARING ASSEMBLY (6 required per assembly) — Replaces: 43012A04
		31-844338A01 - Bearing Kit [ More info ] $102.49 1 In Stock.
		CAGE BEARING [ More info ] $106.99 $106.58 Available to Order: Shipping delay up to 10 days.
#16	NSS	NOT SOLD SEPARATE NEEDLE ROLLER BEARING (96 required per assembly)
#17	88263	THRUST WASHER (12 required per assembly)
		12-88263 - Washer, Needle Locating [ More info ] $13.99 $7.84 10+ In Stock.
#18	8M0204715	NEEDLES-BRG @102 (204 required per assembly) — Replaces: 88258001
		29-8M0204715 - NEEDLES-BRG @102 [ More info ] Unavailable
#19	816773A2	BEARING ASSEMBLY UPPER (1 required per assembly)
		31-816773A 2 - Main Bearing - Upper [ More info ] $282.99 Available to Order: Shipping delay up to 10 days.
#20	859093	SEAL (1 required per assembly)
		26-859093 - Seal [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#21	823683	O RING (1 required per assembly)
		25-823683 - O-ring, (1.989 X .070) [ More info ] $3.19 10 In Stock.
